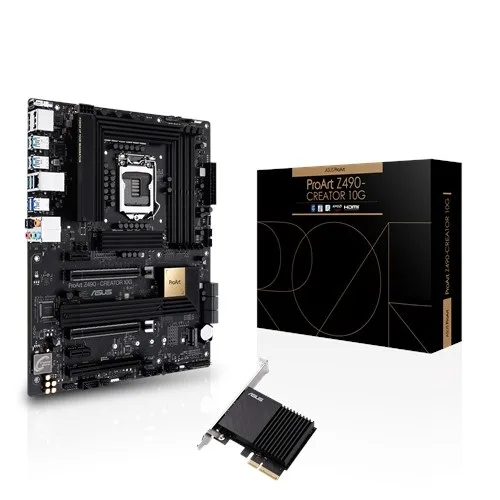

Asus PROART Z490-CREATOR 10G Intel 10th Gen ATX Motherboard

  • Brand: Asus
  • Product Code: Asus PROART Z490-CREATOR
  • Availability: Out of Stock
  • Updated:
৳32,500
Out of Stock

One email when this product is in stock again. Nothing else.

0 reviews Write a review

Share on FacebookSend in MessengerShare on TelegramShare on X (Twitter)Share by email
Unisoft ERP Accounting Software – Free Smartphone Offer Unisoft ERP Accounting Software – Free Smartphone Offer

Specification

BASIC INFORMATION
Form FactorATX Form Factor: 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
Supported CPUIntel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
ChipsetIntel Z490
Memory128 GB
Slots4 x DDR4 DIMM
AudioRealtek ALC S1220A 8-Channel High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking, up to 24-Bit/192kHz playback - High quality 120 dB SNR stereo playback output and SNR recording input Audio Feature : - Optical S/PDIF out port(s) at back panel - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors - Audio Cover - Unique de-pop circuit
BIOS128 Mb Flash ROM, UEFI AMI BIOS
Expansion Slots
M.2 SocketTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Z490 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
PCIIntel® 10th Gen Processors 2 x PCIe 3.0 x16 (x16 or dual x8) Intel® Z490 Chipset 1 x PCIe 3.0 x16 (x4 mode) 2 x PCIe 3.0 x1
Graphics Specifications
GraphicsIntegrated Graphics Processor 1 x DisplayPort 1.4 1 x HDMI 1.4b Supports AMD 3-Way CrossFireX Technology
Memory Specifications
Supported Memory4800(O.C.)/ 4600(O.C)/ 500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem II
TypeDual Channel Memory Architecture
PORTS, CONNECTORS & SLOTS
Display Port (s)1 x DisplayPort 1.4
HDMI1 x HDMI 1.4b
LAN Port (s)Intel I225-V 2.5Gb Ethernet
Supported StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Z490 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane Memory Ready
USB (s)Intel Thunderbolt 3 Controller : 2 x USB 3.2 Gen 2 port(s) (USB Type-C) Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 2 port(s)(4 x Type-A) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) Front USB Port ( Total 7 ) 1 x USB 3.1 Gen 1 port(s)(1 x USB Type-C) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)
Internal I/O Connectors1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 1 USB 3.2 Gen 1 port(s) (20-pin, Type-C) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Chassis intrusion header is inbuilt) x With flexkey function 1 x Thermal sensor connector(s) 1 x CPU OV 1 x Clear CMOS jumper(s) 1 x COM port header
WARRANTY
Manufacturing Warranty03 Years

Description

Unleash Your Creativity with the Asus PROART Z490-CREATOR 10G Motherboard

The Asus PROART Z490-CREATOR 10G Intel 10th Gen ATX Motherboard is designed for professionals and creative enthusiasts who demand the best in performance and reliability. With its advanced features and robust build quality, this motherboard is perfect for high-end systems used in graphic design, video editing, and 3D rendering.

Key Benefits: The PROART Z490-CREATOR 10G supports Intel's latest 10th generation processors, ensuring top-notch processing speeds and efficiency. Its dual Thunderbolt 3 ports allow for ultra-fast data transfer and connectivity, essential for handling large files and multiple peripherals. Enhanced audio capabilities and a comprehensive cooling solution ensure that your system runs smoothly under heavy workloads.

With extensive compatibility and a user-friendly BIOS, setting up your workstation is a breeze. The onboard 10 Gb Ethernet provides lightning-fast network speeds, making it ideal for content creators who work with large files and require reliable internet connectivity.
