- Stock: Out Of Stock
- Brand: Asus
- Model: ROG CROSSHAIR X670E HERO
- MPN: 35589
| BASIC INFORMATION | |
| Audio Features | 5 x Gold-plated audio jacks |
| Raid controller | AMD RAID Xpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10 |
| SpecialFeatures | Extreme OC Kit - FlexKey button - ReTry button - Start button Extreme Engine Digi+ - 10K Black Metallic Capacitors - MicroFine Alloy Choke ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support - Support: up to 60W charging - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS To support 60W, please install the power cable to 6-pin PCIe power connector or can only support 27W |
| Chipset | AMD X670 |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 Audio CODEC - Supports: Jack-detection, - Supports up to 24-Bit/192 kHz playback Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - ESS ES9218 QUAD DAC - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | Supports 5 x M.2 slots |
| PCI | AMD Ryzen 7000 Series Desktop Processors 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 mode(s) When the PCIe 5.0 M.2 card is installed on the PCIEX16_2 slot, PCIEX16_1 will run x8 only. AMD Ryzen 8700/8600 Series Desktop Processors 2 x PCIe 4.0 x16 slots (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled) AMD Ryzen 8500/8300 Series Desktop Processors 2 x PCIe 4.0 x16 slots (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled) AMD X670 Chipset 1 x PCIe 4.0 x1 slots |
| Graphics Specifications | |
| Graphics | 1 x HDMI port 2 xUSB4 ports support USB Type-C display outputs |
| Memory Specifications | |
| Maximum Memory | 192GB |
| Slots | 4 DIMMs |
| Supported Memory | 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/ 5800(OC)/5600(OC)/5400(OC)/5200/5000/4800, ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1x HDMI |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 6-pinPCIe Power connector Storage related 4 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Alteration Mode Switch 1 x Aura RGB header 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x ReTry button 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Supported Storage | Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports AMD Ryzen 8000 / 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 - AMD Ryzen 7000 Series Desktop Processors support PCIe 5.0 x4 mode - AMD Ryzen 8000 Series Desktop Processors support PCIe 4.0 x4 mode M.2_2 slot (Key M), type 2242/2260/2280 - Only AMD Ryzen 7000 Series Desktop Processors support PCIe 5.0 x4 mode - AMD Ryzen 8000 Series Desktop Processors support PCIe 4.0 x2 mode PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) - Only AMD Ryzen 7000 Series Desktop Processors support PCIe 5.0 x4 mode - AMD Ryzen 8000 Series Desktop Processors support PCIe 4.0 x4 mode |
| USB (s) | Rear USB (Total 12 ports) 2 x USB4 ports with Intel JHL8540 USB4 controller (2 x USB Type-C) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C) Front USB (Total 11 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 60W PD/QC4+) 2 x USB 3.2 Gen 1 headers) support additional 4 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports |
| Wireless Communication module | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.3 |
| Special | |
| Bundled Software | ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS Sound Unbound - BullGuard or equivalent internet security (1-year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - Aura Creator - Aura Sync - Fan Xpert 4 with AI Cooling II - Power Saving - Polymo Lighting - Two-Way AI Noise Cancellation AI Suite 3 TPU DIGI+ Power Control Turbo app PC Cleaner MyAsus WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |

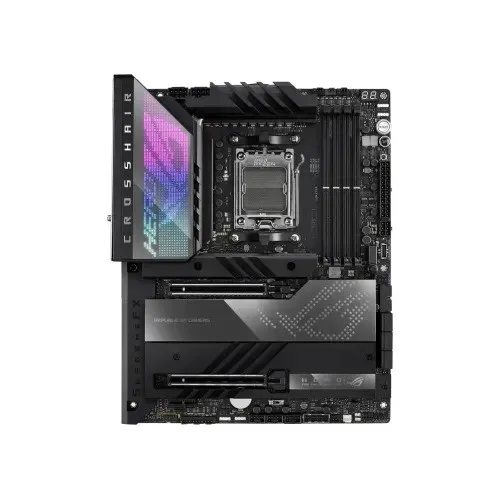

The ASUS ROG CROSSHAIR X670E HERO DDR5 motherboard is a premium solution for gamers, content creators, and enthusiasts who demand nothing less than top-tier performance and cutting-edge features. Designed for AMD’s Ryzen 7000 series processors with the AM5 socket, this motherboard offers exceptional support for DDR5 memory, PCIe 5.0, and blazing-fast storage options. With advanced power delivery, robust connectivity, and ROG’s signature aesthetics, the X670E HERO is built to unlock the full potential of your high-performance setup. Whether you're overclocking, pushing the limits of your GPU, or working on demanding creative projects, this motherboard ensures unrivaled performance and reliability.
Key Features:
- AMD Ryzen 7000 Series Support (AM5 Socket)
- DDR5 Memory Support (up to 6400MHz OC)
- PCIe 5.0 Support for next-gen GPUs and storage devices
- 12+2 power stages for stable power delivery
- Dual M.2 slots with heatsinks for ultra-fast storage
- Wi-Fi 6E and 10Gb Ethernet for exceptional networking
- SupremeFX Hi-Fi audio for immersive sound
- Comprehensive I/O connectivity with USB 4.0 and Thunderbolt 4 support
- Enhanced cooling options with robust heatsinks and thermal armor
People Also Ask (PAA) Section
What are the key features of the ASUS ROG CROSSHAIR X670E HERO motherboard?
- The ASUS ROG CROSSHAIR X670E HERO features support for AMD Ryzen 7000 series processors (AM5 socket), DDR5 memory up to 6400MHz (OC), PCIe 5.0 for high-speed GPUs and storage devices, and robust power delivery with 12+2 power stages. It also offers Wi-Fi 6E, 10Gb Ethernet, dual M.2 slots, SupremeFX Hi-Fi audio, and USB 4.0/Thunderbolt 4 support.
Is the ASUS ROG CROSSHAIR X670E HERO good for gaming?
- Absolutely! The ASUS ROG CROSSHAIR X670E HERO is an excellent motherboard for gamers, featuring PCIe 5.0 support for next-gen GPUs, DDR5 memory for faster load times, and ultra-fast storage options. With its premium power delivery system and superior cooling, it is built to handle the demands of modern gaming at the highest settings.
Does the ASUS ROG CROSSHAIR X670E HERO support PCIe 5.0?
- Yes, the ASUS ROG CROSSHAIR X670E HERO supports PCIe 5.0, offering double the bandwidth of PCIe 4.0. This means it’s ready for next-generation GPUs, NVMe SSDs, and other cutting-edge components, providing faster data transfer speeds and significantly improved overall system performance.
What type of memory is supported by the ASUS ROG CROSSHAIR X670E HERO?
- The ROG CROSSHAIR X670E HERO supports DDR5 memory with speeds up to 6400MHz (OC). DDR5 offers improved performance, higher bandwidth, and better power efficiency compared to DDR4, making it ideal for demanding tasks like gaming, content creation, and overclocking.
Who should consider the ASUS ROG CROSSHAIR X670E HERO motherboard?
- The ROG CROSSHAIR X670E HERO is ideal for serious gamers, overclockers, and content creators who need top-tier performance and advanced features. Its robust power delivery, premium cooling, and cutting-edge connectivity options make it perfect for high-performance builds that demand reliability and future-proofing.
Use Cases and Benefits
Gaming Enthusiasts: The ASUS ROG CROSSHAIR X670E HERO is perfect for gamers who want the best performance. With PCIe 5.0, support for high-speed DDR5 memory, and dual M.2 slots for fast storage, it provides lightning-fast load times and smooth gameplay. Whether you're playing AAA titles or engaging in competitive gaming, this motherboard ensures you get the most out of your system.
Content Creators: For creators working with 4K or 8K video, high-resolution images, or large 3D files, the X670E HERO offers unparalleled performance. Its advanced memory support and PCIe 5.0 help accelerate workloads, while the superior power delivery ensures stable performance even during intensive tasks like video editing, rendering, or running virtual machines.
Overclocking and Enthusiast Builds: The 12+2 power stages and enhanced cooling design of the X670E HERO make it an excellent choice for overclockers and enthusiasts. It can handle high power demands, allowing users to push their CPUs and memory to higher speeds with stability. Its premium design ensures that your system remains cool and efficient during demanding tasks.
Competitive Advantages
The ASUS ROG CROSSHAIR X670E HERO stands out in its category by offering the latest features such as PCIe 5.0, DDR5 memory, and next-gen connectivity (Wi-Fi 6E, USB 4.0, and Thunderbolt 4). Unlike many other motherboards at similar price points, it provides superior power delivery and thermal solutions, ensuring that your system remains stable even during intense workloads. With its impressive build quality, customization options, and exclusive ROG features, it is ideal for users looking to create a high-performance, future-proof PC.
The Asus ROG CROSSHAIR X670E HERO DDR5 AMD AM5 ATX Motherboard is a high-performance motherboard designed for gaming enthusiasts. Featuring support for the latest DDR5 memory technology and the new AMD AM5 socket, this motherboard provides blazing fast speeds and seamless performance.
The X670E HERO boasts an ATX form factor, making it compatible with a wide range of PC cases. Its robust design includes premium components to ensure reliable operation under heavy workloads. The sleek and stylish design features RGB lighting and customisable LED effects for a personalised touch.
Equipped with PCIe 5.0 slots, USB 4.0 ports, and Wi-Fi 6E connectivity, the X670E HERO offers cutting-edge features for next-level gaming and productivity. The ROG exclusive technologies, such as AI noise-cancelling microphone software and game-boosting performance enhancements, elevate your gaming experience to new heights.
Overall, the Asus ROG CROSSHAIR X670E HERO DDR5 AMD AM5 ATX Motherboard is a top-tier motherboard that delivers exceptional performance, advanced features, and unmatched reliability for serious gamers and PC enthusiasts.
