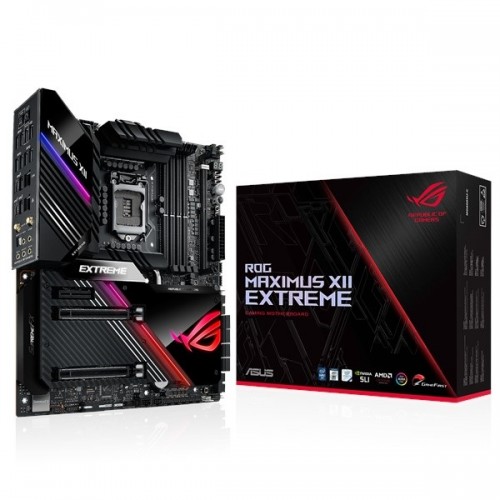

Asus ROG Maximus XII Extreme Z490 Wi-Fi Intel 10th Gen ATX Motherboard
- Brand: Asus
- Product Code: Asus ROG Maximus XII Extreme Z490
- Availability: Out of Stock
- Updated:
৳68,500
Out of Stock
Specification
| BASIC INFORMATION | |
| Form Factor | 12 inch x 10.9 inch ( 30.5 cm x 27.7 cm ) |
|---|---|
| Supported CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel Z490 |
| Memory | 128GB |
| Slots | 4 x DIMM |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220 - Impedance sense for front and rear headphone outputs - Supports : Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - ESS™ ES9023 DAC + RC4580 OP AMP - Supports up to 32-Bit/192kHz playback LED-illuminated audio jacks Audio Feature : - SupremeFX Shielding Technology - Optical S/PDIF out port(s) at back panel - Premium Japanese audio capacitors - Audio Cover |
| BIOS | 2 x 256 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | 1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) |
| PCI | Intel 10th Gen Processors: 2 x PCIe 3.0 x16 (x16 or dual x8) Intel Z490 Chipset: 1 x PCIe 3.0 x4 (x4 mode) 3 x PCIe 3.0 x1 |
| Graphics Specifications | |
| Graphics | Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology |
| Memory Specifications | |
| Supported Memory | 4800(O.C.)/ 4700(O.C)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem III |
| Type | Dual Channel Memory Architecture |
| PORTS, CONNECTORS & SLOTS | |
| LAN Port (s) | Intel I225-V 2.5Gb Ethernet Marvell AQtion AQC107 10Gb Ethernet ASUS LANGuard Wireless Data Network: Intel Wi-Fi 6 AX201 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports CNVI interface Bluetooth: Bluetooth v5.1 |
| Supported Storage | Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports Intel 10th Gen Processors : 1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) Intel Z490 Chipset : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane Memory Ready |
| USB (s) | Rear USB Port ( Total 12 ) 1 x USB 3.2 Gen 2x2 port(s) 3 x USB 3.2 Gen 2 port(s)(2 + Type-A +1 + USB Type-C) 6 x USB 3.2 Gen 1 port(s)(6 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 10 ) 2 x USB 3.2 Gen 2 front panel connector port(s) 4 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) |
| Internal I/O Connectors | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x W_PUMP+ connector 1 x WB_SENSOR 8 x Radiator Fan Headers 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Node Connector(s) 1 x AAFP connector 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 2 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) 8 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x 4-pin EZ_PLUG Power connector(s) 1 x Slow Mode switch(es) 8 x ProbeIt Measurement Points 1 x Thermal sensor connector(s) 1 x BIOS Switch button(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 2 x USB 3.2 Gen 2 front panel connector 1 x Speaker connector 1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110) 2 x RSVD Switch 1 x Start button 1 x FlexKey button |
| WARRANTY | |
| Manufacturing Warranty | 03 Years |
Description
Unleash Your Gaming Potential with the Asus ROG Maximus XII Extreme
The Asus ROG Maximus XII Extreme Z490 Wi-Fi motherboard is engineered for gamers and power users who demand top-tier performance and cutting-edge technology. Designed for Intel's 10th Gen processors, this ATX motherboard supports the latest advancements in gaming and computing. With its robust power delivery system, the Maximus XII Extreme ensures stable overclocking, allowing you to push your CPU to its limits.
Equipped with built-in Wi-Fi 6, you can enjoy lightning-fast internet connectivity, perfect for online gaming and streaming. The motherboard features multiple M.2 slots supporting NVMe SSDs, ensuring rapid load times and seamless multitasking. Its elaborate cooling solutions, including heat sinks and fan headers, maintain optimal temperatures even under heavy workloads.
The Asus ROG Maximus XII Extreme is also designed with extensive RGB lighting options, allowing you to customize your build's aesthetics. Additionally, the user-friendly BIOS interface and comprehensive software suite make system tuning and monitoring a breeze. Choose the Maximus XII Extreme and elevate your gaming setup to a whole new level.
