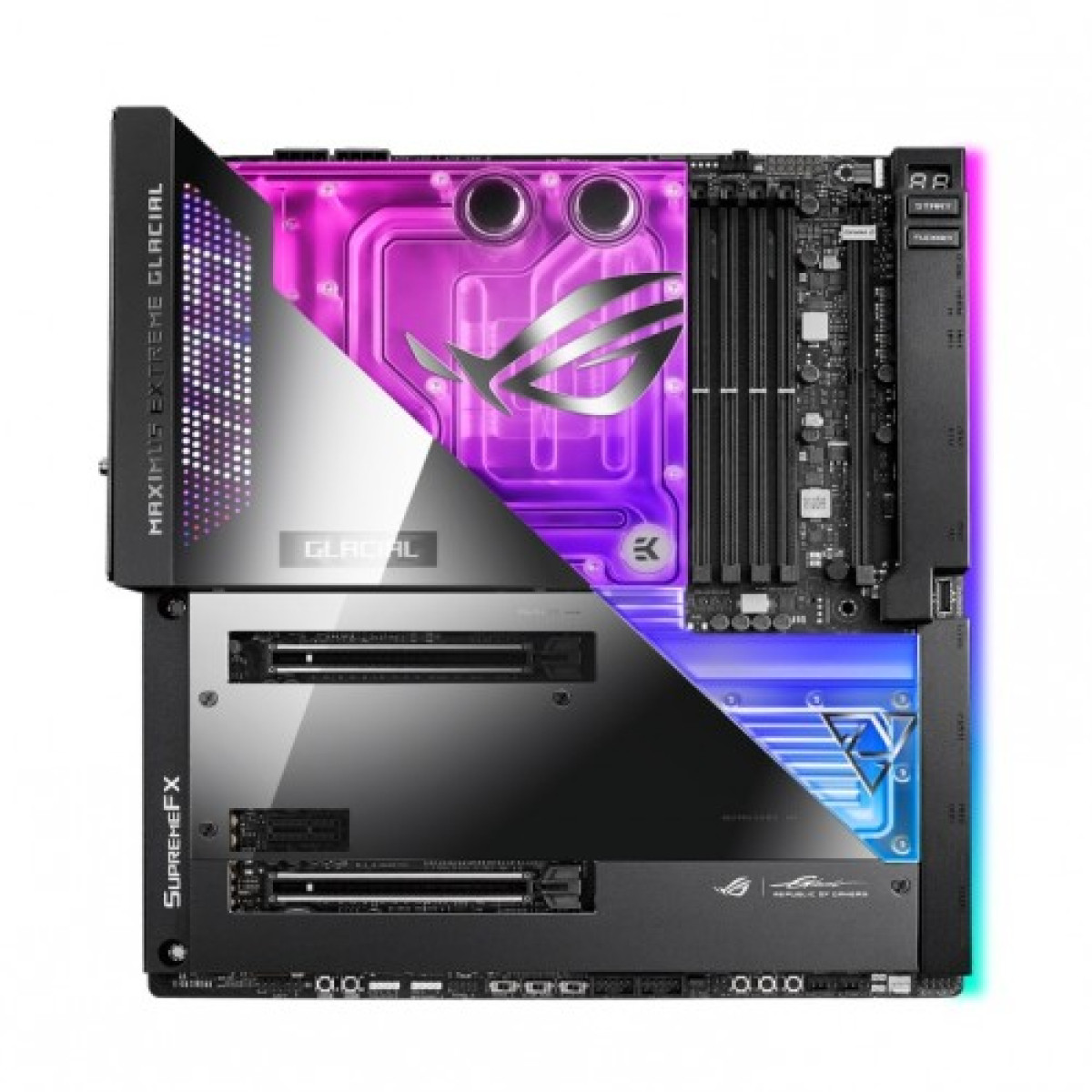

Asus ROG MAXIMUS Z690 EXTREME GLACIAL 12th Gen E-ATX Motherboard
Call for price
01715143685 / 01711131207
Key highlights
- Form Factor: EATX 30.5cm x 27.7cm
- Graphics: 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.4 and Thunderbolt video outputs
- Supported CPU: Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - ESS® SABRE9018Q2C DAC/AMP - LED-illuminated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover
- BIOS: 2 x 256 Mb Flash ROM, UEFI AMI BIOS
Description
Buy 12th Gen E-ATX Motherboard at Unix Network Shop
Unleash Gaming Performance with the Asus ROG MAXIMUS Z690 EXTREME GLACIAL
The Asus ROG MAXIMUS Z690 EXTREME GLACIAL motherboard is engineered to deliver unparalleled performance for gamers and enthusiasts alike. Built on the robust Intel Z690 chipset, this E-ATX motherboard supports the latest 12th Gen Intel Core processors, ensuring that you have the power to handle even the most demanding applications. With advanced cooling solutions, including a premium water block, your system will stay cool under pressure, allowing for extended gaming sessions without thermal throttling.
Not only does this motherboard excel in performance, but it also boasts exceptional connectivity options. The ROG MAXIMUS Z690 EXTREME GLACIAL features Wi-Fi 6E, providing lightning-fast internet speeds and robust connectivity for online gaming. Additionally, with multiple M.2 slots and PCIe 5.0 support, you can expand your storage and graphics capabilities, ensuring your system is future-proof.
The aesthetic appeal of this motherboard is unmatched, with customizable RGB lighting that can be synchronized with your other ROG components, allowing you to create a cohesive and eye-catching build. Whether you're building a high-end gaming rig or a workstation, the Asus ROG MAXIMUS Z690 EXTREME GLACIAL is the perfect choice for those who demand the best.
Top Features of Asus ROG MAXIMUS Z690 EXTREME
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | EATX 30.5cm x 27.7cm |
| Graphics | 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.4 and Thunderbolt video outputs |
| Supported CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - ESS® SABRE9018Q2C DAC/AMP - LED-illuminated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover |
| BIOS | 2 x 256 Mb Flash ROM, UEFI AMI BIOS |
| Type | DDR5 |
| Expansion Slots | |
| M.2 Socket | Supports 5 x M.2 slots |
| PCI | Intel 12th Gen Processors 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)** Intel Z690 Chipset 1 x PCIe 3.0 x1 slot |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Slots | 4 x DIMM |
| Supported Memory | DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/5000(OC)/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI port |
| Internal I/O Ports | 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers 2 x 4-pin Radiator Fan headers 2 x W_PUMP+ headers 1 x WB_SENSOR header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 6-pin PCIe Graphics Card connector Storage related 3 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x Intel® Thunderbolt 4 port (USB Type-C®) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers 1 x Addressable Gen 2 header 1 x AURA RGB header 1 x BIOS Switch button 2 x BCLK button 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x LN2 Mode jumper 1 x Osc sence header 12 x ProbeIt Measurement Points 1 x ReTry button 1 x RSVD switch 1 x RSVD header 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x V_Latch switch 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet 1 x Marvell 10Gb Ethernet |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| USB (s) | Rear USB: Total 10 ports 1 x Thunderbolt 4 port (1 x USB Type-C) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C) Front USB: Total 10 ports 1 x Thunderbolt 4 connector (1 x USB Type-C) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Special | |
| Bundled Software | ROG Exclusive Software - GameFirst VI - ROG CPU-Z - ROG True Voltician - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound - BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation - OLED Display - AniMe MatrixTM LED Display AI Suite 3 - Easy Optimization with AI Overclocking TPU EPU DIGI+ Power Control Turbo app MyAsus WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode MemTest86 |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
