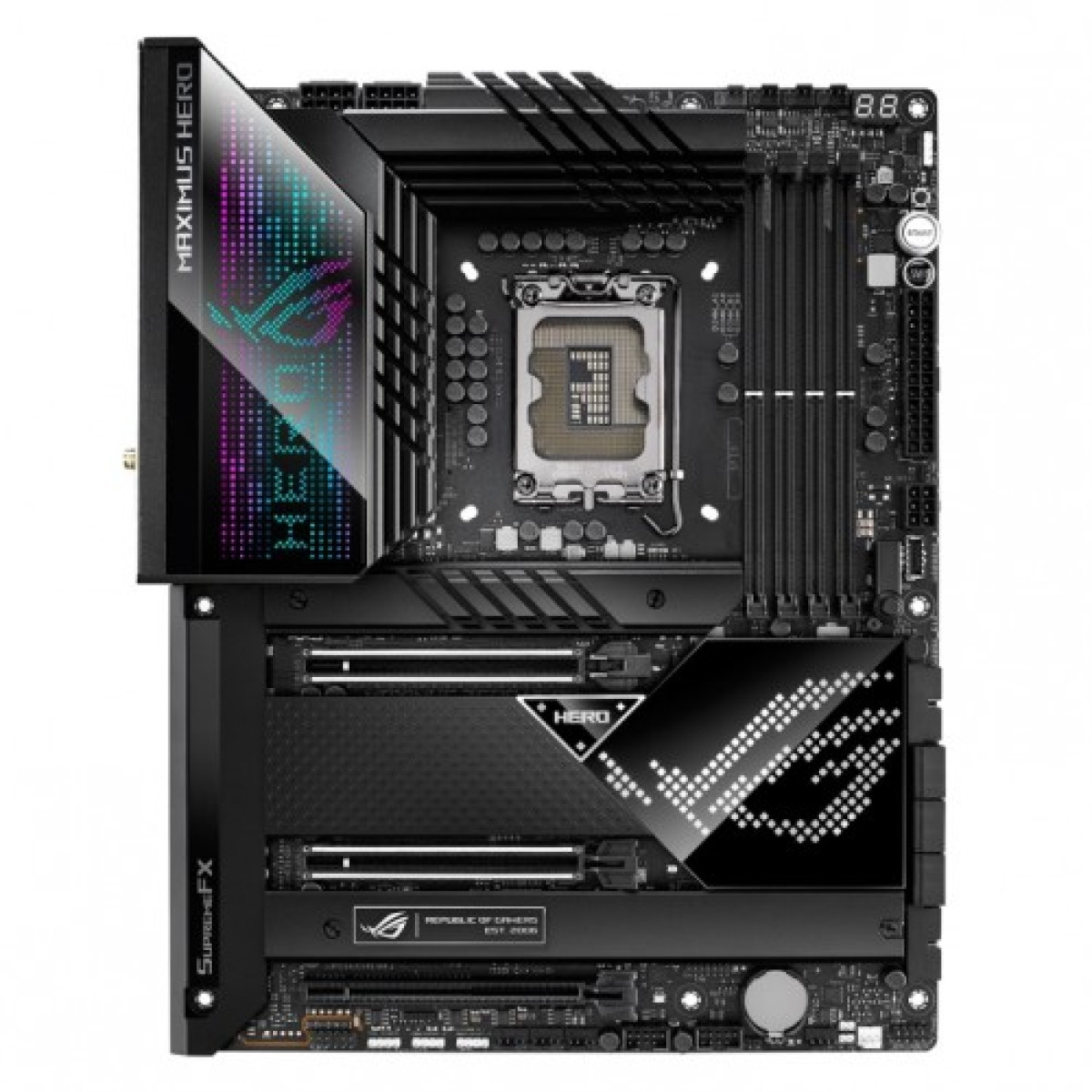

Asus ROG MAXIMUS Z690 HERO 12th Gen ATX Motherboard
৳64,100
Key highlights
- Form Factor: ATX 30.5cm x 24.4cm
- Supported CPU: Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Chipset: Z690
- Slots: 4 x DIMM
- Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features: - SupremeFX Shielding Technology - ESS® SABRE9018Q2C DAC/AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover
Description
Unleash Gaming Power with ASUS ROG MAXIMUS Z690 HERO
Unleash the Power of Gaming with Asus ROG MAXIMUS Z690 HERO
The Asus ROG MAXIMUS Z690 HERO motherboard is designed for gamers and PC enthusiasts who demand top-tier performance. Built on the Intel Z690 chipset, this ATX motherboard supports the latest 12th Generation Intel Core processors, offering advanced features that elevate your gaming experience. With support for DDR5 memory, you can enjoy faster data speeds and improved performance, making lag a thing of the past.
Equipped with robust power delivery systems and premium capacitors, the Z690 HERO ensures stable operation even under heavy loads. The motherboard boasts a rich array of connectivity options including Thunderbolt 4, USB 3.2 Gen 2x2, and PCIe 5.0 slots for next-gen graphics cards. Additionally, the integrated Wi-Fi 6E provides blazing-fast wireless connectivity, perfect for online gaming.
The Asus ROG MAXIMUS Z690 HERO also features customizable RGB lighting and an intuitive BIOS interface, allowing you to personalize your setup easily. With its exceptional build quality and premium aesthetics, this motherboard not only performs well but looks great in any gaming rig.
Top Features of the ASUS ROG MAXIMUS Z690 HERO Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX 30.5cm x 24.4cm |
| Supported CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Z690 |
| Slots | 4 x DIMM |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features: - SupremeFX Shielding Technology - ESS® SABRE9018Q2C DAC/AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | Supports 5 x M.2 slots |
| PCI | Intel 12th Gen Processors* 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)** Intel Z690 Chipset*** 1 x PCIe 4.0 x16 slot (supports x4, x4/x4 modes) |
| Graphics Specifications | |
| Graphics | 1 x HDMI port 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.4 and Thunderbolt video outputs |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 MT/s Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | 1 x Front Panel Audio header (AAFP) |
| HDMI | 1 x HDMI port |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 6-pin PCIe Graphics Card connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x Start button 1 x ReTry button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Supported Storage | Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports* Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode.) - Intel® 12th Gen processors support PCIe 4.0 x4 mode. Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 - Intel® 12th Gen processors support PCIe 5.0 x4 mode Intel® Z690 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode) Hyper M.2_2 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode) 6 x SATA 6Gb/s ports |
| USB (s) | Rear USB: Total 11 ports 2 x Thunderbolt 4 ports (2 x USB Type-C) 7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C) 2 x USB 2.0 ports (2 x Type-A) Front USB: Total 9 ports 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Special | |
| Bundled Software | ROG Exclusive Software - ROG CPU-Z - GameFirst VI - ROG True Voltician - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound - BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - Easy Optimization with AI Overclocking TPU EPU DIGI+ Power Control Turbo app MyAsus WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode MemTest86 |
| Special Feature | Extreme OC Kit - FlexKey button - LN2 Mode - Probelt - ReTry button - Safe boot button - Start button - Slow Mode Extreme Engine Digi+ - SMD Capacitors - MicroFine Alloy Choke ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Code - Q-Connector - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s) Dual BIOS Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support - Support: up to 60W charging* - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS * To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W. ASUS HYDRANODE 3 x Chassis fan support (CHA_FAN1P,CHA_FAN2P,CHA_FAN3P) |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
