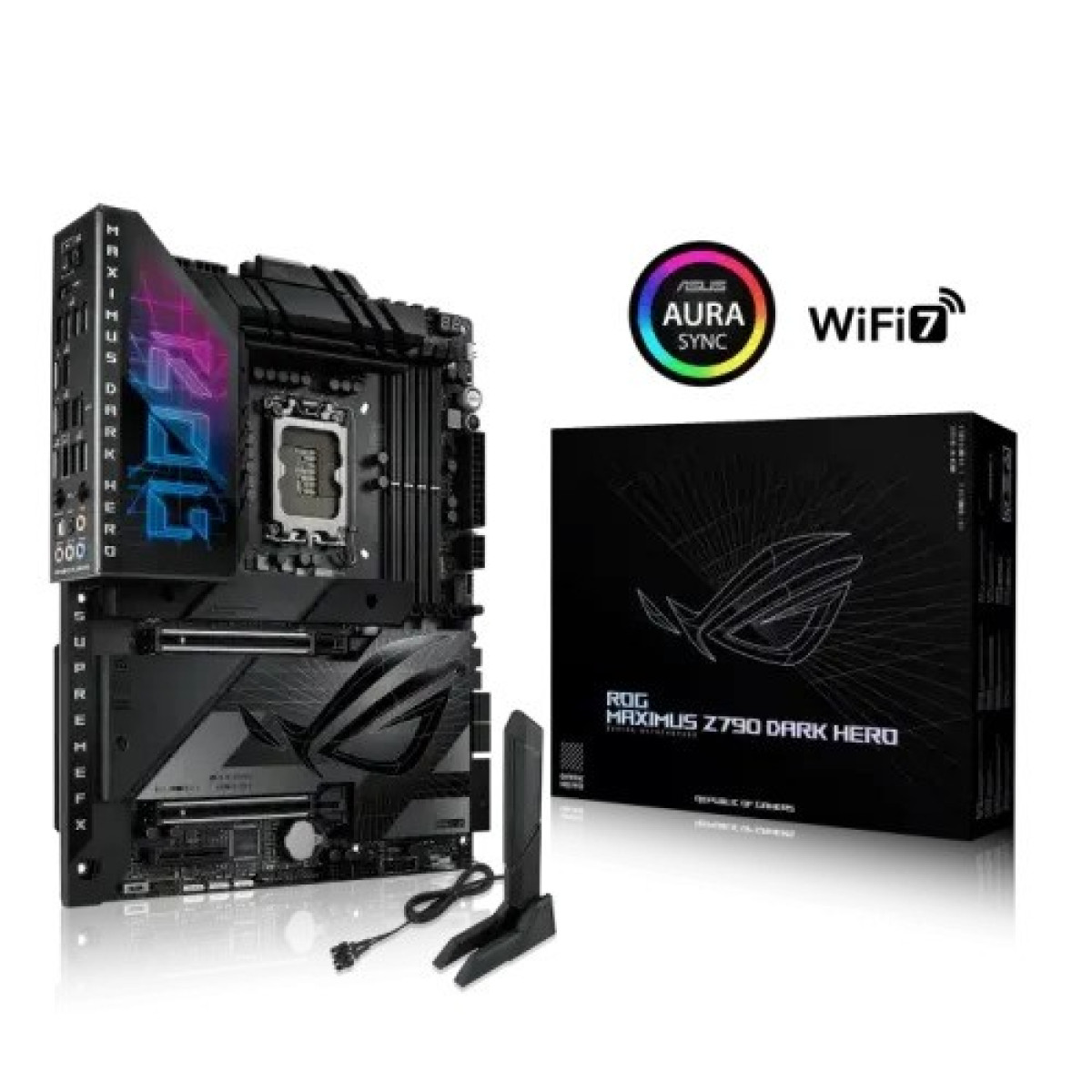

ASUS ROG MAXIMUS Z790 DARK HERO ATX Motherboard for Gamers
- Brand: Asus
- Product Code: ROG MAXIMUS Z790 DARK HERO
- Availability: Call for Price
Specification
| BASIC INFORMATION | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Raid controller | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel Z790 Chipset |
| Audio | 3 x Audio jacks |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | 5 x M.2 |
| PCI | Intel CoreTM Processors (14th & 13th & 12th Gen) 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes) Intel Z790 Chipset 1 x PCIe 4.0 x4 slot |
| Graphics Specifications | |
| Graphics | 1 x HDMITM port 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Support 4K@60Hz as specified in HDMI 2.1. VGA resolution support depends on the processors' or graphic cards' resolution. |
| Memory Specifications | |
| Maximum Memory | Max. 192GB |
| Slots | 4 x DIMM |
| Supported Memory | 8000+(OC)/7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II) Supports DIMM Flex |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 2 x Intel Thunderbolt |
| HDMI | 1 x HDMI |
| Internal I/O Ports | Back Panel I/O Ports 2 x Thunderbolt 4 USB Type-C ports 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C) 4 x USB 5Gbps ports (4 x Type-A) 1 x HDMITM port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button Internal I/O Connectors Fan and Cooling-related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin main power connector 2 x 8-pin +12V power connector 1 x 8-pin PCIe power connector Storage related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x FlexKey button 1 x Front panel audio header (F_AUDIO) 1 x Start button 1 x ReTry button 1 x 10-1 pin system panel header 1 x Thermal sensor header 1 x CPU over voltage jumper 1 x Alternative PCIe mode switch |
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Supported Storage | Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports Intel CoreTM Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode.) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode.) Intel Z790 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| USB (s) | Rear USB (Total 12 ports) 2 x Thunderbolt™ 4 ports (2 x USB Type-C®) 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Wireless Communication module | Intel Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be)** Supports 2.4/5/6GHz frequency band Support Wi-Fi 7 320MHz bandwidth, up to 5.76Gbps transfer rate. Bluetooth v5.4 |
| Special | |
| Bundled Software | ROG Exclusive Software - ROG CPU-Z - DTS Sound Unbound - Internet Security (1 year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - Two-Way AI Noise Cancelation - Power Saving - Sonic Studio AI Suite 3 - Easy Optimization with AI Overclocking - TPU - DIGI+ Power Control - Turbo app - PC Cleaner MyAsus USB Wattage Watcher Intel Unison Adobe Creative Cloud (Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS My Hotkey MemTest86 |
| Special Feature | Extreme OC Kit - FlexKey button - ReTry button - Start button Extreme Engine Digi+ - 10K Black metallic capacitors - MicroFine alloy choke ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) with DRAM Detection - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - Metal backplate - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s) Front Panel USB 20G with Quick Charge 4+ Support - Support: up to 60W fast charging and USB Wattage Watcher - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with PD3.0 and PPS To support 60W, please install the power cable to 8-pin PCIe power connector or else only 27W will be supported. |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
Description
ASUS ROG MAXIMUS Z790 DARK HERO ATX Motherboard Overview
The ASUS ROG MAXIMUS Z790 DARK HERO ATX Motherboard is the pinnacle of gaming and performance engineering. Designed for enthusiasts who demand the best, this motherboard supports Intel's latest 13th generation processors, enabling incredible performance and unparalleled gaming experiences. With a striking black aesthetic and premium components, this motherboard is not just about looks; it’s built for durability and longevity.
Enhanced Gaming Performance: The Z790 DARK HERO is equipped with advanced power delivery systems, including a robust VRM design that ensures stable performance even during intense gaming sessions. This motherboard also features support for DDR5 memory, allowing for faster data transfer rates and improved multitasking capabilities. With a maximum memory capacity of up to 128GB, gamers and content creators alike can push their systems to the limit.
Connectivity Options: Featuring multiple PCIe 5.0 slots, the ROG MAXIMUS Z790 DARK HERO provides extensive options for graphics cards and high-speed storage solutions. The motherboard includes Thunderbolt 4 support, enabling lightning-fast data transfer and connectivity with a variety of devices. Additionally, it comes with Wi-Fi 6E for seamless online gaming and connectivity without lag.
Customization and Aesthetics: ASUS has integrated customizable RGB lighting into the motherboard, allowing users to personalize their setups. The intuitive ASUS Aura Sync software enables users to synchronize lighting effects across all compatible devices, creating a cohesive aesthetic. The sleek design and premium materials not only enhance the appearance of your build but also improve thermal performance.
Why Choose the ASUS ROG MAXIMUS Z790 DARK HERO?: For serious gamers and PC enthusiasts in Bangladesh, this motherboard offers an exceptional value proposition. Its high-end features, reliability, and performance ensure that you can tackle any task, from gaming to content creation. Investing in the ROG MAXIMUS Z790 DARK HERO means investing in a future-proof platform that will support the latest technologies and provide an outstanding experience for years to come.
