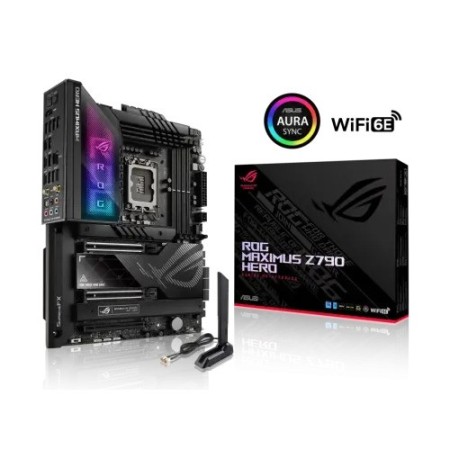

Asus ROG MAXIMUS Z790 HERO DDR5 ATX Motherboard
- Brand: Asus
- Product Code: ROG MAXIMUS Z790 HERO DDR5
- Availability: Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|---|---|
| Raid controller | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 |
| Supported CPU | Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel Z790 Chipset |
| Audio | 5 x Gold-plated audio jacks |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | Total supports 5 x M.2 slots |
| PCI | Intel 13th & 12th Gen Processors 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes) Intel Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4, x4/x4 modes) |
| Graphics Specifications | |
| Graphics | 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.4 and Thunderbolt video outputs 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
| Memory Specifications | |
| Maximum Memory | Max. 192GB |
| Slots | 4 x DIMM |
| Supported Memory | 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort |
| HDMI | 1 x HDMI port |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 6-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® ) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x Start button 1 x ReTry button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x CPU Over Voltage jumper 1 x Alternative PCIe Mode switch Back Panel I/O Ports 2 x Thunderbolt 4 USB Type-C ports 6 x USB 3.2 Gen 2 ports (5 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Supported Storage | Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode.) Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode.)** Intel® Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)** Hyper M.2_2 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)*** 6 x SATA 6Gb/s ports |
| USB (s) | Rear USB (Total 12 ports) 2 x Thunderbolt 4 ports (2 x USB Type-C) 6 x USB 3.2 Gen 2 ports (5 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 60W PD/QC4+) 2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Wireless Communication module | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.3 |
| Special | |
| Bundled Software | ROG Exclusive Software - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound - BullGuard or equivalent internet security (1-year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1-year full version) - AURA Creator - AURA Sync - Fan Xpert 4 (with AI Cooling II) - Two-Way AI Noise Cancelation - Power Saving AI Suite 3 - Easy Optimization with AI Overclocking - TPU - DIGI+ Power Control - Turbo app - PC Cleaner MyAsus WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode MemTest86 |
| Special Feature | Extreme OC Kit - FlexKey button - ReTry button - Start button Extreme Engine Digi+ - 10K Black Metallic Capacitors - MicroFine Alloy Choke ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - Steel backplate - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s) Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support - Support: up to 60W charging - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with PD3.0 and PPS |
| WARRANTY | |
| Manufacturing Warranty | 3 years warranty |
Description
Asus ROG MAXIMUS Z790 HERO DDR5 ATX Motherboard: Elevate Your Gaming Experience
The Asus ROG MAXIMUS Z790 HERO DDR5 ATX Motherboard is not just a piece of hardware; it’s a gateway to unparalleled gaming performance and a robust computing experience. Designed for gamers, content creators, and tech enthusiasts alike, this motherboard showcases cutting-edge technology that takes full advantage of the latest Intel processors. With support for DDR5 memory, it provides faster data transfer rates and improved performance, making it an ideal choice for high-performance gaming rigs.
Unmatched Performance: The Z790 HERO is engineered with an array of features that enhance performance, including advanced thermal management systems and customizable RGB lighting. Its robust design ensures stability during intense gaming sessions, and its compatibility with the latest components allows for future-proofing your investment.
Benefits that Matter: This motherboard is designed with gamers in mind, offering features like AI overclocking, which optimizes performance without requiring extensive technical knowledge. The intuitive BIOS interface allows users to easily tweak settings for maximum efficiency. Furthermore, the built-in Wi-Fi 6E technology ensures you stay connected with minimal latency, an essential factor for competitive gaming.
Use Cases: Whether you are a hardcore gamer looking to push your system to the limits, a streamer wanting to deliver high-quality content, or a professional needing a reliable machine for demanding applications, the ROG MAXIMUS Z790 HERO delivers. Its expansive connectivity options, including multiple USB ports and PCIe slots, ensure compatibility with a wide range of peripherals and upgrades.
Why Buy the ROG MAXIMUS Z790 HERO?: Investing in the Asus ROG MAXIMUS Z790 HERO means choosing quality, performance, and a motherboard that supports your aspirations. Its combination of high-end features, exceptional build quality, and user-friendly design makes it a top contender in the market. For customers in Bangladesh, the availability of local support and warranty services enhances the value of this purchase, ensuring peace of mind with your investment.
