Key highlights
- Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Supported CPU: AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Chipset: AMD B550
- Memory: 128GB
- Slots: 4 x DIMM
Description

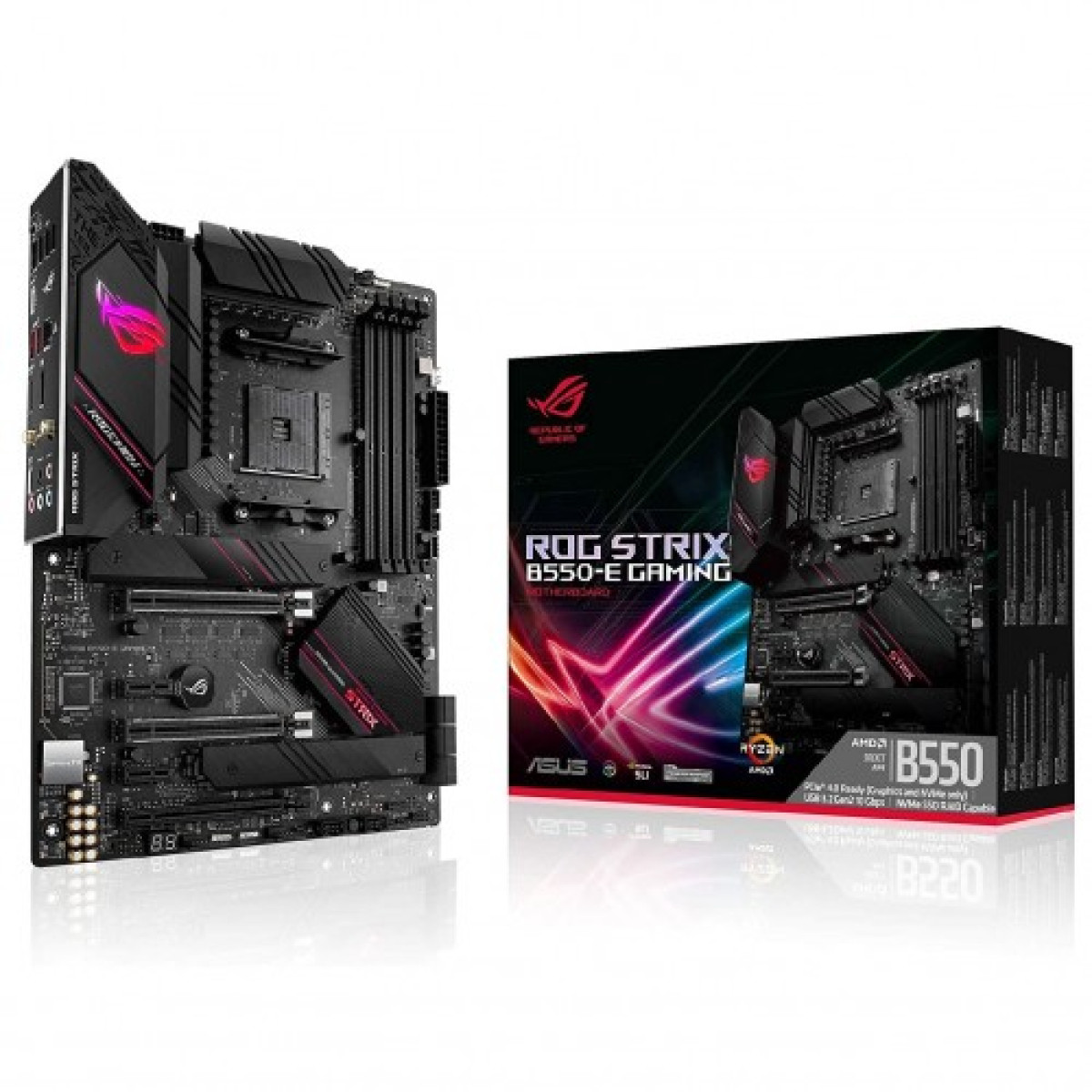

Experience Gaming Like Never Before with ASUS ROG STRIX B550-E GAMING
The ASUS ROG STRIX B550-E GAMING AM4 ATX Motherboard is designed for gamers and PC enthusiasts who demand the best performance and reliability. With its AM4 socket, it supports the latest AMD Ryzen processors, ensuring compatibility with high-performance CPUs. This motherboard features a robust power delivery system, allowing for stable overclocking and enhanced performance during intense gaming sessions.
Equipped with dual PCIe 4.0 M.2 slots, it offers lightning-fast storage options for faster load times and improved gameplay experiences. The Wi-Fi 6 capability ensures a seamless online gaming experience, providing faster speeds and lower latency. Additionally, the SupremeFX audio technology delivers immersive sound quality, enhancing your gaming atmosphere.
With customizable RGB lighting, the ASUS ROG STRIX B550-E GAMING allows you to personalize your setup, creating a unique gaming environment that reflects your style. The motherboard also includes advanced cooling solutions, ensuring optimal temperatures during prolonged gaming sessions. Designed with gamers in mind, this motherboard is the perfect foundation for your high-performance gaming rig.
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Supported CPU | AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Chipset | AMD B550 |
| Memory | 128GB |
| Slots | 4 x DIMM |
| Audio | Rear audio USB Type-C port |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | 1 x M.2_2 socket 3, AMD Ryzen 4000 G-Series Processor : AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)* Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) |
| PCI | 1 x PCIe 3.0 x16 (x4 mode) * 2 x PCIe 3.0 x1 2 x PCIe 4.0 x16 (x16 or dual x8) 2 x PCIe 3.0 x16 (x16 or dual x8) |
| Graphics Specifications | |
| Graphics | 1 x HDMI 2.1(4K@60HZ) 1 x DisplayPort 1.2 *Graphics specifications may vary between CPU types. Integrated Graphics Processor Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology |
| Memory Specifications | |
| Supported Memory | 4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory AMD Ryzen 4000 G-Series Processors 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory OptiMem II Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort 1.2 |
| HDMI | 1 x HDMI 2.1(4K@60HZ) |
| LAN Port (s) | Intel I225-V 2.5Gb Ethernet ASUS LANGuard |
| Supported Storage | 1 x M.2_2 socket 3, AMD Ryzen 4000 G-Series Processor : AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)* Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD B550 Chipset : 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
| USB (s) | 3 x USB 3.2 Gen 2 port(s)(2 x Type-A +1 x USB Type-C) 1 x USB 2.0 port(s)(1 x audio USB Type-C ) 4 x USB 2.0 port(s)(4 x Type-A) Rear USB Port ( Total 8 ) Front USB Port ( Total 7 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) 1 x USB 3.2 Gen 2 front panel connector port(s) |
| Internal I/O Connectors | 1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x Thunderbolt header(s) 1 x Q-Code 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) |
| Special | |
| Special Feature | Aura Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) ASUS Q-Design - ASUS Q-CODE - ASUS Q-DIMM - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY -BIOS Flashback button -BIOS FlashBack LED -Clear CMOS header -Procool -Pre-mounted I/O shield - SafeSlot Rear audio USB Type-C connector |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
