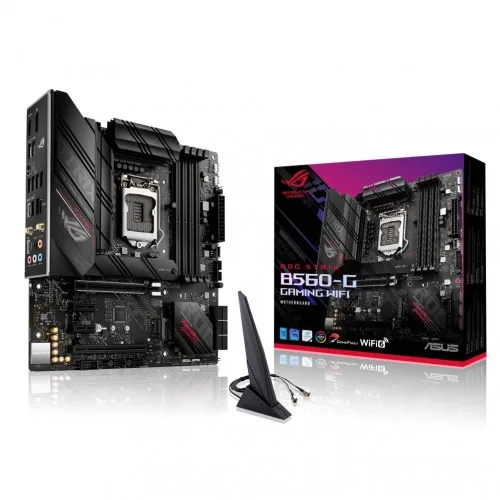

ASUS ROG STRIX B560-G GAMING WI-FI 10th and 11th Gen Micro ATX Motherboard
- Brand: Asus
- Product Code: ASUS ROG STRIX B560-G
- Availability: Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | microATX 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
|---|---|
| Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel B560 Chipset |
| Memory | 128GB |
| Slots | 4 x DDR4 (Dual channel) |
| Audio | 5 x Audio jacks |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | M.2_1 slot (Key M), type 2242/2260/2280/22110 M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) |
| PCI | Intel 11th &10th Gen Processors: 1 x PCIe 4.0/3.0 x16 slot(s) - Intel 11th Gen processors support PCIe 4.0 x16 - Intel10th Gen processors support PCIe 3.0 x16 Intel B560 Chipset: 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots |
| Graphics Specifications | |
| Graphics | 1 x DisplayPort 1.4 1 x HDMI 1.4 / 2.0 |
| Memory Specifications | |
| Supported Memory | 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort |
| HDMI | 1 x HDMI port |
| LAN Port (s) | TUF LANGuard |
| Supported Storage | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs. Intel B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports |
| USB (s) | Rear USB: Total 9 ports 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 7 x USB 2.0 port(s) (6 x Type-A, 1 x audio USB Type-C) Front USB: Total 7 ports 1 x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
| Internal I/O Connectors | 1 x TB Header (for add-on TB card) 1 x Thunderbolt header Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 7 x USB 2.0 port(s) (6 x Type-A, 1 x audio USB Type-C) 1 x HDMI port 1 x DisplayPort 1 x ASUS Wi-Fi Module 1 x Intel I225-V 2.5Gb Ethernet 5 x Audio jacks 1 x BIOS FlashBack button Connectors Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin AIO Pump header(s) 2 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM port 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header 1 x S/PDIF Out header |
| Special | |
| Bundled Software | ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) -AURA Creator - AURA Sync - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 4 - EZ update DAEMON Tools MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Special Feature | Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB header(s) - Addressable Gen 2 RGB header(s) |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
Description
Unleash Your Gaming Potential with ASUS ROG STRIX B560-G GAMING WI-FI
The ASUS ROG STRIX B560-G GAMING WI-FI motherboard is designed for gamers who demand high performance and reliability. Built on the Micro ATX form factor, this motherboard supports both 10th and 11th generation Intel processors, providing you with the flexibility to choose your ideal CPU for superior gaming performance. With its sleek design and customizable RGB lighting, it not only enhances your gaming rig's aesthetics but also ensures efficient cooling and optimal airflow.
Wi-Fi 6 Support: Integrated Wi-Fi 6 technology delivers faster speeds and lower latency, allowing for seamless online gaming experiences even in crowded networks.
Comprehensive Connectivity: Featuring multiple USB 3.2 Gen 2 ports and HDMI 2.0 output, this motherboard ensures you stay connected with all your peripherals and display devices.
Enhanced Audio: The onboard SupremeFX audio technology provides an immersive sound experience, making you feel like you’re right in the middle of the action.
Whether you're a casual gamer or a competitive player, the ASUS ROG STRIX B560-G GAMING WI-FI motherboard is the perfect choice to elevate your gaming setup.
