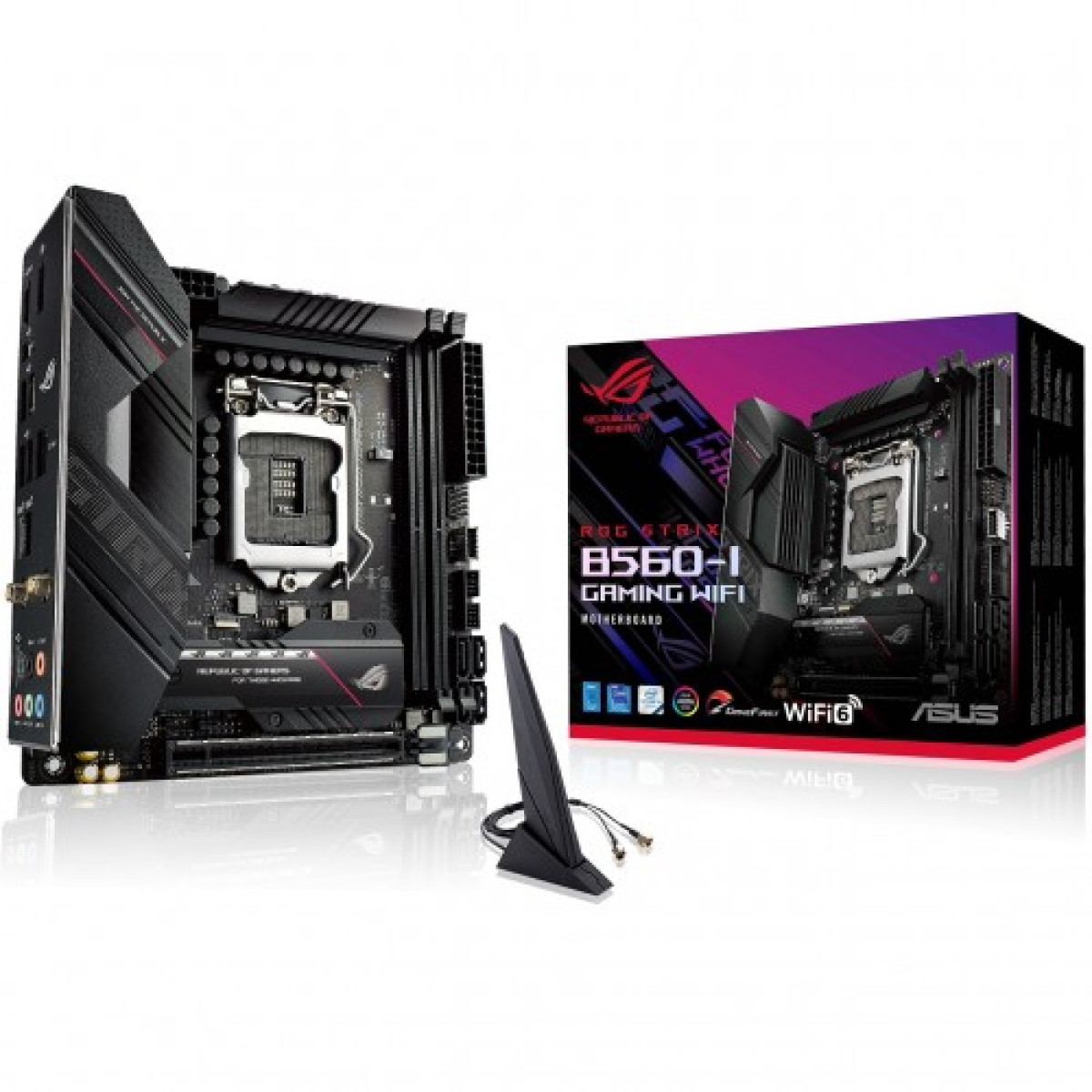

ASUS ROG STRIX B560-I Gaming Wi-Fi Intel 10th and 11th Gen Mini ITX Motherboard
৳17,000
Key highlights
- Form Factor: Mini ITX: 17cm x 17cm
- Supported CPU: Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Intel B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
- Chipset: Intel B560 Chipset
- Memory: Support up to 64GB
- Slots: 2x DDR4 memory slots
Description
Top Mini ITX Motherboard for Intel 10th and 11th Gen
Unleash Your Gaming Potential with ASUS ROG STRIX B560-I
The ASUS ROG STRIX B560-I Gaming Wi-Fi motherboard is designed for gamers who demand high performance and reliability. Built to support both Intel 10th and 11th Gen processors, this Mini ITX motherboard packs a punch in a compact form factor. With its Wi-Fi 6 capability, you'll enjoy faster, more stable internet connections, perfect for online gaming. The motherboard features an advanced power delivery system that ensures optimal performance during overclocking sessions, while the robust thermal design keeps your system cool under pressure.
Additionally, the RGB lighting adds a personal touch to your build, allowing you to customize the aesthetics to match your gaming setup. With multiple connectivity options, including USB 3.2 Gen 2 and HDMI, it provides flexibility for all your peripherals. The motherboard also supports dual-channel DDR4 memory up to 64GB, ensuring smooth multitasking and gaming.
Upgrade your gaming rig with the ASUS ROG STRIX B560-I and experience unparalleled performance and style!
Features of ASUS ROG STRIX B560-I for Gamers
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Mini ITX: 17cm x 17cm |
| Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Intel B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) |
| Chipset | Intel B560 Chipset |
| Memory | Support up to 64GB |
| Slots | 2x DDR4 memory slots |
| Audio | ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear audio USB Type-C® port - Premium Japanese audio capacitors |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | Supports 2 x M.2 slots Intel 11th Gen Processors M.2_1 slot (Key M), type 2242/ 2260/ 2280 - Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs |
| PCI | Intel 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot(s) - Intel 11th processors support PCIe 4.0 x16 - Intel 10th processors support PCIe 3.0 x16 |
| Graphics Specifications | |
| Graphics | 1 x DisplayPort 1.4 1 x HDMI 1.4 / 2.0 |
| Memory Specifications | |
| Supported Memory | 5333(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II 10th Gen Intel i7/ i9 processors support 2933/ 2800/ 2666/ 2400/ 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. 11th Gen Intel processors support 3200/ 2933/ 2800/ 2666/ 2400/ 2133 natively. |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort 1.4 |
| HDMI | 1 x HDMI 1.4 / 2.0 |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet |
| Supported Storage | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel11th Gen Processors M.2_1 slot (Key M), type 2242/ 2260/ 2280 - Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel B560 Chipset M.2_2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology. |
| USB (s) | Rear USB: Total 8 ports 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 6 x USB 2.0 port(s) (5 x Type-A, 1 x audio USB Type-C) Front USB: Total 5 ports 1 x USB 3.2 Gen 2 connector(s) (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin AIO Pump header(s) 1 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports Miscellaneous 1 x AURA Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
| Special | |
| Special Feature | Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-LED CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-DIMM - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink ASUS EZ DIY - ProCool - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB header(s) - Addressable Gen 2 RGB header(s) |
| WARRANTY | |
| Manufacturing Warranty | 03 Years |
