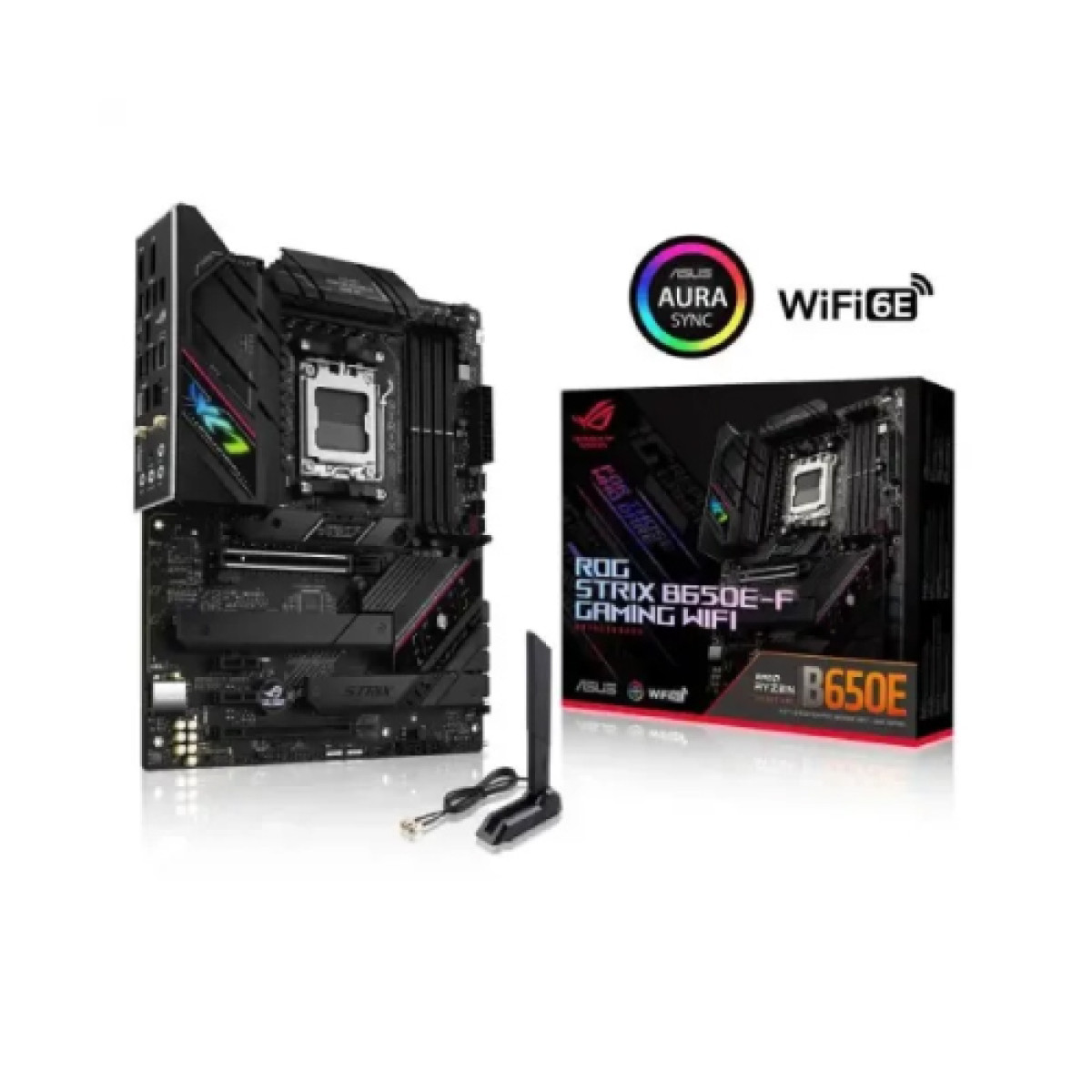

Asus ROG STRIX B650E-F GAMING WIFI DDR5 AM5 ATX Motherboard
Key highlights
- Audio Features: 5 x Audio jacks
- Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Raid controller: AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10
- Supported CPU: AMD Socket AM5 for AMD Ryzen 8000 & 7000 Series Desktop Processors
- Chipset: AMD B650
Description
Top Features of the Asus ROG STRIX B650E-F Motherboard
Asus ROG STRIX B650E-F GAMING WIFI DDR5 AM5 ATX Motherboard
The Asus ROG STRIX B650E-F GAMING WIFI DDR5 AM5 ATX Motherboard is a powerful and versatile motherboard designed for gamers and PC enthusiasts who demand the best performance from their systems. With its advanced features and cutting-edge technology, this motherboard is built to support the latest AMD Ryzen processors and DDR5 memory, ensuring that your gaming rig is future-proofed for years to come.
Product Overview
This motherboard is equipped with the AM5 socket, which provides compatibility with the latest AMD Ryzen 7000 series processors. The support for DDR5 memory allows for higher speeds and improved performance, making it an ideal choice for high-performance gaming and multitasking. The motherboard also features PCIe 5.0 support, enabling lightning-fast data transfer rates for your graphics cards and storage devices.
Benefits
One of the key benefits of the Asus ROG STRIX B650E-F is its robust power delivery system, which ensures stable and reliable performance even during intense gaming sessions. The motherboard includes advanced cooling solutions, such as heatsinks and fan headers, to keep your system temperatures in check. Additionally, the integrated Wi-Fi 6E provides faster and more reliable wireless connectivity, making it easier to stay connected during online gaming sessions.
Use Cases
This motherboard is perfect for gamers who want to build a high-performance gaming rig. It is also suitable for content creators and professionals who require powerful computing capabilities for tasks such as video editing, 3D rendering, and software development. With its extensive connectivity options and support for multiple GPUs, this motherboard can handle even the most demanding applications with ease.
Why Customers Should Buy This Product
Choosing the Asus ROG STRIX B650E-F means investing in a motherboard that combines performance, reliability, and cutting-edge technology. Its superior build quality and extensive features make it a standout option in the competitive motherboard market. Whether you are a serious gamer or a professional, this motherboard will provide you with the tools you need to succeed in any task.
Why Choose Asus ROG STRIX B650E-F for Your Gaming PC?
Specification
| BASIC INFORMATION | |
|---|---|
| Audio Features | 5 x Audio jacks |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Raid controller | AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10 |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B650 |
| Slots | 4 x DIMM |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| PCI | AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)* 2 x PCIe 4.0/3.0 x1 slots |
| Graphics Specifications | |
| Graphics | 1 x DisplayPort 1 x HDMI port Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports max. 4K@60Hz as specified in HDMI 2.1. |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort |
| HDMI | 1x HDMI |
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Supported Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD X670 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| USB (s) | Rear USB (Total 12 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 port (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers supports additional 4 USB 2.0 ports |
| Wireless Communication module | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.2 |
| Special | |
| Bundled Software | ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS Sound Unbound - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TPU - DIGI+ VRM - Turbo app - PC Cleaner MyAsus WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey |
| Special Feature | Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-LED - Q-DIMM - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
