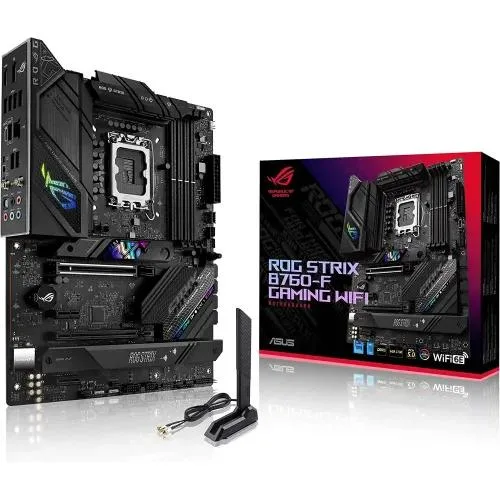

ASUS ROG STRIX B760-F GAMING WIFI DDR5 Motherboard
- Brand:Asus
- Product Code: ASUS ROG STRIX B760-F GAMING WIFI DDR5 Motherboard
- Availability:Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|---|---|
| Supported CPU | Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel B760 Chipset |
| Slots | 4 x DIMM |
| Audio | 5 x Audio jacks |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 5.0x16 slot (supports x16 mode) Intel B760 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots |
| Graphics Specifications | |
| Graphics | 1 x DisplayPort (Supports max. 8K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | 7800(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort |
| HDMI | 1 x HDMI port |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 xThunderbolt (USB4) header Back Panel I/O Ports Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 6 x USB 3.2 Gen 1 ports (6 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet |
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode Intel B660 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| USB (s) | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 6 x USB 3.2 Gen 1 ports (6 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Wireless Communication module | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.3 |
| Special | |
| Bundled Software | ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS Sound Unbound ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - Performance And Power Saving Utility - DIGI+ VRM - PC Cleaner MyAsus Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode MemTest86 |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
Description
Introduction
The ASUS ROG STRIX B760-F GAMING WIFI DDR5 Motherboard is the ultimate foundation for building a high-performance gaming PC. Designed for Intel’s 12th and 13th Gen processors, this ATX motherboard offers next-generation technologies like DDR5 memory support, PCIe 5.0, and Wi-Fi 6E for exceptional speed and efficiency. With its robust power delivery, advanced cooling solutions, and a range of connectivity options, the B760-F is ideal for gamers and enthusiasts who demand top-tier performance and reliability.
Its signature ROG Strix aesthetics, featuring customizable RGB lighting, make it a perfect fit for visually striking gaming rigs. Whether you’re an overclocking enthusiast, competitive gamer, or content creator, this motherboard delivers the tools you need to maximize your system’s potential.
People Also Ask (PAA)
1. What CPUs are compatible with the ASUS ROG STRIX B760-F?
The ASUS ROG STRIX B760-F supports Intel 12th and 13th Gen Core processors, including models like the i7-13700K and i5-12600K. It uses the LGA 1700 socket.
2. Does the motherboard support DDR5 RAM?
Yes, the B760-F is designed for DDR5 memory, supporting frequencies up to 7800+ MT/s (overclocked) for ultra-fast data transfer and system performance.
3. What kind of storage options does the B760-F offer?
The motherboard includes multiple M.2 slots (supporting PCIe 4.0 and PCIe 5.0) and six SATA 6Gbps ports, giving users flexibility for NVMe SSDs and traditional storage drives.
4. Does it have built-in Wi-Fi and Bluetooth?
Yes, the ASUS ROG STRIX B760-F features Wi-Fi 6E for ultra-fast wireless connectivity and Bluetooth 5.2 for seamless device pairing.
5. What cooling features does it have?
The motherboard includes advanced cooling solutions such as VRM heatsinks, M.2 heatsinks, hybrid fan headers, and support for AI Cooling II to ensure optimal thermal management under heavy loads.
6. Can I customize the RGB lighting?
Absolutely! The motherboard supports ASUS Aura Sync, allowing you to synchronize RGB lighting effects across compatible devices for a cohesive and vibrant gaming setup.
Use Cases and Benefits
Use Cases:
Gaming Systems: Build high-performance gaming PCs capable of handling AAA titles with ease.
Content Creation: Ideal for video editing, 3D rendering, and other resource-intensive tasks.
Overclocking Enthusiasts: Push your components to the limit with robust VRMs and comprehensive cooling solutions.
Future-Proof Builds: Enjoy next-gen features like PCIe 5.0 and DDR5 for long-term compatibility.
Benefits:
High-Speed Performance: Leverage DDR5 memory and PCIe 5.0 for lightning-fast data access and smooth multitasking.
Enhanced Connectivity: With Wi-Fi 6E, Bluetooth 5.2, and numerous USB ports (including USB 3.2 Gen 2x2 Type-C), connectivity is seamless.
Advanced Cooling: Multiple heatsinks and fan headers ensure efficient heat dissipation during intensive workloads.
Customizable Aesthetics: Aura Sync RGB lighting enables personalization to match your setup’s theme.
Stability and Durability: High-quality components ensure long-lasting performance and reliability.
Competitive Advantages
The ASUS ROG STRIX B760-F GAMING WIFI DDR5 Motherboard stands out with its comprehensive feature set and exceptional build quality. Compared to competitors like MSI or Gigabyte in the same range, the B760-F offers superior Wi-Fi 6E connectivity, better overclocking capabilities, and extensive cooling features. Its support for DDR5 and PCIe 5.0 future-proofs your system, making it a smart choice for enthusiasts looking for longevity and performance.
**ASUS ROG STRIX B760-F GAMING WIFI DDR5 Motherboard – High-Performance Motherboard for Bangladeshi Gamers**
Experience next-level gaming performance and innovation with the **ASUS ROG STRIX B760-F GAMING WIFI DDR5 Motherboard**, designed for serious gamers and PC enthusiasts in **Bangladesh**. This premium gaming motherboard is powered by the latest **Intel B760 chipset**, built to support **13th and 12th Gen Intel Core processors**, giving you unmatched compatibility for your high-performance gaming or productivity needs.
Optimised for the future of computing, the motherboard features **DDR5 memory** support, allowing you to harness blazing-fast memory speeds essential for tackling demanding games and applications. Its integrated **Wi-Fi 6E** provides seamless, lag-free internet connectivity—perfect for competitive online gaming and streaming in locations across **Dhaka, Chattogram, and beyond**.
The **ROG STRIX B760-F Gaming Motherboard** is engineered with high-quality components and advanced cooling options, ensuring optimal durability even in Bangladesh’s **hot and humid climate**. The inclusion of **multiple PCIe 5.0 slots** delivers faster data transfer rates, and it’s packed with ASUS-exclusive technologies like **AI Overclocking**, **AI Cooling**, and **Aura Sync RGB lighting**, so your rig not only performs exceptionally but also looks amazing.
For **PC builders in Bangladesh**, this motherboard features **USB 3.2 Gen 2x2**, **Thunderbolt™ 4 headers**, and ample M.2 storage slots to streamline your gaming rig’s setup and future-proof your build. Whether you're assembling a high-end gaming PC or upgrading for competitive eSports tournaments, the **ASUS ROG STRIX B760-F Gaming WIFI** delivers everything you need and more.
From Bangladeshi tech enthusiasts in **Bashundhara City Mall** to gamers at **IDB Bhaban**, this motherboard has become a go-to choice in **Bangladesh's gaming community**. If you’re searching for the perfect balance between performance, durability, and advanced features, the **ASUS ROG STRIX B760-F GAMING WIFI DDR5 Motherboard** offers unparalleled value.
**Key Features for Bangladesh Market:**
- **Intel 13th & 12th Gen CPU Support:** Optimal for heavy multitasking, gaming, and streaming.
- **Wi-Fi 6E Technology:** Enjoy ultrafast wireless connectivity—ideal for Dhaka's growing fibre internet market.
- **DDR5 Support:** Access unmatched memory speeds for intense workloads.
- **Advanced Cooling System:** Handles high temperatures typical of the local climate.
- **Aura Sync RGB:** Perfect for creating customised PC aesthetics.
Available now at leading Bangladeshi tech retailers and online platforms. Boost your gaming experience with the **ASUS ROG STRIX B760-F Gaming WIFI**—specifically tailored to meet the demands of **Bangladesh's gaming generation**.
Introducing the ASUS ROG STRIX B760-F GAMING WIFI DDR5 Motherboard, the ultimate gaming companion for Bangladeshi gamers. This high-performance motherboard is designed to enhance your gaming experience with lightning-fast DDR5 memory support and seamless WiFi connectivity. With its sleek design and top-of-the-line components, the ASUS ROG STRIX B760-F is the perfect choice for gamers in Bangladesh who demand nothing but the best. Upgrade your gaming rig today and unleash your true gaming potential with this state-of-the-art motherboard. Order now and experience a whole new level of gaming excitement!
The ASUS ROG STRIX B760-F GAMING WIFI DDR5 Motherboard is the ultimate choice for gamers in Bangladesh looking for top-notch performance and reliability. This motherboard is designed to support the latest DDR5 memory technology, ensuring seamless gameplay and lightning-fast speeds. Equipped with WiFi capabilities, gamers can enjoy lag-free online gaming sessions. With its sleek design and ASUS ROG branding, this motherboard is perfect for creating a high-performance gaming rig that will impress all your friends. Upgrade your gaming experience with the ASUS ROG STRIX B760-F GAMING WIFI DDR5 Motherboard and dominate the competition in Bangladesh.
