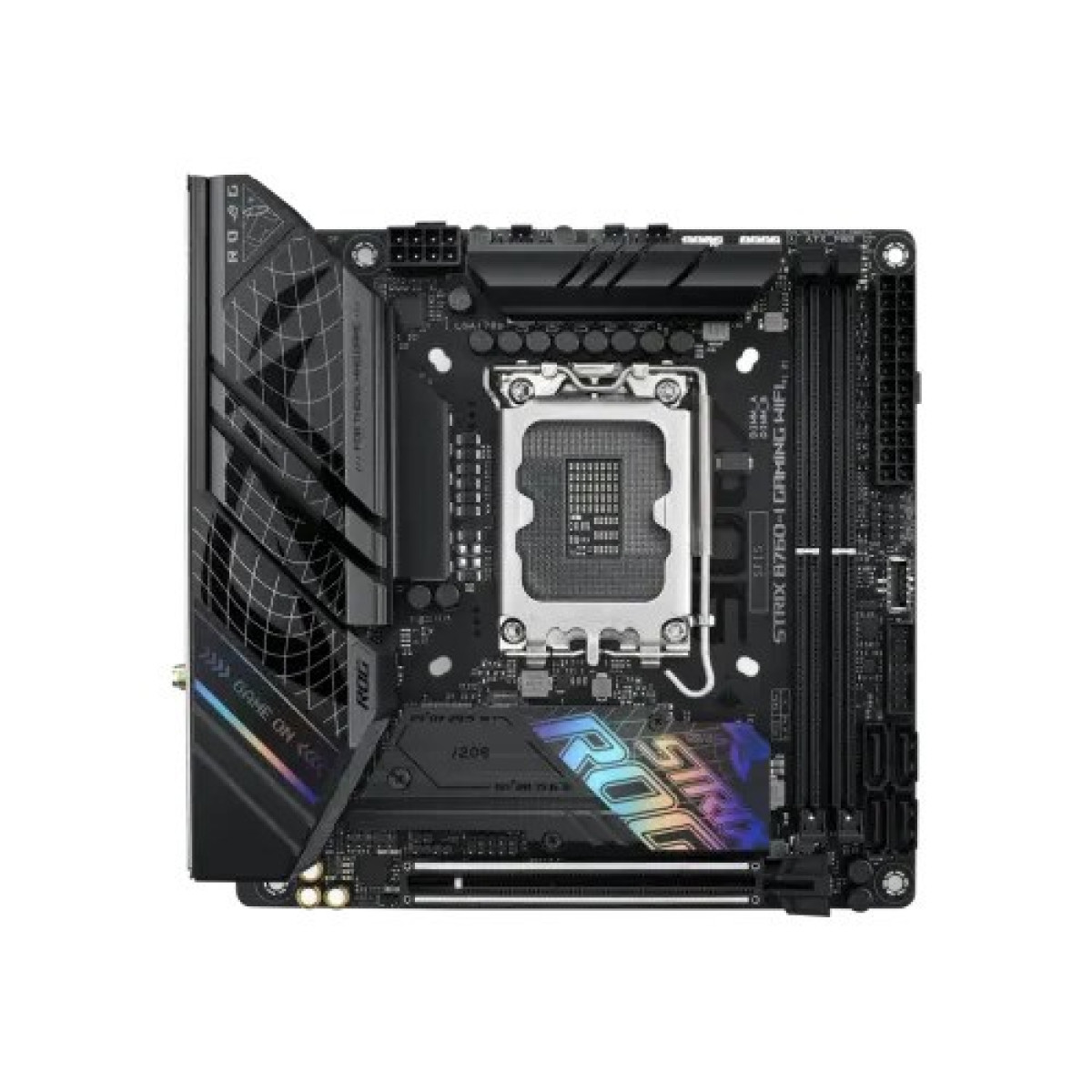

Asus ROG STRIX B760-I GAMING WIFI Mini-ITX Motherboard
- Brand:Asus
- Product Code: ROG STRIX B760-I GAMING WIFI
- Availability:Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Audio Features | Audio ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Premium audio capacitors * Due to limitations in HAD bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
|---|---|
| Form Factor | Mini-ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm ) |
| Raid controller | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Supported CPU | Intel Socket LGA1700 for 14th 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel B760 Chipset |
| Slots | 2 x DIMM |
| Audio | 5 x Audio jacks |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Connectivity | |
| HDMI | 1 x HDMI |
| Expansion Slots | |
| PCI | Intel 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot |
| Graphics Specifications | |
| Graphics | 1 x DisplayPort** 1 x HDMI*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Support 4K@60Hz as specified in DisplayPort 1.4 *** Support 4K@60Hz as specified in HDMI 2.1. |
| Memory Specifications | |
| Maximum Memory | Max. 96GB |
| Supported Memory | 7600(OC)/ 7466(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chasis Fan header 1 x 4-pin AIO Pump header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 headers support additional 2 USB 2.0 ports Miscellaneous 1 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| USB (s) | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C) 3 x USB 2.0 ports (3 x Type-A) Front USB (Total 5 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
| Wireless Communication module | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.3 |
| Special | |
| Bundled Software | ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation - Power Saving AI Suite 3 - Performance And Power Saving Utility PC Cleaner DIGI+ VRM MyAsus Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode MemTest86 |
| Special Feature | Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate ASUS EZ DIY -CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - Aura RGB header - Addressable Gen 2 header |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
Description
Asus ROG STRIX B760-I GAMING WIFI Mini-ITX Motherboard Overview
The Asus ROG STRIX B760-I GAMING WIFI Mini-ITX Motherboard is a powerhouse component designed for gamers and enthusiasts who demand high performance and reliability from their systems. This compact motherboard packs an array of features that cater to the modern gaming experience, making it an ideal choice for building small form factor PCs without compromising on performance.
Superior Performance: With support for Intel's 12th and 13th Gen processors, this motherboard harnesses the power of the latest CPU technologies to deliver exceptional gaming and multitasking capabilities. The B760 chipset ensures that you can push your hardware to its limits while enjoying a smooth and responsive experience.
Enhanced Connectivity: The motherboard features integrated Wi-Fi 6E, allowing for lightning-fast wireless connections and reduced latency during online gaming. Additionally, the inclusion of multiple USB 3.2 Gen 2 ports ensures that you can connect all your peripherals with ease, making this motherboard an all-in-one solution for your gaming rig.
Benefits and Use Cases
Whether you're a competitive gamer looking to gain an edge or a content creator needing to handle intensive tasks, the Asus ROG STRIX B760-I is up to the challenge. The compact Mini-ITX form factor is perfect for small cases, enabling you to create a sleek, space-saving build that still boasts powerful performance. Furthermore, the motherboard supports DDR5 memory, offering higher speeds and improved efficiency, which is crucial for demanding applications.
Why Customers Should Buy This Product: Customers in Jashore, Bangladesh, looking for a high-quality motherboard that delivers on multiple fronts will find that the Asus ROG STRIX B760-I GAMING WIFI stands out from the competition. Its combination of advanced features, top-notch build quality, and reliable performance make it a smart investment for anyone serious about gaming or computing. Plus, with local support and availability through Unix Network, you can rest assured that your purchase is backed by expert assistance.
