ASUS ROG STRIX Z490-H GAMING Motherboard for Gamers
Key highlights
- Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Supported CPU: Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Chipset: Intel Z490
- Memory: 128 GB
- Slots: 4 x DDR4 DIMM
Description
Powerful Intel 10th Gen ATX Motherboard in Jashore

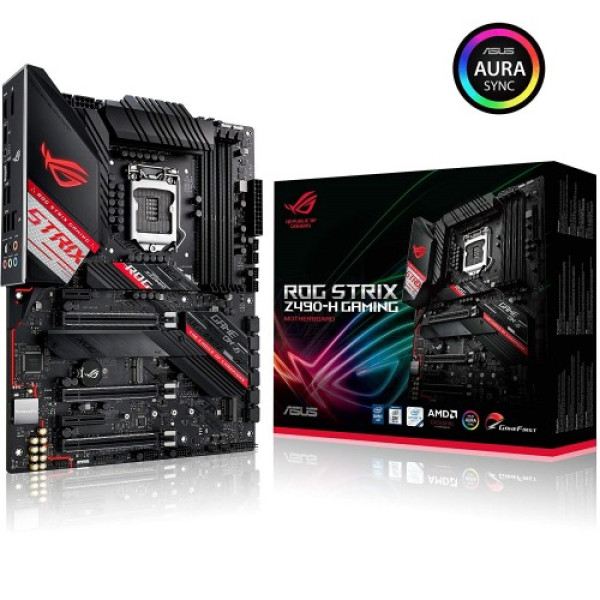

ASUS ROG STRIX Z490-H GAMING Intel 10th Gen ATX Motherboard
The ASUS ROG STRIX Z490-H GAMING motherboard is engineered for gamers and enthusiasts who demand top performance from their systems. Designed for Intel's 10th generation processors, this ATX motherboard features a robust power delivery system, ensuring stable operation even during intense gaming sessions. The dual M.2 slots allow for lightning-fast storage solutions, while the PCIe 4.0 support future-proofs your setup, providing immense bandwidth for high-speed graphics cards and other peripherals.
With advanced cooling options, including multiple fan headers and an efficient heatsink design, the Z490-H ensures that your components stay cool under pressure. The Aura Sync RGB lighting adds a personalized touch to your build, allowing you to synchronize lighting effects across all compatible devices. The intuitive BIOS interface makes overclocking and system tuning straightforward, empowering users to maximize their system's potential.
This motherboard also boasts extensive connectivity options, including USB 3.2 Gen 2 ports and HDMI output, making it a versatile choice for any gaming or productivity setup. Experience unparalleled performance and aesthetics with the ASUS ROG STRIX Z490-H GAMING motherboard.
Enhance Your Gaming with ASUS ROG STRIX Z490-H
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Supported CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel Z490 |
| Memory | 128 GB |
| Slots | 4 x DDR4 DIMM |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input Audio Feature : - SupremeFX Shielding Technology - Gold-plated jacks - Optical S/PDIF in port(s) at back panel - LED-lit Audio Shielding - Premium Japanese audio capacitors - Audio Cover |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel Z490 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) |
| PCI | Intel 10th Gen Processors 3 x PCIe 3.0 x16 (x16 or x8+x4+x4) Intel Z490 Chipset 1 x PCIe 3.0 x4 (max at x2 mode) 1 x PCIe 3.0 x1 |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor 1 x DisplayPort 1.4 1 x HDMI 1.4b Supports AMD 2-Way CrossFireX Technology |
| Memory Specifications | |
| Supported Memory | 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory OptiMem II |
| Type | Dual Channel Memory Architecture |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort 1.4 |
| HDMI | 1 x HDMI 1.4b |
| LAN Port (s) | Intel I225-V 2.5Gb Ethernet ASUS LANGuard |
| Supported Storage | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel Z490 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Optane Memory Ready |
| USB (s) | Rear USB Port ( Total 7 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A + USB Type-C) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 1 x USB 2.0 port(s) Front USB Port ( Total 8 ) 4 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) |
| Internal I/O Connectors | 1 x M.2_FAN connector 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Addressable RGB header 1 x AAFP connector 2 x Aura RGB Strip Headers 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 1 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 with E key for Wi-Fi module 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x CPU_OV jumper 1 x VRM_HS_FAN Header |
| WARRANTY | |
| Manufacturing Warranty | 03 Years |
