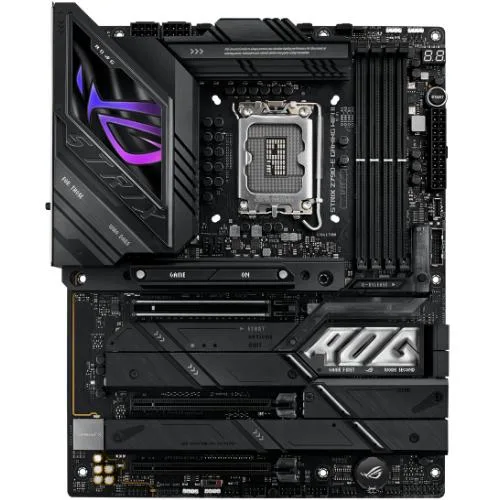

ASUS ROG STRIX Z790-E GAMING WIFI II DDR5 ATX Motherboard

BASIC INFORMATION
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Supported CPU	Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel Z790 Chipset
Slots	4 x DIMM
Audio	5 x Gold-plated audio jacks
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Expansion Slots
M.2 Socket	5 x M.2 slots
PCI	Intel CoreTM Processors (14th & 13th & 12th Gen) 1 x PCIe 5.0 x16 slot (support x16 mode) Intel Z790 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode)
Graphics Specifications
Graphics	Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1.
Memory Specifications
Maximum Memory	192GB
Supported Memory	8000+(OC)/7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) memory module Supports DIMM Flex OptiMem II ASUS Enhanced Memory Profile II (AEMP II)
Type	DDR5
PORTS, CONNECTORS & SLOTS
Display Port (s)	1 x DisplayPort
HDMI	1 x HDMI port
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge) 2 x USB 5Gbps headers support 4 additional USB 5G ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Alternation PCIe Mode Switch 1 x AURA RGB header 1 x CPU over voltage jumper 1 x Front panel audio header (F_AUDIO) 1 x Start button 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header
LAN Port (s)	1 x Intel 2.5Gb Ethernet ASUS LANGuard
Supported Storage	Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports Intel CoreTM Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
USB (s)	Rear USB (Total 12 ports) 1 x USB 20Gbps port (1 x USB Type-C) 11 x USB 10Gbps ports (10 x Type-A + 1 x USB Type-C) Front USB (Total 11 ports) 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge )** 2 x USB 5GGps headers support 4 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A ** USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A
Wireless Communication module	Intel Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Support Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate. Bluetooth® v5.4
Special
Bundled Software	ROG Exclusive Software - ROG CPU-Z - DTS Sound Unbound ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - Power Saving - Sonic Studio - Two-Way AI Noise Cancellation AI Suite 3 - Easy Optimization with AI Overclocking - TPU - DIGI+ VRM - Turbo app - PC Cleaner MyAsus USB Wattage Watcher Intel Unison Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey FlexKey MemTest86
WARRANTY
Manufacturing Warranty	3 years warranty

The ASUS GAMING WIFI II Motherboard is a feature-rich device that seamlessly blends style and substance. In addition to being a useful part, the has an eye-catching multi-layered I/O shroud and impressive VRM cooling. Up to 192GB of DDR5 RAM may be supported with overclocked speeds of 8000+ (O.C.), providing improved DDR5 performance. This guarantees it will function flawlessly even with the most taxing apps and multitasking settings. Designed with the DIY enthusiast in mind, the Q-Design feature set simplifies the building and upgrading process. This includes user-friendly components and layouts that make assembly straightforward, even for less experienced builders. The ROG Strix Z790-E II supports 14th, 13th, and 12th Gen Intel Processors with its LGA1700 socket, providing a wide range of options for current and future upgrades. For graphics output, it offers one HDMI port and one DisplayPort, allowing for versatile display configurations. Connectivity is a standout feature, with an Intel 2.5Gb Ethernet port ensuring fast and reliable wired network connections. Additionally, Intel Wi-Fi 7 support provides cutting-edge wireless connectivity, delivering high-speed internet access and reducing latency for gaming and streaming. The ASUS ROG STRIX Z790-E GAMING WIFI II DDR5 ATX Motherboard combines top-tier performance, innovative features, and aesthetic appeal, making it an ideal choice for gamers, enthusiasts, and professionals looking to build a high-performance PC. In Bangladesh, you can get original From Unix Network. We have a large collection of latest to purchase for your . Order Online Or Visit your Nearest Shop to get yours at lowest price. The ASUS ROG MAXIMUS Z790 HERO BTF Motherboard comes with 3 years warranty.

Are you in search of a high-quality motherboard that is designed for top-notch performance and speed? Look no further than the ASUS ROG STRIX Z790-E GAMING WIFI II DDR5 ATX Motherboard. This cutting-edge motherboard is the perfect choice for computer users and students alike who are looking to elevate their gaming or productivity experience.

With its superior features, the ASUS ROG STRIX Z790-E GAMING WIFI II DDR5 ATX Motherboard stands out from the competition. This motherboard is equipped with the latest DDR5 technology, ensuring faster data transfer speeds and seamless multitasking capabilities. Whether you are gaming, streaming, or working on intensive projects, this motherboard will keep up with your demands without skipping a beat.

The quality of the ASUS ROG STRIX Z790-E GAMING WIFI II DDR5 ATX Motherboard is unmatched. Made with durable materials and precision engineering, this motherboard is built to last and withstand even the most demanding tasks. You can trust that this motherboard will provide you with reliable performance for years to come.

Designed with the user in mind, the ASUS ROG STRIX Z790-E GAMING WIFI II DDR5 ATX Motherboard features a user-friendly interface that makes installation and setup a breeze. Its intuitive design allows for easy customization and optimization of your system, giving you complete control over your gaming or work setup.

When it comes to speed, the ASUS ROG STRIX Z790-E GAMING WIFI II DDR5 ATX Motherboard delivers. With lightning-fast data transfer speeds and minimal latency, you can expect smooth and lag-free performance every time you power on your system. Say goodbye to frustrating delays and hello to seamless computing with this powerhouse motherboard.

Visit our Sales & Service shop, Unix Network in Jashore, Bangladesh, to experience the power and performance of the ASUS ROG STRIX Z790-E GAMING WIFI II DDR5 ATX Motherboard for yourself. Upgrade your system today and take your gaming or work experience to the next level.

Introducing the ASUS ROG STRIX Z790-E GAMING WIFI II DDR5 ATX Motherboard, the ultimate choice for computer users and students looking to elevate their gaming and productivity experience. This high-quality motherboard boasts a plethora of cutting-edge features designed to deliver top-notch performance, speed, and reliability for all your computing needs.

Equipped with the latest DDR5 memory technology, the ASUS ROG STRIX Z790-E GAMING WIFI II ensures lightning-fast data transfer speeds, enabling you to multitask seamlessly and handle intensive tasks with ease. Say goodbye to lag and slow loading times – this motherboard is built to keep up with your demanding workload.

Designed with gamers in mind, this motherboard boasts an array of advanced features that enhance your gaming experience. From customizable RGB lighting to support for multi-GPU configurations, the ASUS ROG STRIX Z790-E GAMING WIFI II has everything you need to take your gaming to the next level. Immerse yourself in stunning visuals and crisp sound quality, thanks to the built-in audio and graphics enhancements.

In terms of performance, the ASUS ROG STRIX Z790-E GAMING WIFI II truly stands out from the competition. Featuring an optimized power delivery system and top-of-the-line components, this motherboard ensures stable operation and reliable performance under heavy workloads. Whether you're editing videos, running virtual machines, or playing the latest AAA titles, you can count on the ASUS ROG STRIX Z790-E GAMING WIFI II to deliver the speed and efficiency you need.

Don't settle for anything less than the best – choose the ASUS ROG STRIX Z790-E GAMING WIFI II DDR5 ATX Motherboard for unparalleled quality, performance, and speed. Upgrade your computing experience today and unlock the full potential of your system. Visit Unix Network in Jashore, Bangladesh, to get your hands on this powerhouse motherboard and revolutionize the way you use your computer.

The ASUS ROG STRIX Z790-E GAMING WIFI II DDR5 ATX Motherboard is the ultimate motherboard for computer users and students seeking top-notch quality, unbeatable performance, and lightning-fast speed. Designed with cutting-edge technology and innovative features, this motherboard is guaranteed to take your computing experience to the next level.

Featuring the latest DDR5 memory support, the ASUS ROG STRIX Z790-E GAMING WIFI II is capable of delivering unparalleled speeds and performance. Whether you are gaming, streaming, or working on complex tasks, this motherboard will ensure a seamless and lag-free experience every time.

Equipped with advanced Wi-Fi capabilities, you can enjoy ultra-fast wireless connectivity without any interruptions. Say goodbye to lag and buffering while streaming movies or playing online games – the ASUS ROG STRIX Z790-E GAMING WIFI II ensures a stable and reliable connection for all your online activities.

Designed with quality and durability in mind, this motherboard is built to last. ASUS is known for producing high-quality products that stand the test of time, and the ASUS ROG STRIX Z790-E GAMING WIFI II is no exception. You can trust that this motherboard will continue to deliver outstanding performance for years to come.

With its sleek and modern design, the ASUS ROG STRIX Z790-E GAMING WIFI II is sure to enhance the aesthetic of your computer setup. Whether you are a student looking to impress your classmates or a professional seeking a stylish and powerful motherboard, this ASUS motherboard will not disappoint.

If you are in the market for a high-quality, high-performance motherboard that is designed for speed and efficiency, look no further than the ASUS ROG STRIX Z790-E GAMING WIFI II DDR5 ATX Motherboard. Visit Unix Network in Jashore, Bangladesh, today to purchase this powerhouse motherboard and take your computing experience to new heights.
