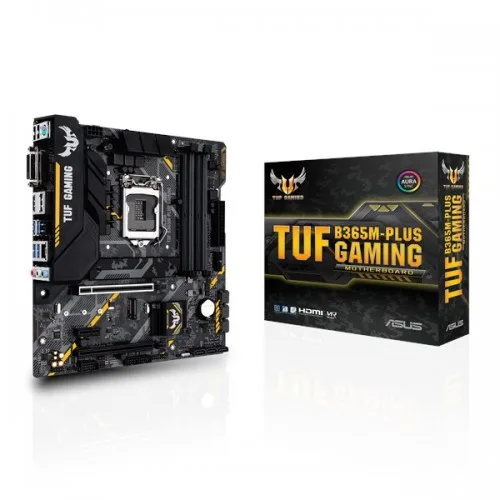

Asus TUF B365M-Plus Gaming LGA1151 9TH Gen Micro ATX Motherboard
- Brand:Asus
- Product Code: Asus TUF B365M-Plus Gaming
- Availability:Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | mATX Form Factor 9.6 inch x 9.5 inch ( 24.4 cm x 24.1 cm ) |
|---|---|
| Supported CPU | Intel Socket 1151 9th / 8th Gen Intel® Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 |
| Chipset | Intel B365 |
| Memory | 64GB |
| Slots | 4 x DIMM DDR4 |
| Audio | Realtek ALC1200 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified log, F6 Qfan Control, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) |
| PCI | 1 x PCIe 3.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (max at x4 mode) 1 x PCIe 3.0/2.0 x1 |
| Graphics Specifications | |
| Max Shared Memory | Maximum shared memory of 1024 MB (for iGPU exclusively) |
| Graphics | Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/DVI-D/DisplayPort ports Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider Supports AMD CrossFireX Technology Supports up to 3 displays simultaneously |
| Memory Specifications | |
| Supported Memory | DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors |
| Type | Dual Channel Memory Architecture |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort 1.2 resolution 4096 x 2304 @ 60 Hz |
| DVI-D (s) | 1 x DVI-D resolution 1920 x 1200 @ 60 Hz |
| HDMI | 1 x HDMI resolution 4096 x 2160 @ 30 Hz |
| LAN Port (s) | Intel I219V, 1 x Gigabit LAN TUF LANGuard |
| Supported Storage | 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 5, 10 Intel Optane Memory Ready |
| USB (s) | Intel B365 Chipset : 6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board) Intel B365 Chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board) |
| Internal I/O Connectors | 1 x Addressable RGB header 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin, moss green) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector |
| Special | |
| Special Feature | ASUS TUF PROTECTION - ASUS ESD Guard: Enhanced ESD protection - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: Precision control for stable power - ASUS Safe Slot core+: PCIe slot fortified with a stainless-steel brace ASUS OptiMem： - Optimem (Improved DDR4 stability) ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite 3 - Ai Charger - PC Cleaner ASUS Quiet Thermal Solution : - Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink & M.2 Heat-sink solution - ASUS Fan Xpert 2+ ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) |
| WARRANTY | |
| Manufacturing Warranty | 03 Years |
Description
Unleash Your Gaming Potential with the Asus TUF B365M-Plus Gaming Motherboard
The Asus TUF B365M-Plus Gaming LGA1151 Micro ATX Motherboard is engineered to offer a robust foundation for your gaming rig. Designed with gamers in mind, this motherboard incorporates cutting-edge technology and durable components to ensure an exceptional gaming experience. With support for 9th Generation Intel processors, it delivers impressive performance, allowing you to tackle the latest games with ease. Experience superior stability and longevity thanks to its TUF components, which are rigorously tested to meet military-grade standards.
One of the standout features of the B365M-Plus is its comprehensive cooling solutions. With multiple fan headers and fan controls, you can maintain optimal temperatures during intense gaming sessions. Additionally, the motherboard supports DDR4 RAM up to 2666 MHz, providing the bandwidth necessary for high-speed multitasking and gaming. Its Intel Optane Memory support enhances storage performance, ensuring faster load times and smoother gameplay.
Connectivity is another strong point, with USB 3.1 Gen 2 ports and M.2 slots for rapid data transfer and expansion options. The TUF B365M-Plus is also compatible with a wide range of components, making it an excellent choice for both novice builders and seasoned enthusiasts. Backed by a 3-year warranty, this motherboard stands as a reliable choice for those looking to invest in their gaming setup.
