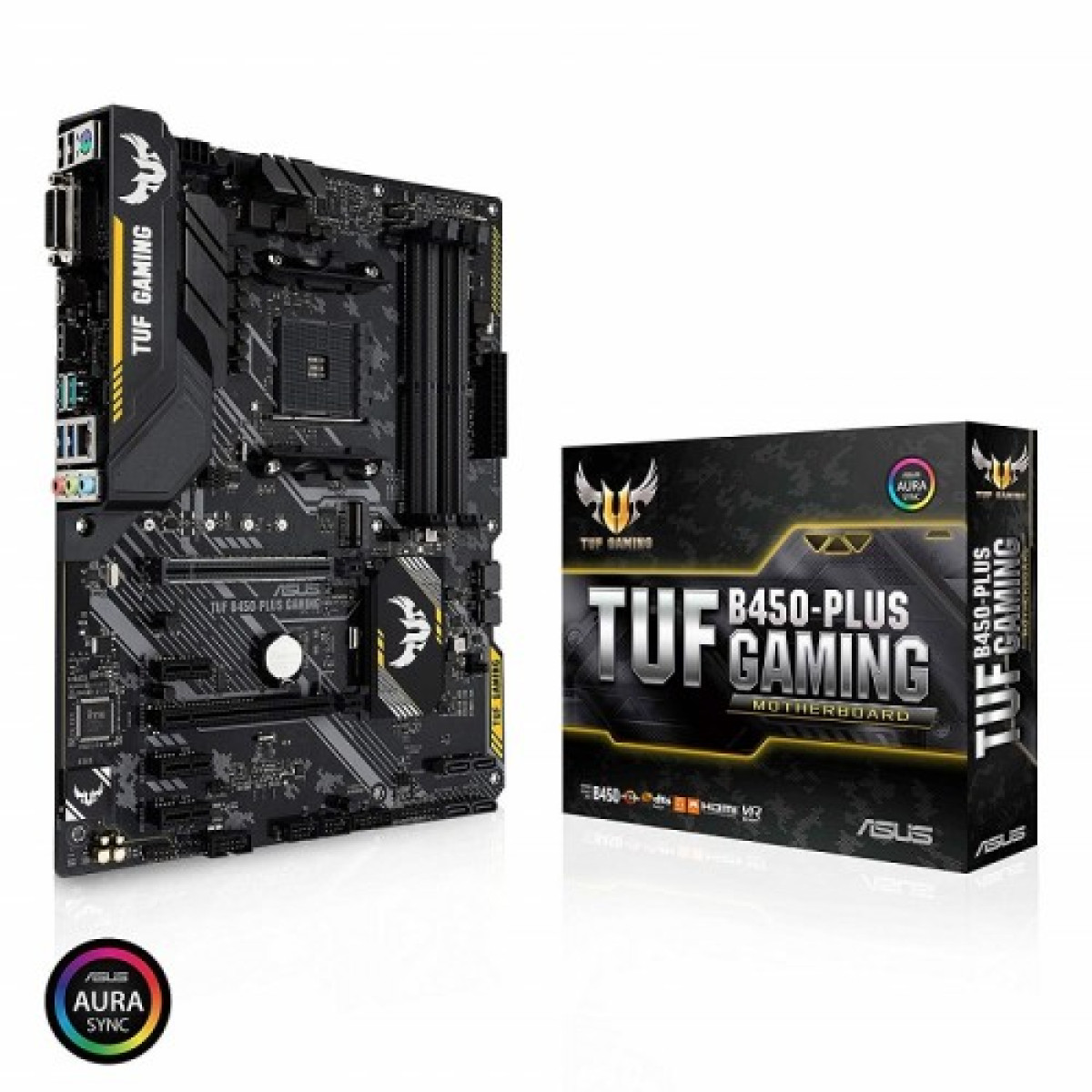

Asus TUF B450-PLUS GAMING AMD ATX Motherboard
- Brand:Asus
- Product Code: TUF B450-PLUS GAMING
- Availability:Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|---|---|
| Graphics | Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz |
| Supported CPU | AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors Supports CPU up to 8 cores |
| Slots | 4 x DIMM |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Type | Dual Channel DDR4 Memory Technology |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode) |
| PCI | AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD Ryzen™ with Radeon™ Vega Graphics Processor 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD Athlon™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x4 mode) AMD B450 chipset 1 x PCIe 2.0 x16 (max at x4 mode) 3 x PCIe 2.0 x1 |
| Memory Specifications | |
| Maximum Memory | 64 GB |
| Supported Memory | DDR4 3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory |
| PORTS, CONNECTORS & SLOTS | |
| DVI-D (s) | 1 xDVI-D |
| HDMI | 1 x HDMI port |
| USB (s) | AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A) AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-CTM) AMD B450 chipset : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A) AMD B450 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) AMD B450 chipset : 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board) |
| WARRANTY | |
| Manufacturing Warranty | 03 years |
Description
Asus TUF B450-PLUS GAMING AMD ATX Motherboard Overview
The Asus TUF B450-PLUS GAMING motherboard is designed for gamers and PC enthusiasts who demand stability, performance, and durability. Built on the AMD B450 chipset, this motherboard supports the latest Ryzen processors, ensuring top-tier performance for gaming and multitasking. With its ATX form factor, it fits comfortably into most standard cases, offering ample room for expansion and upgrades.
Benefits of Choosing Asus TUF B450-PLUS
This motherboard features a robust design, including military-grade components, which enhance its longevity and reliability. Customers benefit from its superior thermal management, thanks to TUF components that ensure optimal cooling during extended gaming sessions. The motherboard supports dual-channel DDR4 memory, allowing for faster speeds and improved performance in memory-intensive applications.
Use Cases
For gamers, the Asus TUF B450-PLUS offers an exceptional platform for building a powerful gaming rig. With support for multiple graphics cards in CrossFire configuration, users can enhance their gaming visuals and frame rates. Additionally, the motherboard’s built-in RGB lighting adds a personalized touch to any gaming setup.
Why Buy the Asus TUF B450-PLUS?
Investing in the Asus TUF B450-PLUS GAMING motherboard means choosing a product that combines cutting-edge technology with user-friendly features. With easy BIOS updates, a straightforward installation process, and comprehensive customer support in Bangladesh, this motherboard is an excellent choice for both novice builders and experienced gamers. Its competitive pricing in the local market makes it a smart investment for anyone looking to build a reliable and high-performance gaming PC.
