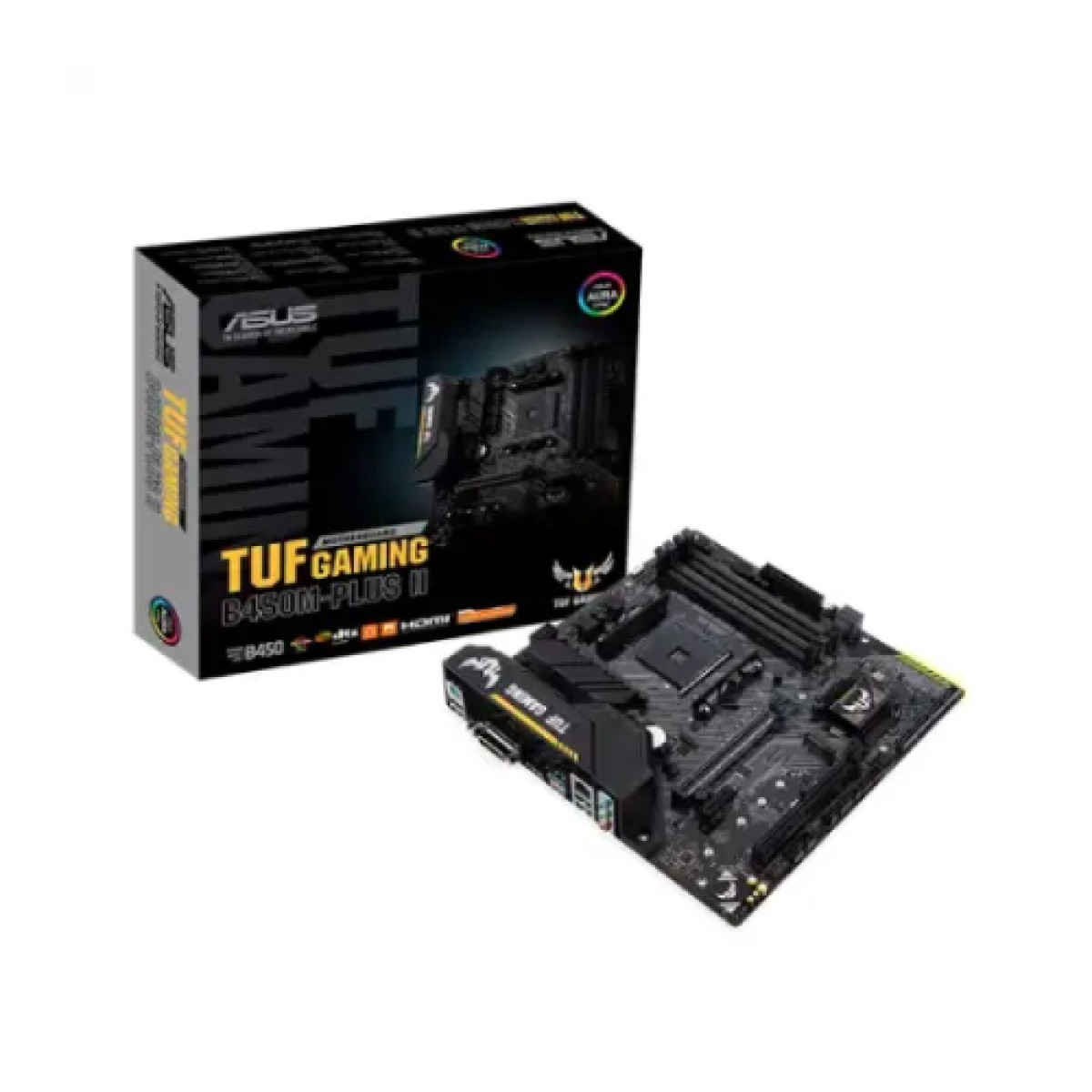

ASUS TUF GAMING B450M-PLUS II AMD AM4 Micro-ATX Gaming Motherboard
- Brand: Asus
- Product Code: TUF GAMING B450M-PLUS II
- Availability: Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
|---|---|
| Supported CPU | AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors |
| Chipset | AMD B450 |
| Slots | 4 x DIMM |
| Audio | 3 x Audio jack(s) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| PCI | 3rd/2nd/1st Gen AMD Ryzen Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) Athlon™ with Radeon Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (max at x4 mode) AMD B450 chipset 1 x PCIe 2.0 x16 (x4 mode) 1 x PCIe 2.0 x1 |
| Graphics Specifications | |
| Graphics | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors 1 x HDMI port 1 x DVI-D |
| Memory Specifications | |
| Maximum Memory | Max. 128GB |
| Supported Memory | 4400(O.C)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3533(O.C)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI port |
| Internal I/O Ports | 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x Aura RGB Strip Header 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector |
| LAN Port (s) | Realtek RTL8111H 1Gb Ethernet TUF LANGuard |
| Supported Storage | Total supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support*1 Athlon with Radeon Vega Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode) 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors : 2 x SATA 6Gb/s port(s) |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header |
| USB (s) | Rear USB Port ( Total 6 ) 1 x USB 3.2 Gen 2 port(s)(1 x Type-A) 3 x USB 3.2 Gen 1 port(s)(2 x Type-A +1 x Type-C) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) |
| Special | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - AI Noise-Canceling Microphone AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update - PC Cleaner TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Special Feature | ASUS TUF PROTECTION - ASUS DIGI+ VRM - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - TUF LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED AURA Sync - AURA RGB header |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
Description
ASUS TUF GAMING B450M-PLUS II: A Reliable Choice for Gamers
The ASUS TUF GAMING B450M-PLUS II is a Micro-ATX motherboard designed specifically for gamers who prioritize durability and performance. Built on the AMD AM4 platform, this motherboard supports AMD Ryzen processors, ensuring that you have the power needed for both gaming and productivity tasks. The robust design incorporates military-grade components, enhancing its reliability and longevity, a crucial factor for gamers who demand stability during intense gaming sessions.
Key Benefits:
- Durable Build: The use of military-grade capacitors and TUF components ensures that this motherboard can withstand the rigors of heavy gaming.
- Enhanced Cooling System: Featuring comprehensive cooling options, including fan headers and a heatsink, it maintains optimal temperatures even during long gaming sessions.
- Excellent Connectivity: With multiple USB 3.1 Gen 2 ports and M.2 slots, you can connect various devices and storage solutions to enhance your gaming experience.
- Audio Performance: Equipped with high-quality audio capacitors, it delivers immersive sound that adds depth to your gaming experience.
- Easy Installation: The user-friendly design and layout make installation straightforward, catering to both novice and experienced builders.
This motherboard is perfect for gamers who want a reliable and powerful foundation for their gaming rig. It is also suitable for content creators and professionals who require a multi-functional board that can handle demanding applications. The ASUS TUF GAMING B450M-PLUS II is a fantastic choice for anyone looking to build a mid-range gaming PC without compromising on quality or performance.
In Bangladesh, where gaming has become increasingly popular, the ASUS TUF GAMING B450M-PLUS II stands out due to its competitive pricing and availability. Purchasing from local shops like Unix Network ensures that you receive prompt customer service and support, making your buying experience seamless.
