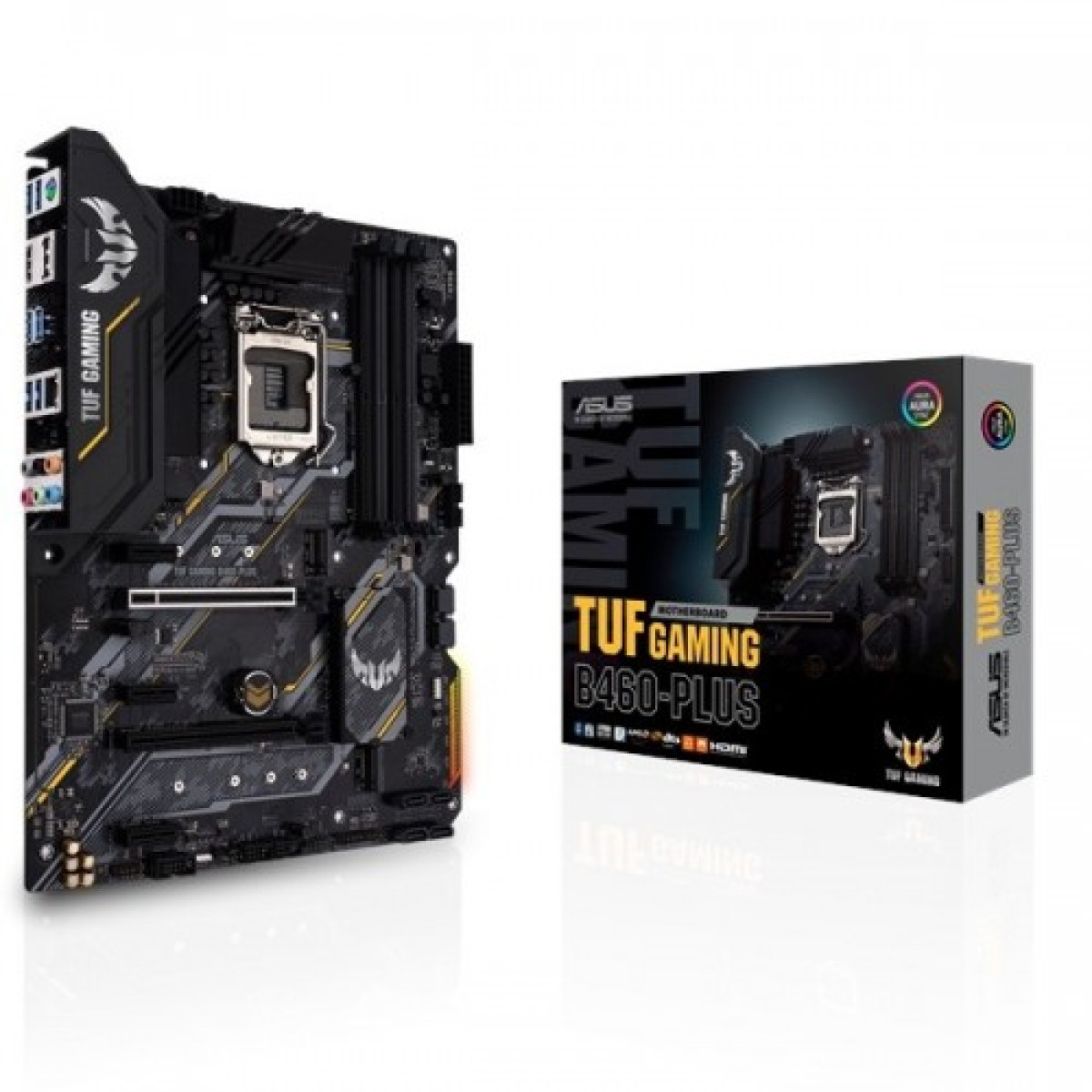

Asus TUF Gaming B460-Plus Intel 10th Gen ATX Motherboard
- Brand: Asus
- Product Code: Asus TUF Gaming B460-Plus
- Availability: Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | ATX Form Factor: 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm) |
|---|---|
| Supported CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel B460 Express Chipset |
| Memory | 128 GB |
| Slots | 4 x DDR4 DIMM |
| Audio | Realtek ALC S1200A 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | Intel® B460 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) |
| PCI | Intel 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) Intel B460 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor 1 x DisplayPort 1.4 1 x HDMI 1.4b Supports AMD 2-Way CrossFireX Technology |
| Memory Specifications | |
| Supported Memory | Support for DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem |
| Type | Dual channel memory architecture |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort 1.4 |
| HDMI | 1 x HDMI 1.4b |
| LAN Port (s) | Intel I219-V 1Gb Ethernet |
| Supported Storage | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel B460 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane Memory Ready |
| USB (s) | Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 port(s) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) |
| Internal I/O Connectors | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header |
| Special | |
| Special Feature | Software Features: ASUS Exclusive Software Armoury Crate - Aura Sync AI Suite 3 - Performance And Power Saving Utility Digi+ VRM EPU Fan Xpert 4 - EZ update - PC Cleaner - System Information AI Charger ASUS Turbo LAN DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) DAEMON Tools Google Chrome Browser & Google Toolbar TUF GAMING CPU-Z WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Special Features: ASUS TUF PROTECTION - ASUS DIGI+ VRM - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core+ - ASUS Stainless-Steel Back I/O ASUS Q-Design : - ASUS Q-DIMM - ASUS Q-Slot - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution: - Aluminum heatsink design ASUS EZ DIY - Box Headers AURA Sync - Standard RGB headers |
| WARRANTY | |
| Manufacturing Warranty | 03 Years |
Description
Experience Unmatched Gaming Performance
The Asus TUF Gaming B460-Plus Intel 10th Gen ATX Motherboard is designed for gamers and tech enthusiasts who demand reliability and superior performance. With its military-grade components, this motherboard ensures long-lasting durability and outstanding performance under pressure. The B460-Plus supports Intel's 10th generation processors, allowing for lightning-fast computing and seamless multitasking. Enhanced thermal performance is achieved through its efficient cooling design, which includes multiple fan headers and a dedicated heatsink for the VRM area, ensuring that your system remains cool even during intense gaming sessions.
This motherboard is equipped with dual M.2 slots, providing ample storage options for high-speed SSDs, and supports up to 128GB of DDR4 memory, giving you the freedom to upgrade your system as your gaming needs evolve. Its easy-to-use BIOS interface makes overclocking and system tuning a breeze, whether you're a novice or an expert.
With its robust build quality and extensive connectivity options, including USB 3.2 and HDMI, the Asus TUF Gaming B460-Plus is the perfect foundation for your gaming rig, ensuring you stay ahead of the competition.
