Key highlights
- Form Factor: ATX Form Factor: 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Graphics: 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60HZ) Supports AMD 2-Way CrossFireX Technology
- Supported CPU: AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Chipset: AMD B550
- M.2 Socket: 1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCIE 3.0 x4 and SATA modes) storage devices support
Description

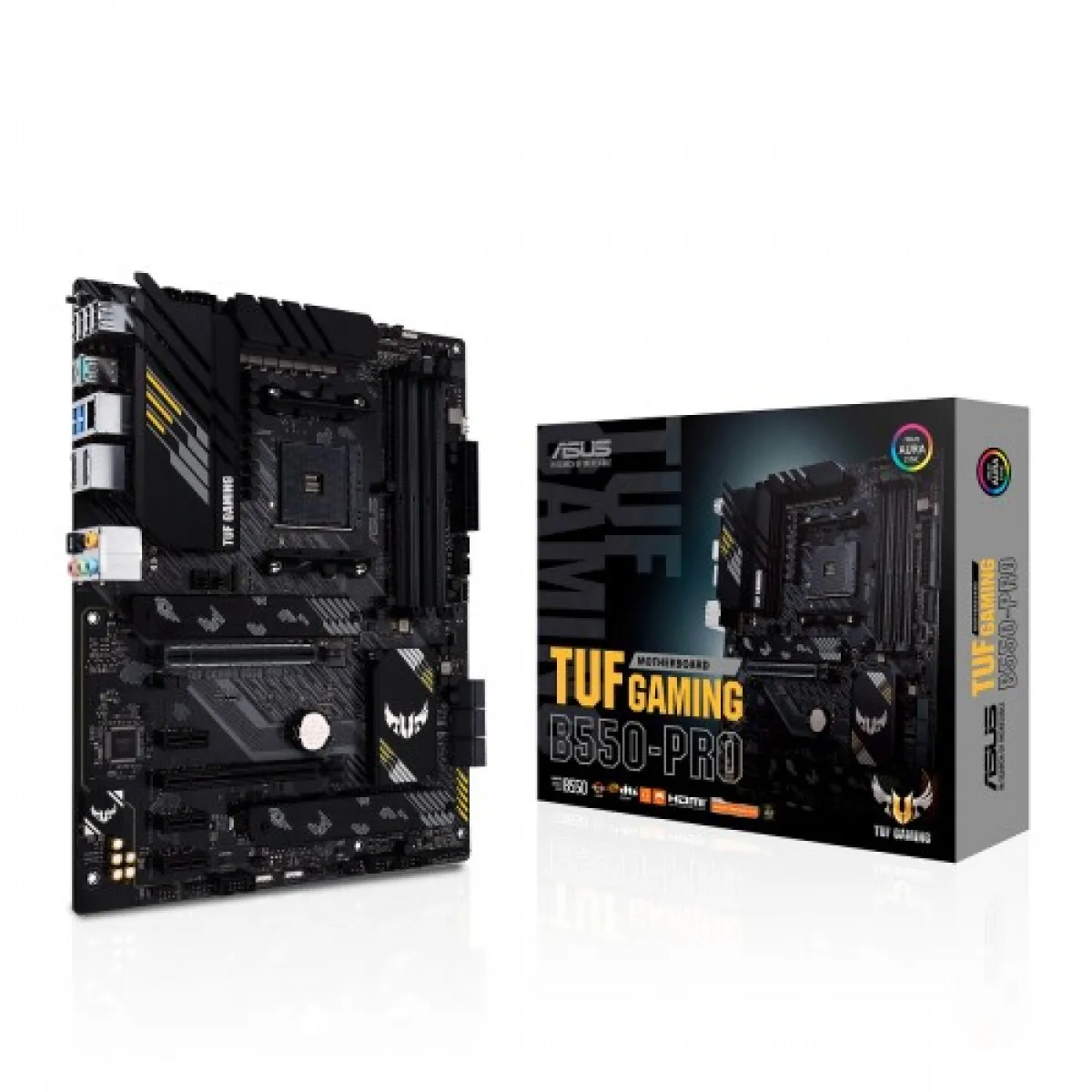

High Performance Asus TUF B550 Pro Motherboard Features
Elevate Your Gaming Experience with the Asus TUF Gaming B550 Pro
The Asus TUF Gaming B550 Pro ATX AM4 Motherboard is designed for gamers who demand durability and performance. With its robust build quality and advanced features, this motherboard is the perfect choice for your high-performance gaming rig. Featuring the AMD B550 chipset, it supports the latest Ryzen 5000 series processors, offering unmatched processing power and efficiency.
Equipped with PCIe 4.0 support, the B550 Pro ensures lightning-fast data transfer speeds, making it ideal for gaming and content creation. The motherboard also features dual M.2 slots for NVMe SSDs, allowing you to experience rapid loading times and system responsiveness. Its Comprehensive Cooling Solutions include multiple fan headers and heatsinks to keep your system running cool even during intense gaming sessions.
Additionally, the Asus TUF Gaming B550 Pro is built to last, with military-grade components and an extensive warranty, ensuring peace of mind for long-term use. Whether you are a casual gamer or a hardcore enthusiast, this motherboard delivers the performance and reliability you need to conquer the competition.
Why Choose the Asus TUF Gaming B550 Pro ATX Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor: 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Graphics | 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60HZ) Supports AMD 2-Way CrossFireX Technology |
| Supported CPU | AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Chipset | AMD B550 |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCIE 3.0 x4 and SATA modes) storage devices support |
| PCI | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 (x16 mode) AMD Ryzen 4000 G-Series Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 |
| Memory Specifications | |
| Slots | 4 x DIMM |
| Supported Memory | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 4600(O.C)/ 4400(O.C)/ 4333(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory AMD Ryzen 4000 G-Series Processors 5100(O.C)/ 4866(O.C)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4333(O.C.)/ 4266(O.C.)/ 4200(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort 1.2 |
| HDMI | 1 x HDMI 2.1(4K@60HZ) |
| Internal I/O Ports | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1 front panel TypeC™ connector 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 with E key for Wi-Fi module 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header |
| LAN Port (s) | Realtek RTL8125B 2.5Gb Ethernet TUF LANGuard |
| Supported Storage | Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : 1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD Ryzen 4000 G-Series Processors : 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCIE 3.0 x4 and SATA modes) storage devices support 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header |
