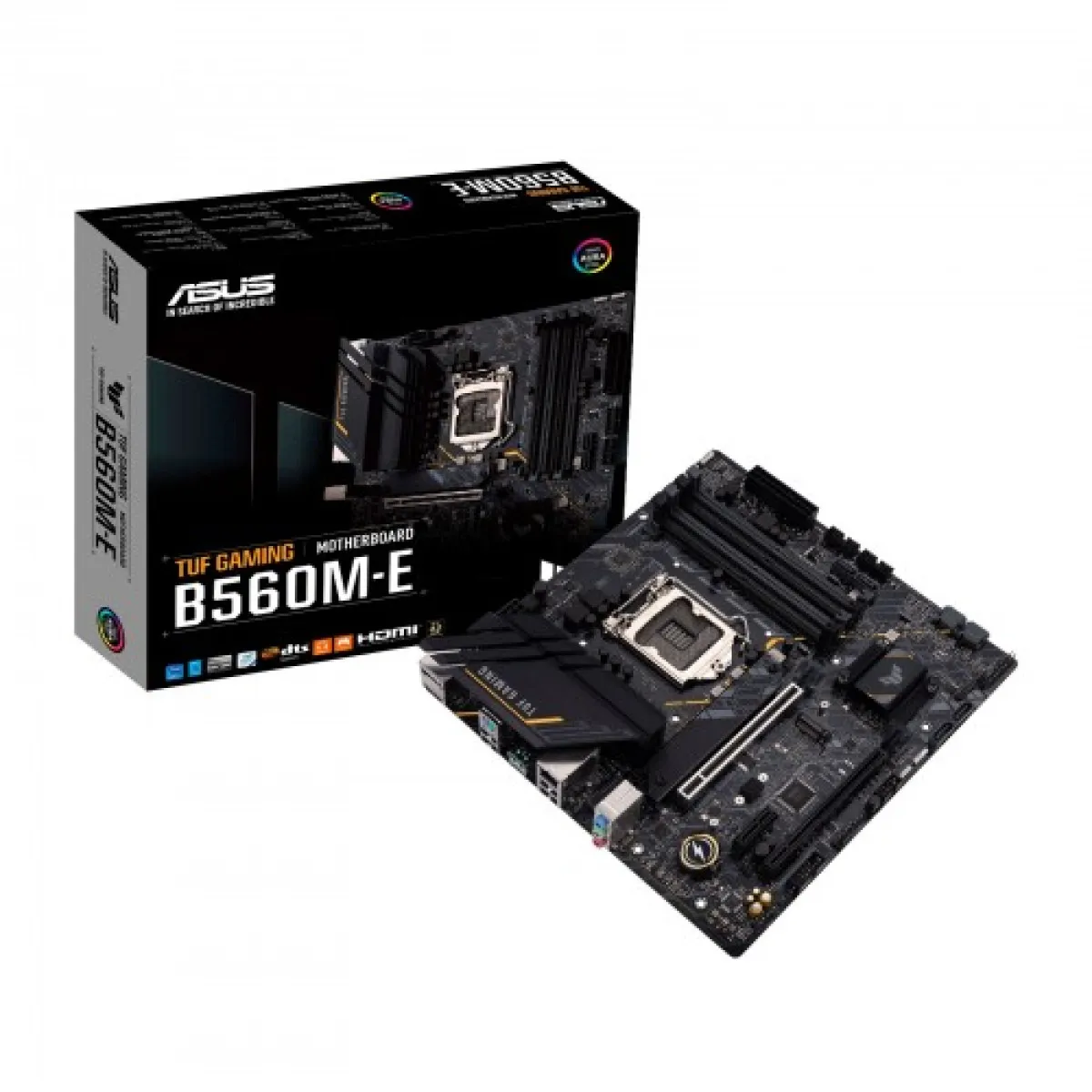

ASUS TUF GAMING B560M-E 10th and 11th Gen mATX Motherboard
Key highlights
- Form Factor: microATX 24.4cm x 23.4cm
- Chipset: B560
- Slots: 4 x DIMM, DDR4
- Audio: 3 x Audio jacks
- BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Description
Buy ASUS TUF GAMING B560M-E at Unix Network Jashore
Unlock Gaming Potential with ASUS TUF GAMING B560M-E
The ASUS TUF GAMING B560M-E motherboard is engineered for the ultimate gaming experience, supporting both 10th and 11th Gen Intel processors. This mATX motherboard is perfect for gamers and PC builders looking for a reliable and powerful foundation. With robust build quality, it features military-grade components that ensure durability and longevity, essential for high-performance systems. The 5X Protection III technology safeguards against potential hazards, while the Comprehensive cooling solutions keep your system running optimally.
Designed for high-speed connectivity, the B560M-E includes PCIe 4.0 support for faster graphics cards and M.2 slots for lightning-fast SSDs. The motherboard also supports DDR4 memory up to 4800 MHz, ensuring smooth multitasking and gaming performance. Furthermore, it features customizable RGB lighting, allowing you to personalize your setup and enhance your gaming environment.
Choosing the ASUS TUF GAMING B560M-E means investing in a motherboard that balances performance with reliability, making it an ideal choice for both casual gamers and hardcore enthusiasts alike.
High-Performance mATX Motherboard for Gamers
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | microATX 24.4cm x 23.4cm |
| Chipset | B560 |
| Slots | 4 x DIMM, DDR4 |
| Audio | 3 x Audio jacks |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | Intel11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) |
| PCI | Intel 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 - Intel10th Gen processors support PCIe 3.0 x16 Intel B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* 1 x PCIe 3.0 x1 slots |
| Graphics Specifications | |
| Graphics | 1 x DP1.4** * Graphics specifications may vary between CPU types. ** Intel 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. *** Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. |
| Memory Specifications | |
| Maximum Memory | Max. 128GB |
| Supported Memory | 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Type | Dual Channel Memory Architecture |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort |
| HDMI | 1 x HDMI port |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 2 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen1 ports 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports 1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Supported Storage | Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports |
| USB (s) | Rear USB:Total 6 ports Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 port(s) (1 x Type-A + 1 x USB Type-C) 4 x USB 2.0 port(s) (4 x Type-A) Front USB (Total 7 ports) 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports 1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports |
| Special | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update - System Information TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DTS Custom for GAMING Headsets DAEMON Tools Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Special Feature | ASUS TUF PROTECTION - DIGI+ VRM - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
