Key highlights
- Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Supported CPU: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*
- Chipset: AMD X870 Chipset
- Slots: 4 x DIMM
- Audio: 5 x Audio jacks
Description

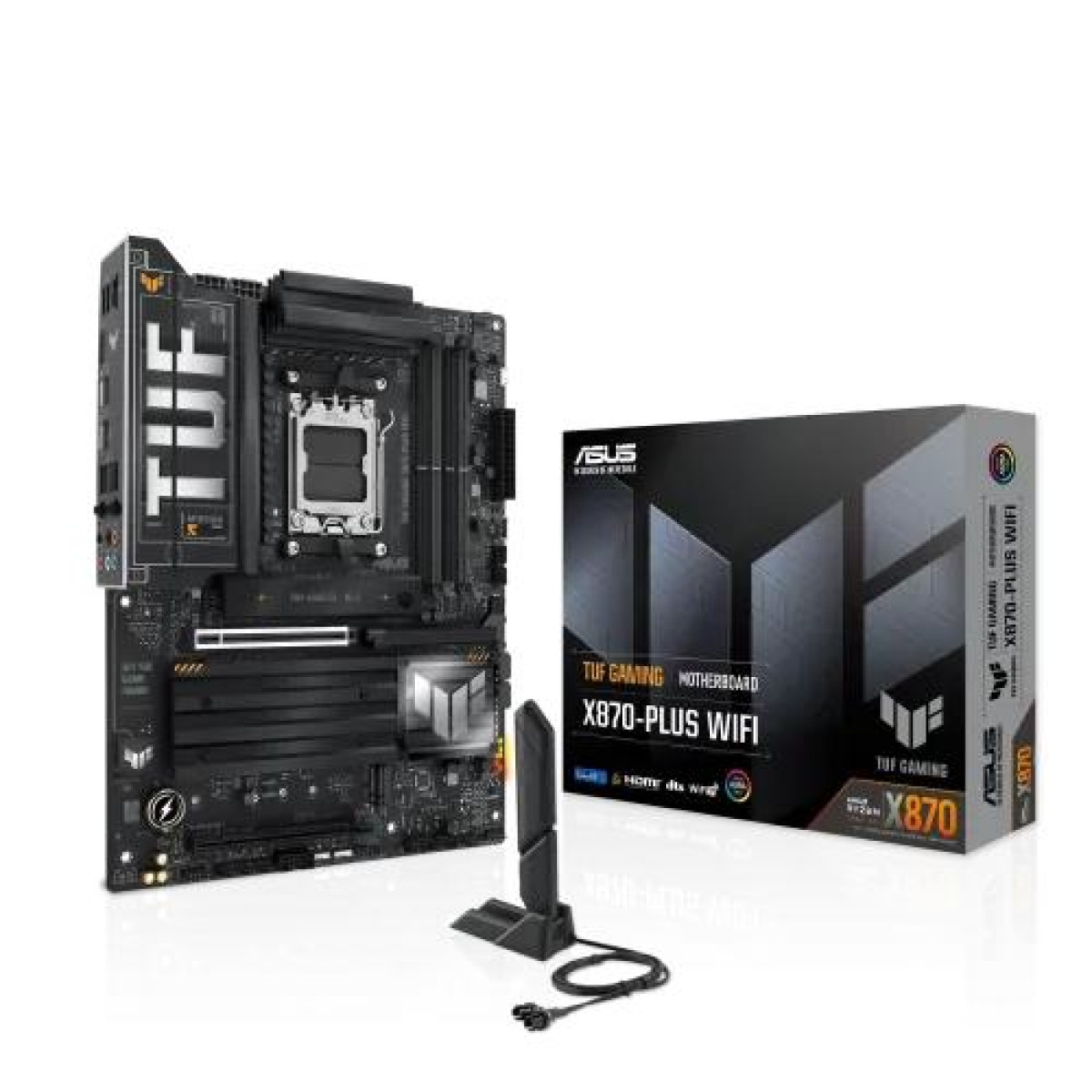

Best Bangladeshi Asus TUF GAMING X870-PLUS WiFi Motherboard
Best Asus TUF GAMING X870-PLUS WIFI DDR5 AM5 ATX Motherboard in Bangladesh for Tech Enthusiasts
The Asus TUF GAMING X870-PLUS WIFI DDR5 AM5 ATX Motherboard is the perfect choice for tech enthusiasts in Bangladesh. With its powerful DDR5 RAM and AM5 compatibility, this motherboard offers top-tier performance for gaming and other high-demand tasks. The built-in WIFI ensures seamless connectivity, while the ATX form factor fits perfectly in most PC setups. Upgrade your system with the Asus TUF GAMING X870-PLUS WIFI DDR5 AM5 ATX Motherboard and experience unparalleled speed and reliability.
Best AM5 ATX Motherboard for Gaming in Bangladesh - Asus TUF GAMING X870-PLUS WIFI
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors* |
| Chipset | AMD X870 Chipset |
| Slots | 4 x DIMM |
| Audio | 5 x Audio jacks |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | Total Supports 4 x M.2 slots |
| PCI | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode)** AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)*** AMD X870 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)**** ** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs. *** Specifications vary by CPU types. **** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs. |
| Graphics Specifications | |
| Graphics | 1 x HDMI port 2 x USB4 (40Gbps) ports support USB Type-C display outputs |
| Memory Specifications | |
| Maximum Memory | 192GB |
| Supported Memory | Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1x HDMI |
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header |
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Supported Storage | Total Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)** AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot not support AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)*** 2 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU. ** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs. *** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs. |
| USB (s) | Rear USB (Total 10 ports) 2 x USB4® (40Gbps) ports (2 x USB Type-C®)* 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)** 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A ** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A. |
| Wireless Communication module | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4 |
| Special | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
