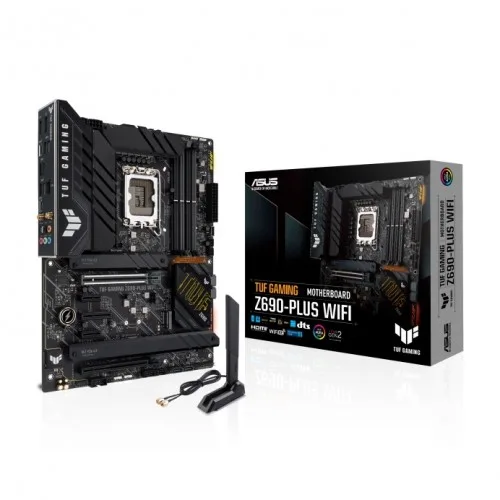

Asus TUF Gaming Z690-Plus WIFI 12th Gen ATX Motherboard
- Brand:Asus
- Product Code: TUF Gaming Z690-Plus WIFI
- Availability:Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Graphics | 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) VGA resolution support depends on processors' or graphic cards' resolution. |
|---|---|
| Supported CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Type | DDR5 |
| Expansion Slots | |
| M.2 Socket | Supports 4 x M.2 slots |
| PCI | Intel 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel Z690 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x4 slot 2 x PCIe 3.0 x1 slots |
| Memory Specifications | |
| Maximum Memory | 128GB |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x HDMI port |
| HDMI | 1 x DisplayPort |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header |
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet TUF LANGuard |
| USB (s) | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Description
Asus TUF Gaming Z690-Plus WIFI 12th Gen ATX Motherboard
The Asus TUF Gaming Z690-Plus WIFI motherboard is engineered to provide an unrivaled gaming experience, seamlessly integrating advanced technology and robust build quality. Designed for the 12th generation Intel processors, this motherboard is equipped with an LGA 1700 socket, ensuring compatibility with the latest CPUs. Its ATX form factor not only maximizes space in your gaming rig but also offers multiple expansion slots for future upgrades.
Performance and Features: With support for DDR4 memory up to 5333MHz (OC), the Z690-Plus offers extraordinary memory bandwidth, which is essential for high-performance gaming and multitasking. The dual-channel memory architecture allows gamers and content creators to run demanding applications without a hitch. Furthermore, the motherboard features PCIe 5.0 support, delivering blazing fast data transfer speeds for the latest graphics cards and NVMe SSDs, ensuring that your system is future-proof.
Enhanced Connectivity: The integrated WIFI 6 (802.11ax) provides high-speed wireless connectivity, making it easier to connect to the internet without the need for cumbersome cables. Coupled with Bluetooth 5.2, this motherboard ensures that all your peripherals and devices can connect seamlessly. The inclusion of multiple USB 3.2 Gen 2 Type-A and Type-C ports allows for rapid data transfer and charging capabilities, while the HDMI and DisplayPort outputs enable high-resolution video output for immersive gaming.
Durability and Reliability: The TUF Gaming series is known for its durability, and the Z690-Plus is no exception. Built with military-grade components and a comprehensive thermal management system, this motherboard can withstand the rigors of intense gaming sessions. The TUF Fortifier strengthens the motherboard structure, ensuring long-lasting performance. Additionally, the ESD Guards protect your components from electrostatic discharge, significantly enhancing the lifespan of your system.
Why Buy the Asus TUF Gaming Z690-Plus?: Whether you're a casual gamer or a hardcore enthusiast, this motherboard is tailored to meet your needs. Its combination of performance, durability, and advanced features makes it an ideal choice for building a high-performance gaming rig. With an easy installation process, even novice builders will find assembling their dream setup manageable. Customers in Bangladesh will also appreciate the competitive pricing and availability of this motherboard, making it an excellent investment for gamers looking to elevate their experience.
