Key highlights
- Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Supported CPU: Intel Socket LGA1700 for 14th Gen, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Chipset: Intel Z790 Chipset
- Slots: 4 x DIMM
- Audio: 5 x Audio jacks
Description

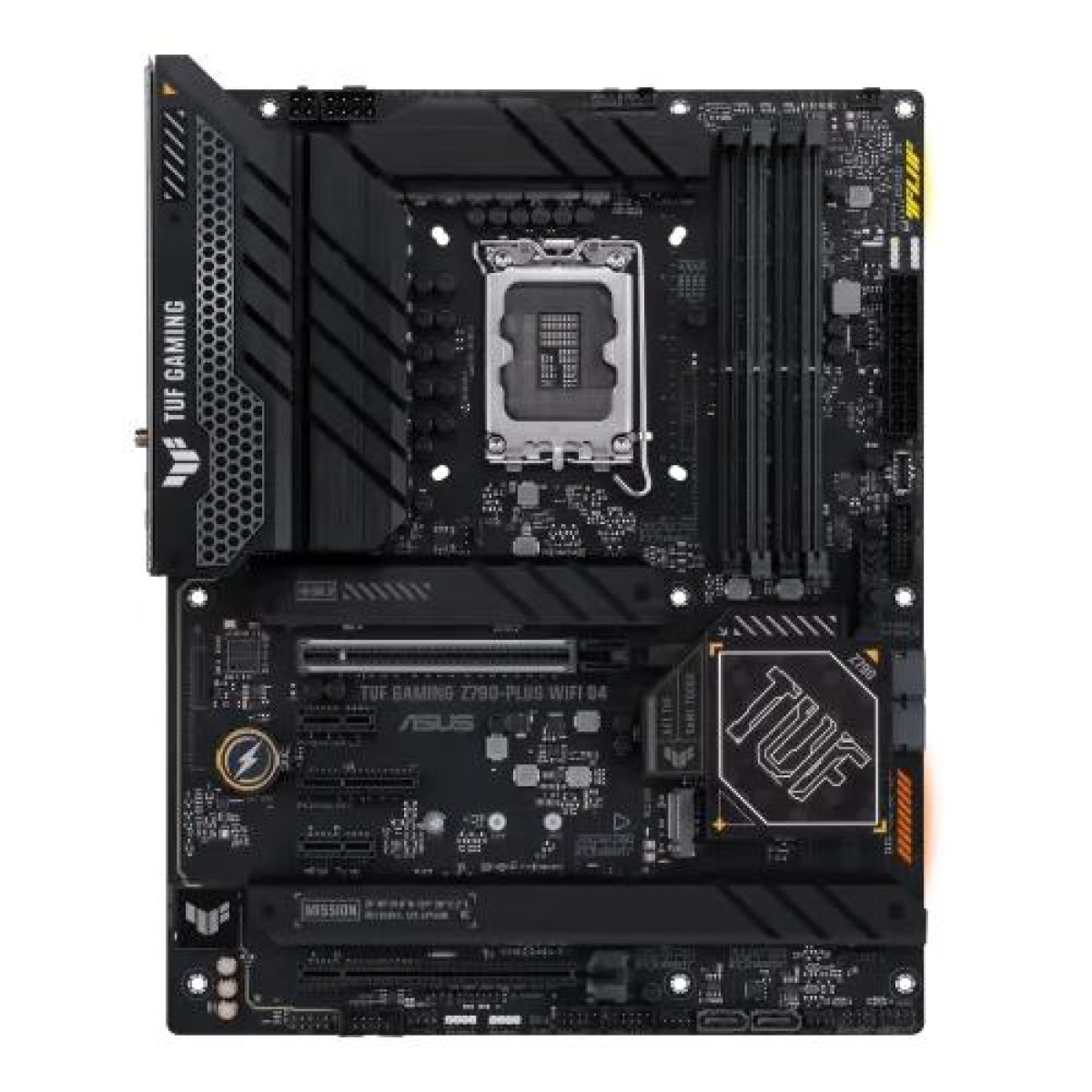

ASUS TUF GAMING Z790-PLUS WIFI D4 ATX Motherboard
ASUS TUF GAMING Z790-PLUS WIFI D4 Motherboard comes with LGA 1700 socket and Z790 chipset. It supports 14th Gen, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold, and Celeron Processors. The motherboard has 4x DDR4 Dual-Channel RAM slots that allow you to equip up to 128GB of memory for enhanced multitasking capabilities and complex photo and video rendering. ASUS TUF GAMING Z790-PLUS WIFI D4 Motherboard also supports 4 x M.2 slots and 4 x SATA 6Gb/s ports so you can build a large library of storage drives for your games or creative projects. while PCIe 5.0 x16, 4.0 x16, 4.0 x4, and two 3.0 x1 slots accommodate adapter cards. Connect to wired peripherals through two USB-A 3.2 Gen 2 and four 3.2 Gen 1 ports, or two USB-C 3.2 Gen 2x2 and four 3.2 Gen 2 ports. DisplayPort 1.4 or HDMI 2.1 interfaces are used to output video. An RJ45 port enables 2.5 Gigabit Ethernet, and the bundled antenna supports Wi-Fi 6. The rear I/O panel also includes five 1/8" audio jacks and a digital audio S/PDIF output. Fans, Clear CMOS, Thunderbolt 4, RGB lighting, and front-panel USB-C 3.2 Gen 2 and USB-A 3.2 Gen 1 and 2.0 ports are all supported by internal headers. The ASUS TUF GAMING Z-790 PLUS WIFI D4 LGA 1700 ATX Motherboard is 64-bit compatible with Windows 10 and later. The ASUS TUF GAMING Z790-PLUS WIFI D4 delivers consistent power throughout the entire motherboard, preserving electrical volume whether you are performing simple chores or operating at full power during resource-demanding procedures. It is equipped with a 16+1 Phase Power DrMOS, six-layer PCB, ProCool sockets, alloy chokes, and durable capacitors that allow for stable power delivery. The ASUS TUF GAMING Z790-PLUS WIFI D4 motherboard has a large VRM heatsink for capacitors and chokes, as well as integrated M.2 heatsinks and backplates for greater thermal performance and throttling prevention. Fan Xpert 4 software and hybrid fan headers control fans and liquid cooling elements for increased cooling that may be customized. Fast internals and accessories can be connected to via PCIe 5.0 and Thunderbolt 4 headers, as well as a front-panel USB-C 3.2 Gen 2x2 port. USB 3.2 Gen 2 doubles the speed of its predecessor, with a maximum throughput of 10 Gb/s when utilized with compatible devices, and is synonymous with USB 3.1 Gen 2. This 14th Gen Motherboard offers an edge lighting design, addressable RGB headers, and RGB strip header support to let you set the mood for your favorite games. In Bangladesh, you can get original From Unix Network. We have a large collection of latest to purchase for your . Order Online Or Visit your Nearest Shop to get yours at lowest price. The ASUS TUF GAMING Z790-PLUS WIFI D4 Motherboard comes with 3 years warranty.Are you ready to take your gaming and computing experience to the next level? Look no further than the ASUS TUF GAMING Z790-PLUS WIFI D4 ATX Motherboard. This powerhouse of a motherboard is designed for top-tier performance, quality, and speed, making it the perfect choice for computer users and students alike.
Featuring cutting-edge technology and unmatched durability, the ASUS TUF GAMING Z790-PLUS WIFI D4 ATX Motherboard is built to handle the most demanding tasks with ease. Whether you're gaming, streaming, or tackling complex projects, this motherboard will not disappoint.
With support for the latest Intel processors, ultra-fast DDR4 memory, and lightning-fast WiFi connectivity, the ASUS TUF GAMING Z790-PLUS WIFI D4 ATX Motherboard delivers the speed and performance you need to stay ahead of the curve. Say goodbye to lag and slowdowns and hello to smooth, seamless computing.
Not only does the ASUS TUF GAMING Z790-PLUS WIFI D4 ATX Motherboard excel in performance, but it also boasts a sleek and stylish design that will elevate any PC build. With customizable RGB lighting and a rugged construction that can withstand even the most intense gaming sessions, this motherboard is as durable as it is eye-catching.
At Unix Network in Jashore, Bangladesh, we are proud to offer the ASUS TUF GAMING Z790-PLUS WIFI D4 ATX Motherboard to our customers. With our expert staff and top-notch customer service, you can trust that you are getting the best product and support possible. Don't settle for mediocrity – upgrade to the ASUS TUF GAMING Z790-PLUS WIFI D4 ATX Motherboard and experience the difference for yourself.
ASUS TUF GAMING Z790-PLUS WIFI D4 ATX Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Supported CPU | Intel Socket LGA1700 for 14th Gen, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel Z790 Chipset |
| Slots | 4 x DIMM |
| Audio | 5 x Audio jacks |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| PCI | Intel 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x4 slot 2 x PCIe 3.0 x1 slots |
| Graphics Specifications | |
| Graphics | 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | 5333(OC)/ 5133(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC) /3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort |
| HDMI | 1 x HDMI |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header |
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet TUF LANGuard |
| Supported Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 13th & 12th Gen processors support PCIe 4.0 x4 mode Intel Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| USB (s) | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Wireless Communication module | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
| Special | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Two-Way AI Noise Cancelation - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
