Key highlights
- Form Factor: E-ATX Form Factor; 30.5cm x 26.9cm
- Graphics: Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x USB Type-C port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports.
- SpecialFeatures: Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
- Supported CPU: Supported CPU AMD Socket AM5, support for : AMD Ryzen 7000 Series Processors
- Chipset: AMD X670
Description

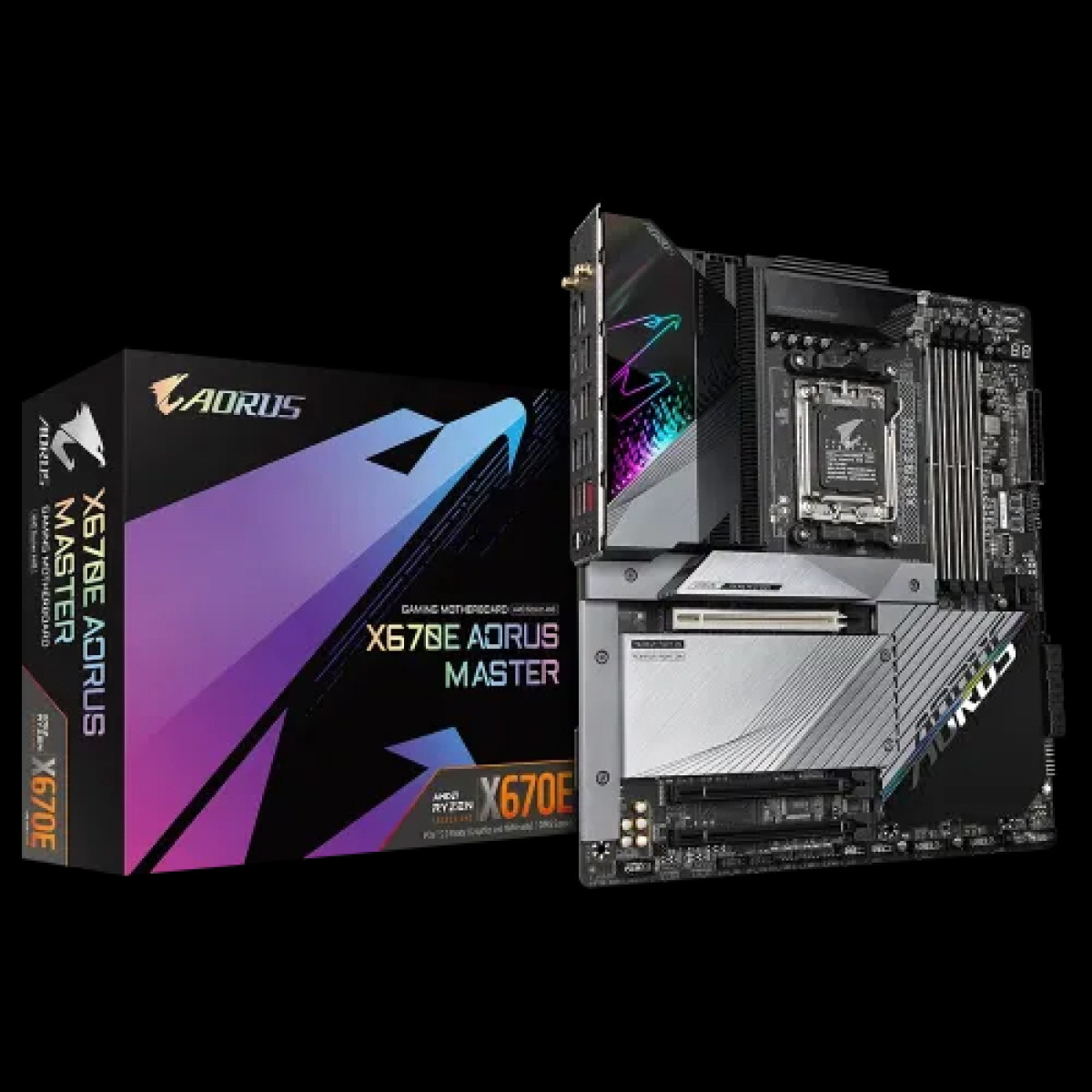

Upgrade Your Build with GIGABYTE X670E AORUS MASTER
Unleash Your Gaming Potential with GIGABYTE X670E AORUS MASTER
The GIGABYTE X670E AORUS MASTER DDR5 AMD AM5 E-ATX Motherboard is designed for gamers and content creators who demand high performance and reliability. With cutting-edge technology and robust features, this motherboard is built to handle the latest AMD Ryzen processors, allowing you to experience lightning-fast speeds and exceptional multitasking capabilities. DDR5 memory support ensures faster data transfer rates, while advanced thermal solutions keep your system cool during intense gaming sessions.
Equipped with multiple M.2 slots for SSDs, the X670E AORUS MASTER offers ample storage options and supports PCIe 5.0 for future-proofing your build. The motherboard's high-quality capacitors and solid build ensure durability and longevity, making it a wise investment for any tech enthusiast.
Experience enhanced connectivity with Wi-Fi 6E and Bluetooth 5.2, allowing you to connect seamlessly to your network and peripherals. With customizable RGB lighting and an intuitive BIOS interface, you can personalize your setup to match your style while maintaining top-tier performance.
High Performance E-ATX Motherboard for AMD AM5 Platform
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | E-ATX Form Factor; 30.5cm x 26.9cm |
| Graphics | Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x USB Type-C port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. |
| SpecialFeatures | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Supported CPU | Supported CPU AMD Socket AM5, support for : AMD Ryzen 7000 Series Processors |
| Chipset | AMD X670 |
| Audio | Realtek ALC1220-VB CODEC * The back panel line out jack supports DSD audio. Support for DTS:X Ultra High Definition Audio 2/4/5.1/7.1-channel output * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Type | DDR5 |
| Memory Specifications | |
| Maximum Memory | Up to 128 GB (32 GB single DIMM capacity) of system memory |
| Supported Memory | Support for DDR5 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory module |
| PORTS, CONNECTORS & SLOTS | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x THB_U4 add-in card connector 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Voltage Measurement Points |
| LAN Port (s) | Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| USB (s) | CPU: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub: 2 x USB 2.0/1.1 ports on the back panel Chipset: 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel |
| Special | |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
