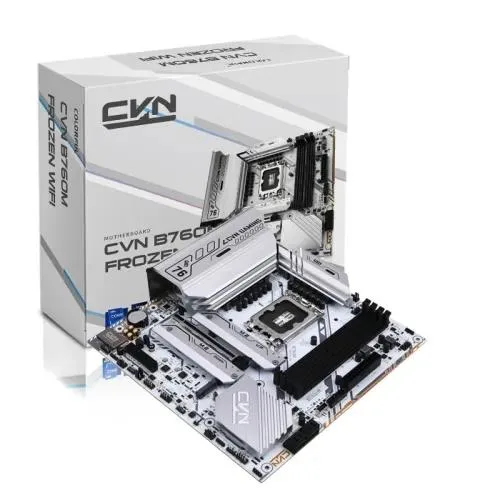

FROZEN WIFI V20 Colorful CVN B760M mATX Motherboard
- Brand:Colorful
- Product Code: Colorful CVN B760M FROZEN WIFI V20 mATX Motherboard
- Availability:Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | M-ATX 245mm x 245mm |
|---|---|
| Supported CPU | Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium And Cylon processor |
| Chipset | Intel B760 |
| Slots | 4 |
| Audio | 5.1 Channel sound card |
| BIOS | 128M UEFI, supporting multiple languages |
| Expansion Slots | |
| PCI | 1×PCIe 5.0 x16 slot 1×PCIe 3.0 x4 slot |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| Memory Specifications | |
| Maximum Memory | 128 GB of memory (a single socket can support up to 32 GB of memory) |
| Supported Memory | - DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz memory - Intel is supported ® Extreme Memory Profile (XMP) memory technology - supports dual channel memory technology |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort |
| HDMI | 1x HDMI |
| Internal I/O Ports | Rear I/O interface: - 4×USB 2.0 interfaces - 2×USB 3.2 Gen 1 Type-A interfaces - 1×USB 3.2 Gen 2 Type-C interface - 1×DP 1.2 interface, supporting up to 4K 60Hz resolution - 1×HDMI 2.0 interface, Up to 4K 60Hz resolution - 1×2.5G network interface - 2×Wi-Fi 6 antenna interfaces - 3×audio interfaces (audio input/audio output/microphone) - 1×BIOS update button On board device interface: - 1×CPU fan pin - 3×system fan pins - 1×water-cooled pump pin - 1×USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces - 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces - 1×USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface - 2×5V 3-pin ARGB pins - 2×12V 4-pin RGB pins - 1×Front audio pin - 1×front panel pin - 1×speaker pin - 1×clear CMOS jumper - 1×COM port pin - 1×BIOS burner pin - 1×POST card pin - 1×ME write protection jumper - 1×RGB light effect control jumper |
| LAN Port (s) | RTL8125 2.5Gbit network card |
| Supported Storage | A total of 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices - M.2_ 1 slot: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_ 2 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) - M.2_ 3 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) |
| Wireless Communication module | AX201/AX200 WiFi 6 wireless network card, Bluetooth 5.2 |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
Description
Introducing the Colorful CVN B760M FROZEN WIFI V20 mATX Motherboard
The Colorful CVN B760M FROZEN WIFI V20 mATX Motherboard is a remarkable addition to the realm of computer hardware, designed to meet the needs of gamers, content creators, and tech enthusiasts alike. This motherboard integrates cutting-edge technology with a vibrant aesthetic, making it not only a powerful component but also a visually appealing one. With its support for the latest Intel processors and a plethora of features tailored for performance, this motherboard is a reliable choice for building a robust desktop system.
Product Overview: The CVN B760M FROZEN WIFI V20 is engineered to support Intel's 12th and 13th generation processors, providing an efficient platform for multitasking and high-performance gaming. With dual-channel DDR4 memory support of up to 128GB, users can enjoy lightning-fast data transfer rates and improved system responsiveness. The inclusion of Wi-Fi 6 technology ensures seamless connectivity, allowing users to enjoy high-speed internet without the clutter of cables.
Benefits: One of the standout features of this motherboard is its superior thermal management system. It comes equipped with multiple heat sinks and an advanced cooling solution, ensuring that even during intense gaming sessions, the performance remains stable and efficient. Additionally, the aesthetically pleasing RGB lighting can be customized to match your build, adding a personal touch to your setup.
Use Cases: Ideal for gamers looking to build a compact yet powerful system, the CVN B760M FROZEN WIFI V20 is also a great choice for content creators who require reliable performance and speed for video editing and graphic design tasks. Whether you're streaming, gaming, or working on intensive applications, this motherboard is designed to handle it all.
Why Customers Should Buy This Product: Investing in the Colorful CVN B760M FROZEN WIFI V20 means choosing a product that combines performance, aesthetics, and reliability. With its extensive feature set and competitive pricing, this motherboard stands out in the Bangladeshi market, providing exceptional value for those looking to elevate their computing experience.
