Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard Features
৳17,500৳18,000-2%
- Brand:Colorful
- Product Code: BATTLE-AX B760M-PLUS
- Availability:In Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | M-ATX 245mm x 245mm |
|---|---|
| Supported CPU | Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium And Cylon processor |
| Chipset | Intel B760 |
| Slots | 4 |
| Audio | 5.1 Channel sound card |
| BIOS | 128M UEFI, supporting multiple languages |
| Expansion Slots | |
| PCI | 1xPCIe 5.0 x16 slot 1xPCIe 3.0 x4 slot |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI 2.0 interface, Up to 4K 60Hz resolution 1 x DP 1.2 interface, supporting up to 4K 60Hz resolution |
| Memory Specifications | |
| Maximum Memory | up to 192 GB of memory (a single socket can support up to 48 GB of memory) |
| Supported Memory | - DDR5-6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory - Intel is supported Extreme Memory Profile (XMP) memory technology - supports dual channel memory technology |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort |
| HDMI | 1x HDMI |
| Internal I/O Ports | Rear I/O interface: - 4 USB 2.0 interfaces - 2 USB 3.2 Gen 1 Type-A interfaces - 1 USB 3.2 Gen 2 Type-C interface - 1 DP 1.2 interface, supporting up to 4K 60Hz resolution - 1 HDMI 2.0 interface, Up to 4K 60Hz resolution - 1 2.5G network interface - 3 audio interfaces (audio input/audio output/microphone) Onboard device interface: - 1 CPU fan pin - 3 system fan pins - 1 water-cooled pump pin - 1 USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces - 1 USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces - 1 USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface - 2 5V 3-pin ARGB pins - 2 12V 4-pin RGB pins - 1 Front audio pin - 1 Front panel pin - 1 speaker pin - 1 clear CMOS jumper - 1 serial port pin - 1 BIOS burner pin - 1 diagnostic card pin - 1 ME write protection jumper - 1 RGB lamp efficiency control jumper |
| LAN Port (s) | RTL8125 2.5Gbit network card |
| Supported Storage | A total of 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, - M.2_ 1 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_ 2 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) - M.2_ 3 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
Description

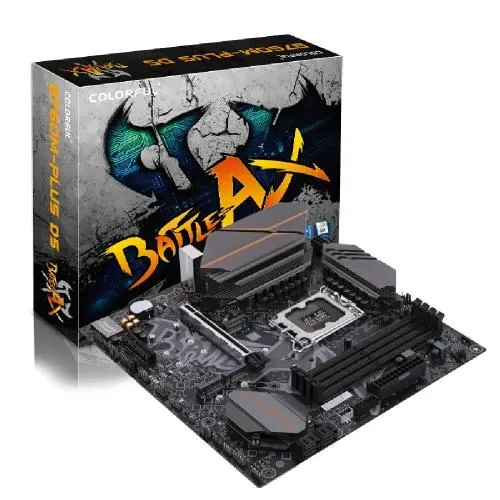

Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard
The Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard is designed to elevate your computing experience, making it an exceptional choice for both gaming enthusiasts and productivity-focused users in Bangladesh. With its robust build quality and premium features, this motherboard guarantees outstanding performance and speed, ensuring your system runs smoothly under heavy loads. The B760M-PLUS is equipped with the latest Intel B760 chipset, supporting 12th and 13th Gen Intel Core processors, which allows you to harness powerful processing capabilities for gaming, content creation, and multitasking. Its support for dual-channel DDR5 memory up to 64GB ensures seamless data transfer rates and improved overall system responsiveness.
Aesthetically pleasing with a sleek design, the Colorful BATTLE-AX B760M-PLUS features an attractive black PCB complemented by vibrant RGB lighting, allowing you to customise your setup while ensuring optimal thermal performance with its advanced cooling solutions. The motherboard boasts reinforced PCIe slots for graphics cards, providing enhanced durability and stability during intense gaming sessions. Additionally, the inclusion of multiple M.2 slots enables rapid SSD installation, significantly reducing load times and enhancing system efficiency.
When it comes to key specifications, this motherboard offers a comprehensive array of connectivity options. With USB 3.2 Gen 2 Type-C ports, high-speed LAN support, and integrated audio solutions, it caters to all your connectivity needs whether you’re gaming online or streaming media. Furthermore, its compatibility with a wide range of peripherals makes it a versatile choice for users looking to build or upgrade their systems. This motherboard is particularly well-suited for gamers seeking high FPS rates in demanding titles or professionals in need of reliable hardware for resource-intensive applications.
The value for money that the Colorful BATTLE-AX B760M-PLUS offers in the Bangladeshi market is unmatched. Priced competitively, it delivers premium features typically found in higher-end models without compromising on quality or performance. By choosing to buy online at Unix Network, customers can enjoy the best deal in BD while also benefiting from dedicated customer support and fast shipping options. Whether you are assembling a new PC or upgrading an existing setup, this motherboard promises an unparalleled user experience tailored to meet the needs of modern users in Bangladesh. Embrace cutting-edge technology with the Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard and take your computing capabilities to the next level.
