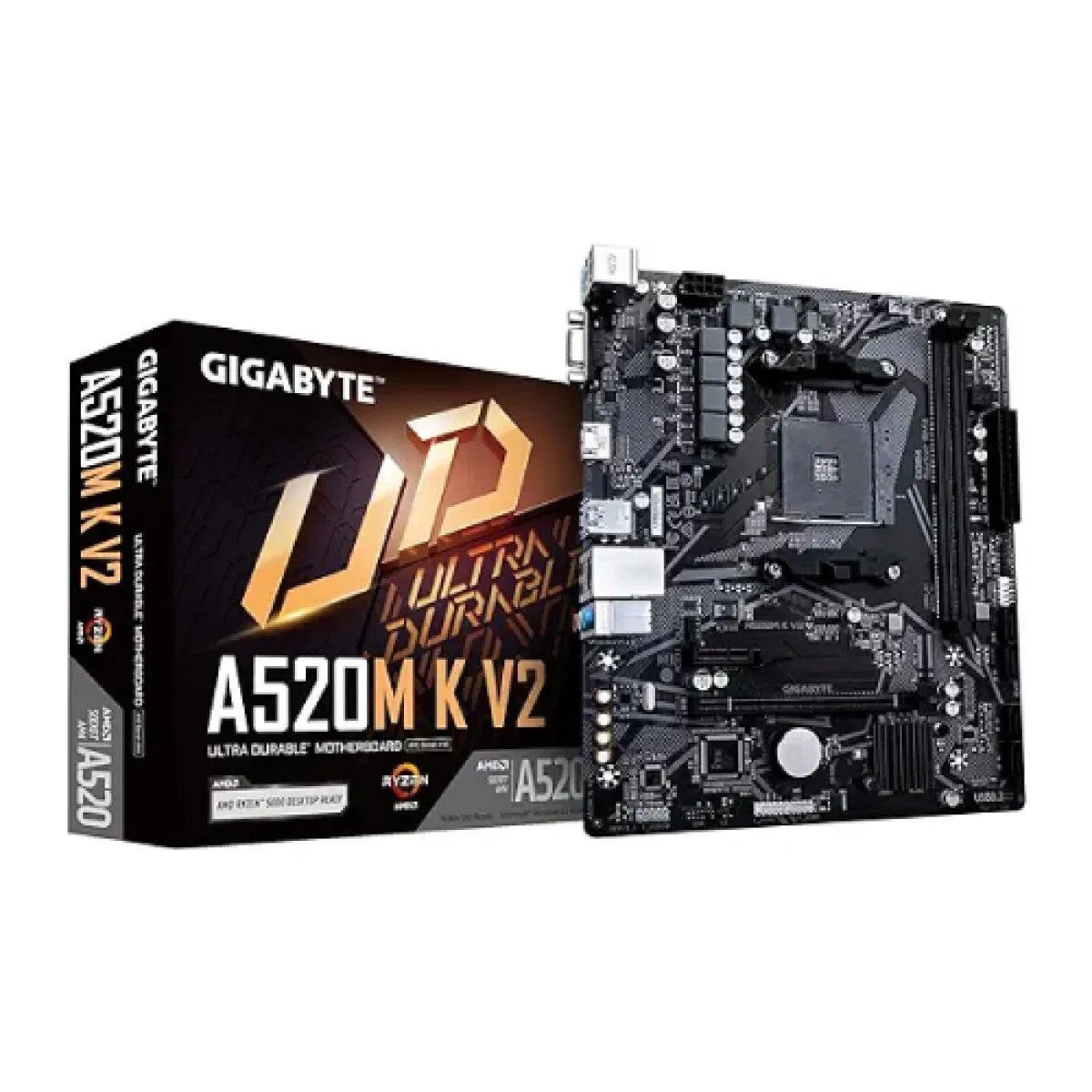

GIGABYTE A520M K AM4 Micro ATX Motherboard
- Brand:Gigabyte
- Product Code: A520M K
- Availability:In Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | Micro ATX Form Factor; 23.3cm x 19.8cm |
|---|---|
| Raid controller | Support for RAID 0, RAID 1, and RAID 10 |
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors |
| Chipset | AMD A520 |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 connector |
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Graphics Specifications | |
| Max Shared Memory | 16 GB |
| Graphics | Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.0 version and HDCP 2.2. |
| Memory Specifications | |
| Maximum Memory | 64 GB (32 GB single DIMM capacity) |
| Slots | 2 x DIMM |
| Supported Memory | Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI port |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x HDMI port 4 x USB 3.2 Gen 1 port 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/ 100 Mbps) |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
| USB (s) | CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Special | |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Special Feature | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
| WARRANTY | |
| Manufacturing Warranty | 03-Year Warranty |
Description
Introducing the GIGABYTE A520M K AM4 Micro ATX Motherboard
The GIGABYTE A520M K AM4 Micro ATX Motherboard is a top-tier choice for PC enthusiasts and gamers seeking reliable performance in a compact form factor. Designed to support the latest AMD Ryzen processors, this motherboard offers exceptional value with its robust features and outstanding build quality. The A520 chipset ensures compatibility with a wide range of Ryzen CPUs, allowing users to harness the full potential of their systems.
Key Features and Benefits:
- Advanced Technology: Featuring the latest PCIe 3.0 slots, the GIGABYTE A520M K is optimized for high-speed data transfer, ensuring that your graphics card and storage devices perform at their best.
- Memory Support: With support for up to 64GB of DDR4 RAM, you can experience lightning-fast multitasking and improve overall system responsiveness.
- Audio and Networking: The motherboard is equipped with high-quality audio capacitors and Realtek Ethernet, providing crystal-clear sound and stable network connectivity, which are crucial for an immersive gaming experience.
- User-Friendly Design: The GIGABYTE A520M K features an intuitive layout and BIOS, making it easy for both novice and experienced users to set up their systems without hassle.
Use Cases: Whether you are building a gaming rig, a workstation for content creation, or a general-purpose PC, the A520M K provides the necessary features to meet the demands of various applications. Its compact Micro ATX form factor makes it suitable for smaller cases without sacrificing performance.
Why Customers Should Buy: Investing in the GIGABYTE A520M K means choosing a motherboard that combines quality, performance, and affordability. Its extensive compatibility with AMD Ryzen CPUs, along with a warranty that reflects GIGABYTE's confidence in their product, offers customers peace of mind. With competitive pricing in the Bangladesh market, this motherboard stands out as a smart choice for anyone looking to build a powerful and reliable PC.
