GIGABYTE B650M K Micro-ATX Motherboard for AMD AM5 Users in Bangladesh
- Brand:Gigabyte
- Product Code: B650M K
- Availability:In Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Audio Features | 3 x Audio jacks |
|---|---|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Raid controller | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 8000 & 7000 Series Processors |
| Chipset | AMD B650 |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Graphics Specifications | |
| Graphics | 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. |
| Memory Specifications | |
| Maximum Memory | 192 GB |
| Slots | 4 DIMMs |
| Supported Memory | Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPorts |
| HDMI | 1x HDMI |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x reset jumper 1 x Clear CMOS jumper |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| USB (s) | CPU: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 2.0/1.1 ports on the back panel Chipset: 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Special | |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Special Feature | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
Description

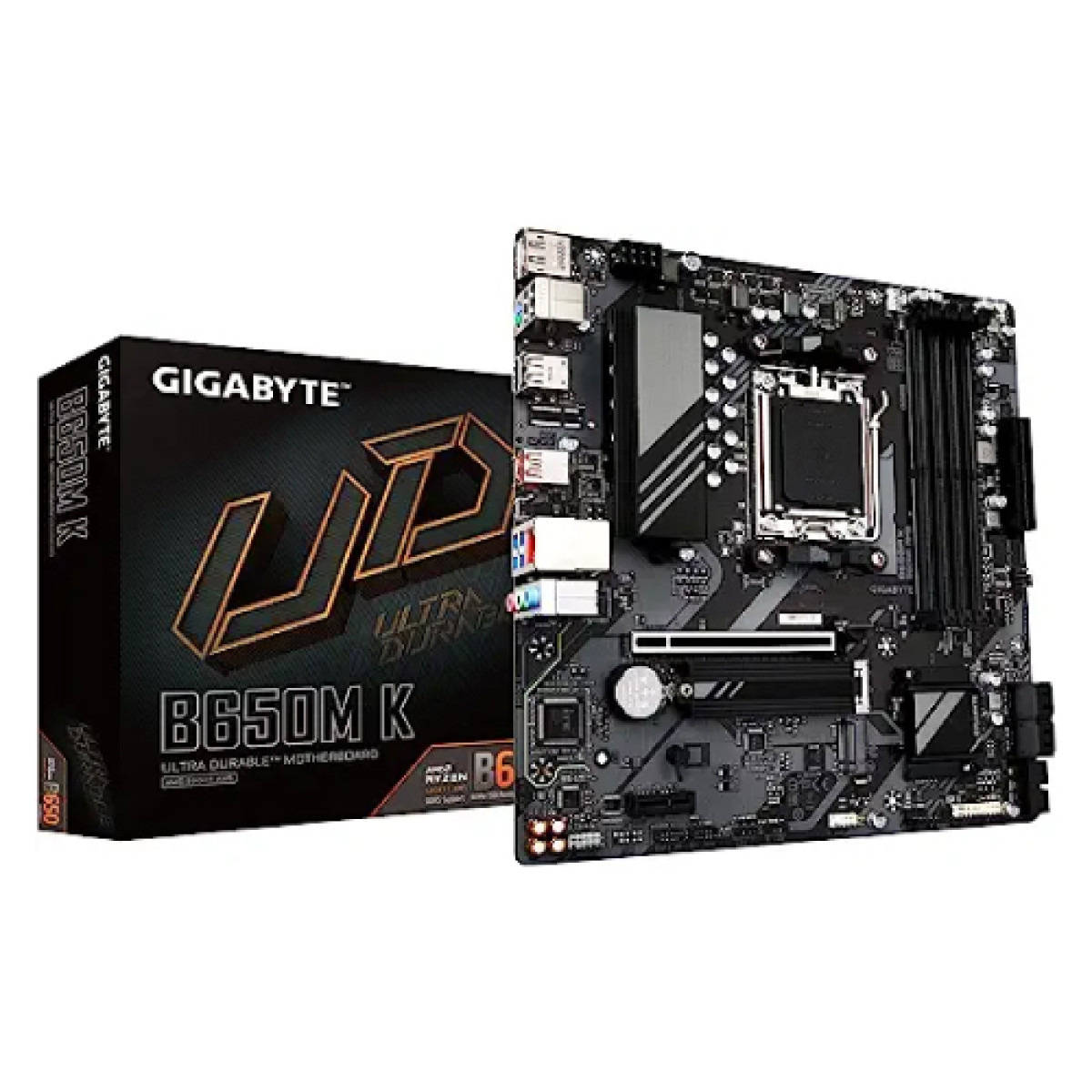

Introducing the GIGABYTE B650M K AMD AM5 Micro-ATX Motherboard
The GIGABYTE B650M K is a cutting-edge Micro-ATX motherboard designed to harness the power of AMD's AM5 socket, making it a perfect choice for gamers, content creators, and tech enthusiasts in Jashore, Bangladesh. This motherboard is engineered to support the latest AMD Ryzen processors, offering exceptional performance and versatility for various computing tasks.
Product Overview
The B650M K motherboard is equipped with advanced features including PCIe 5.0 support, DDR5 memory compatibility, and an efficient thermal design. This ensures that your system not only performs at peak levels but also remains cool and stable even under heavy loads. The motherboard also comes with multiple connectivity options, including USB 3.2 Gen 2 ports and HDMI output, allowing users to connect a variety of devices seamlessly.
Benefits
One of the standout features of the GIGABYTE B650M K is its support for the latest technologies, which enhances both performance and efficiency. The motherboard supports up to 128GB of DDR5 RAM, providing ample memory for multitasking and demanding applications. Additionally, its robust power delivery system ensures stable performance during overclocking, making it ideal for gamers who wish to push their systems to the limit.
Use Cases
This motherboard is perfect for building gaming rigs, high-performance workstations, or general-purpose PCs. Whether you are gaming, streaming, or performing resource-intensive tasks like video editing, the GIGABYTE B650M K can handle it all with ease. Its Micro-ATX form factor allows it to fit comfortably in compact cases, making it a versatile option for various builds.
Why Buy the GIGABYTE B650M K?
Investing in the GIGABYTE B650M K means investing in a future-proof motherboard that can adapt to evolving technology. With its combination of modern features, solid build quality, and competitive pricing, this motherboard stands out in the Bangladeshi market. Customers in Jashore can take advantage of its reliability and performance, ensuring they get the most out of their PC builds.
