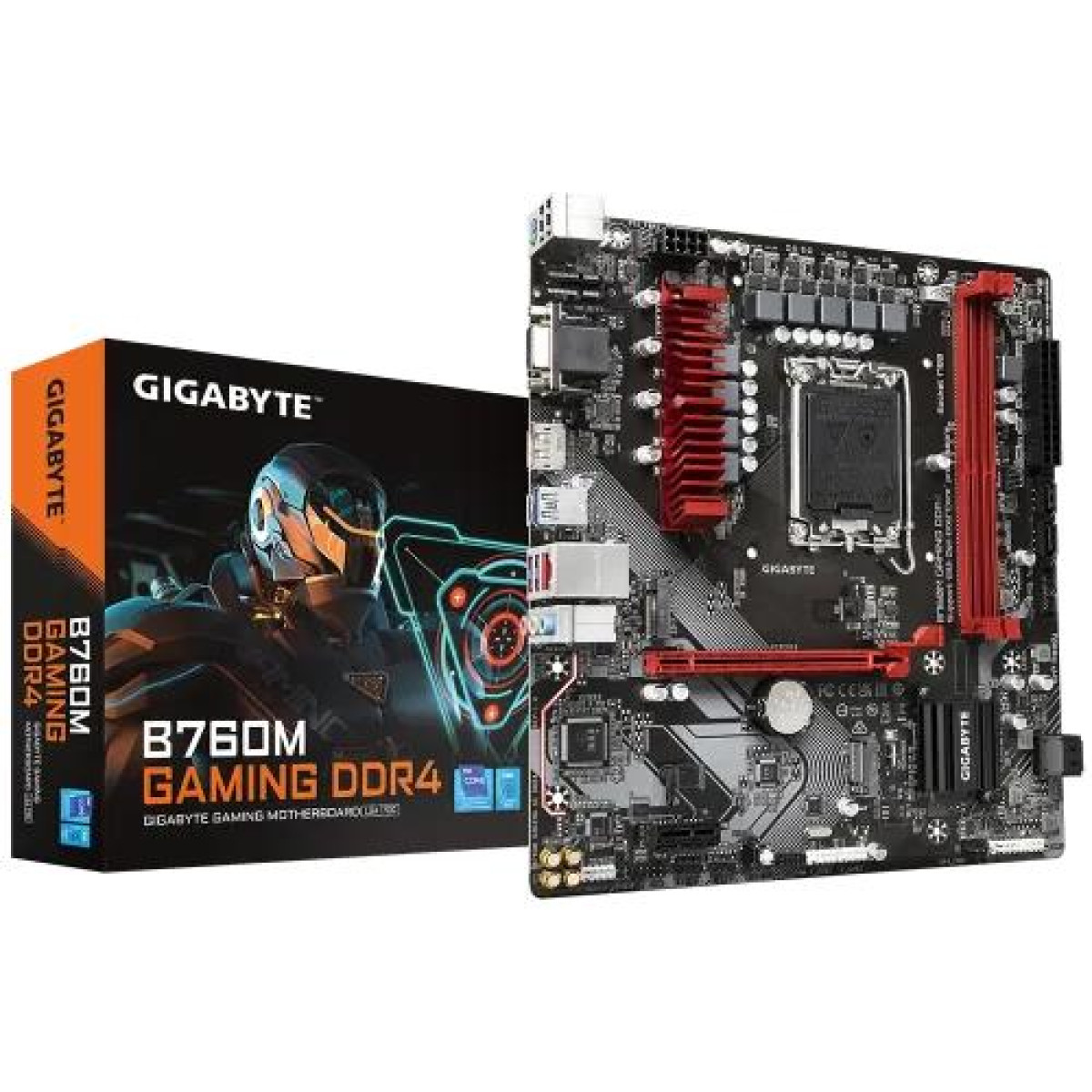

GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard
৳19,300
Key highlights
- Form Factor: Micro ATX Form Factor; 24.4cm x 22.5cm
- Supported CPU: LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
- Chipset: Intel B760 Express Chipset
- Slots: 2
- Audio: 3 x audio jacks
Description
Revised product name: GIGABYTE B760M Gaming DDR4 Micro ATX Motherboard
The GIGABYTE Micro ATX motherboard is engineered to support Intel's 14th, 13th, and 12th generation processors with the LGA1700 socket, making it a versatile choice for gamers and PC enthusiasts. This accommodates up to 64GB of DDR4 memory across two slots, with speeds reaching up to 5333 MHz when overclocked. It features a robust Hybrid 6+2+1 Phases Digital VRM solution, ensuring stable and efficient power delivery to the CPU. For graphics output, it offers 1x HDMI and 1x DisplayPort, providing flexible display options. The board is equipped with a Realtek 2.5GbE LAN chip, enabling fast network speeds of up to 2.5 Gbps. In terms of storage, the B760M supports next-generation speeds with two PCIe 4.0 x4 M.2 connectors, ideal for fast NVMe SSDs. The EZ-Latch design on the PCIe 4.0x16 slot allows for quick and easy GPU installation. Connectivity options are extensive, including a rear USB-C 5Gb/s port, along with DisplayPort, HDMI, and D-Sub outputs. The Smart Fan 6 technology provides advanced cooling capabilities with multiple temperature sensors and hybrid fan headers that include a FAN STOP feature. Additionally, the Q-Flash Plus function allows users to update the BIOS without needing to install the CPU, memory, or graphics card, simplifying the process of keeping the system up-to-date. In Bangladesh, you can get the original From Unix Network. We have a large collection of the latest to purchase for your . Order Online Or Visit your Nearest Shop to get yours at the lowest price. The GIGABYTE B760M GAMING DDR4 Motherboard comes with 3 years warranty.The GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard is a high-performance gaming motherboard designed for enthusiasts seeking powerful gaming experiences. This micro ATX motherboard features support for 8th and 9th Gen Intel Core Processors, providing top-of-the-line performance for smooth gameplay.
Equipped with DDR4 memory support, this motherboard allows for faster data transfer speeds and improved multitasking capabilities. The B760M GAMING motherboard also features RGB Fusion technology, allowing users to customise the RGB lighting effects on their system for a personalised gaming setup.
With support for dual M.2 slots and PCIe Gen3 x4 M.2, this motherboard offers fast storage options for quick access to game files and applications. Additionally, the GIGABYTE B760M GAMING motherboard boasts a high-quality audio system with Realtek ALC887 audio codec for immersive sound quality during gameplay.
Overall, the GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard is a powerful and feature-rich option for gamers looking to build a high-performance gaming rig.
GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard - Best Motherboard for Gaming in BangladeshUpgrade your gaming setup with the GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard, designed for high performance and reliable gameplay. Featuring top-of-the-line
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor; 24.4cm x 22.5cm |
| Supported CPU | LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU |
| Chipset | Intel B760 Express Chipset |
| Slots | 2 |
| Audio | 3 x audio jacks |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| Memory Specifications | |
| Maximum Memory | supporting up to 64 GB (32 GB single DIMM capacity) |
| Supported Memory | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub port |
| HDMI | 1x HDMI |
| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip headers 1 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 1 x DisplayPort 3 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x RJ-45 port 3 x audio jacks |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| USB (s) | Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Special | |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| WARRANTY | |
| Manufacturing Warranty | 3 years Warranty |
