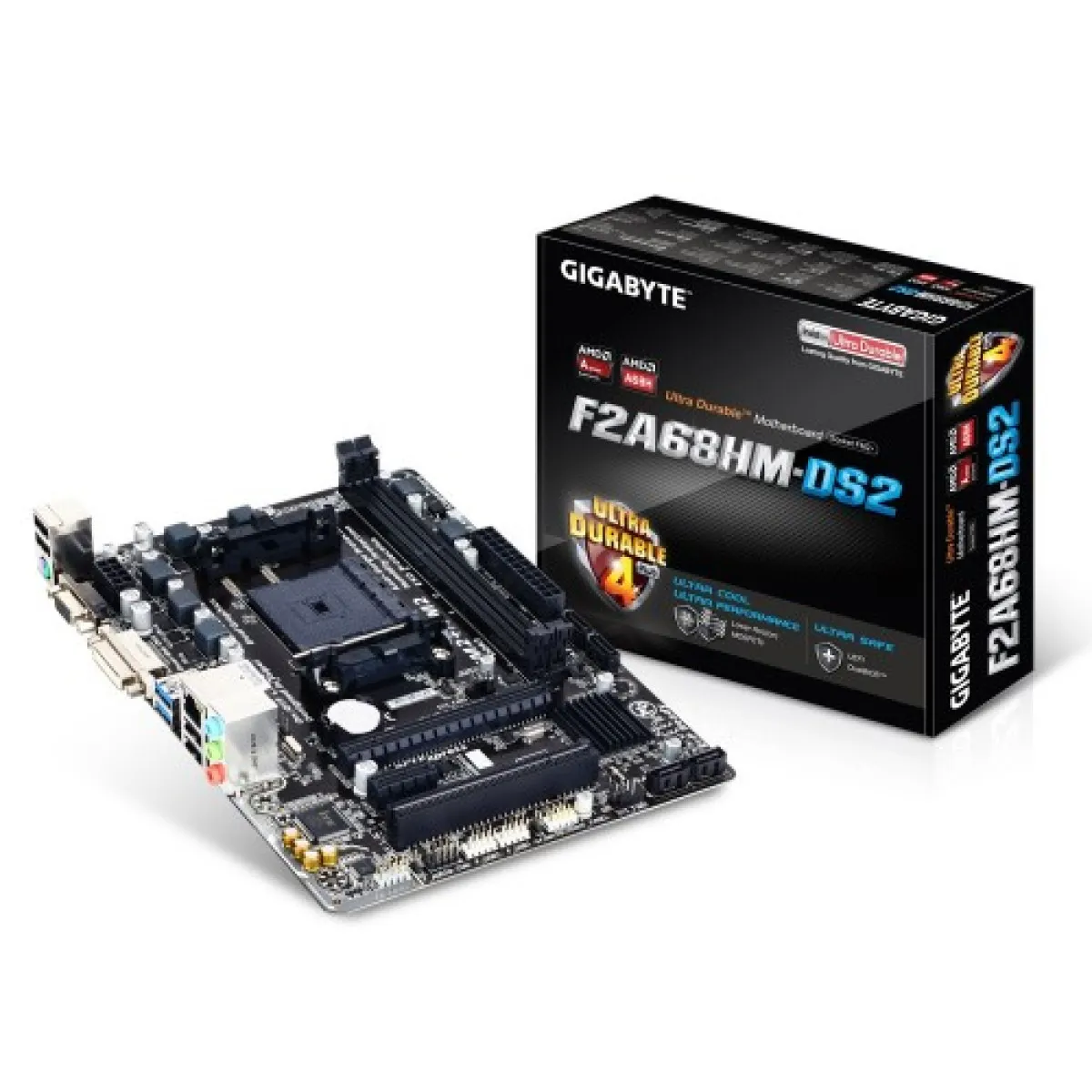

GIGABYTE GA-F2A68HM-DS2 Ultra Durable 4 Plus AMD FM2 Socket Motherboard
Key highlights
- Form Factor: Micro ATX Form Factor; 22.6cm x 17.4cm
- Supported CPU: AMD A series processors AMD Athlon series processors
- Memory: 64GB
- Slots: 2 x DDR3 DIMM
- Audio: Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Description
Buy GIGABYTE GA-F2A68HM-DS2 at Unix Network Jashore
GIGABYTE GA-F2A68HM-DS2: Unleash Your PC's Potential
The GIGABYTE GA-F2A68HM-DS2 Ultra Durable 4 Plus motherboard is designed to provide an exceptional computing experience for both gamers and professionals alike. With its AMD FM2 Socket, this motherboard supports a wide range of AMD A-Series APUs, ensuring compatibility with the latest processors for enhanced performance. Featuring GIGABYTE's renowned Ultra Durable technology, it offers superior longevity and reliability, allowing you to build a powerful system that lasts.
Equipped with dual channel DDR3 memory support, the GA-F2A68HM-DS2 enables faster data processing and multitasking capabilities, making it ideal for resource-intensive applications. Its integrated HD graphics deliver stunning visuals without the need for a dedicated graphics card, making it perfect for casual gaming and multimedia tasks.
The motherboard also includes multiple USB 3.0 ports for lightning-fast data transfer rates and a Revamped BIOS interface that simplifies system management. Additionally, the durable capacitors and solid-pin power connectors ensure stable power delivery, enhancing overall system stability and performance.
Ultra Durable 4 Plus Motherboard for AMD FM2 Socket
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor; 22.6cm x 17.4cm |
| Supported CPU | AMD A series processors AMD Athlon series processors |
| Memory | 64GB |
| Slots | 2 x DDR3 DIMM |
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| BIOS | 2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| PCI | x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) 1 x PCI slot |
| Graphics Specifications | |
| Max Shared Memory | 2GB |
| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200 1 x DVI-D port, supporting a maximum resolution of 2560x1600 Multi-Graphics Technology: Support for AMD Dual Graphics technology Support for AMD Eyefinity technology |
| Memory Specifications | |
| Supported Memory | Support for DDR3 2400(OC)/2133/1866/1600/1333 MHz memory modules Support for AMD Memory Profile (AMP)/Extreme Memory Profile (XMP) memory modules |
| Type | Dual channel memory architecture |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920x1200 |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 2560x1600 |
| LAN Port (s) | Realtek GbE LAN chip (10/100/1000 Mbit) |
| Supported Storage | Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 10, and JBOD |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x APU fan header 2 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper 1 x chassis intrusion header |
| Special | |
| Special Feature | Support for @BIOS Support for Q-Flash Support for Xpress Install Support for EasyTune Support for Smart Recovery 2 Support for ON/OFF ChargeSupport for @BIOS Support for Q-Flash Support for Xpress Install Support for EasyTune Support for Smart Recovery 2 Support for ON/OFF Charge |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
