Key highlights
- Form Factor: Micro ATX Form Factor; 22.6cm x 18.5cm
- Supported CPU: Support for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1200 package L3 cache varies with CPU
- Chipset: Intel H410 Express Chipset
- BIOS: 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- M.2 Socket: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
Description
Affordable 10th Gen Micro ATX Motherboard at Unix Network

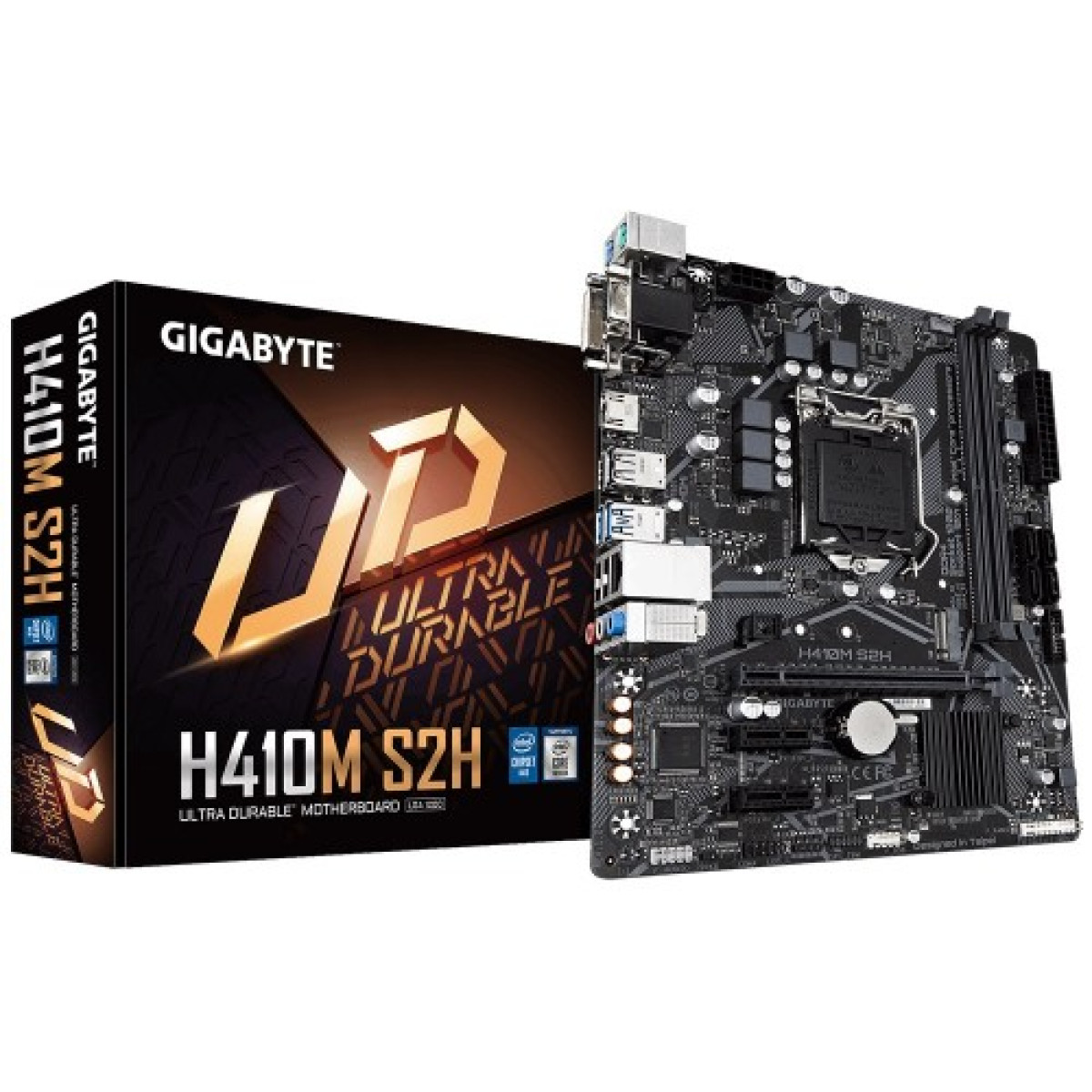

Gigabyte H410M S2H 10th Gen Micro ATX Motherboard
Introducing the Gigabyte H410M S2H, a powerful micro ATX motherboard designed to support Intel's 10th generation processors. This motherboard is engineered for optimal performance and reliability, making it an ideal choice for both gamers and professionals in Bangladesh. With its robust build quality and advanced features, the H410M S2H ensures seamless multitasking and efficient processing.
Equipped with dual-channel DDR4 memory, this motherboard supports up to 64GB of RAM, allowing for faster data transfer and improved overall system performance. The PCIe 3.0 x16 slot provides ample opportunity for graphics card upgrades, making it suitable for gaming and intensive graphic tasks.
Furthermore, the H410M S2H includes multiple connectivity options, including USB 3.2, HDMI, and SATA III, ensuring compatibility with a wide range of devices and peripherals. Its Smart Fan 5 technology keeps the system cool and quiet, essential for long gaming sessions or demanding applications.
Invest in the Gigabyte H410M S2H for a motherboard that combines performance, durability, and versatility, tailored for the needs of Bangladeshi consumers who seek quality and efficiency in their computing experiences.
Get the Best Performance with Gigabyte H410M S2H
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor; 22.6cm x 18.5cm |
| Supported CPU | Support for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1200 package L3 cache varies with CPU |
| Chipset | Intel H410 Express Chipset |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) |
| PCI | 1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slot |
| Graphics Specifications | |
| Max Shared Memory | 512MB |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz |
| Memory Specifications | |
| Maximum Size | 64 GB |
| Slots | 2 x DDR4 DIMM |
| Supported Memory | Intel Core i9/ i7 processors: Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules Intel Core i5/ i3/ Pentium /Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Type | Dual-channel architecture |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
| D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz |
| LAN Port (s) | Realtek GbE LAN chip (1000/100 Mbit) |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) 4 x SATA 6Gb/s connectors |
| USB (s) | 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |
| Special | |
| Bundled Software | Support for Windows 10 64-bit |
| Special Feature | Support for APP Center @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
| WARRANTY | |
| Manufacturing Warranty | 03 Years |
