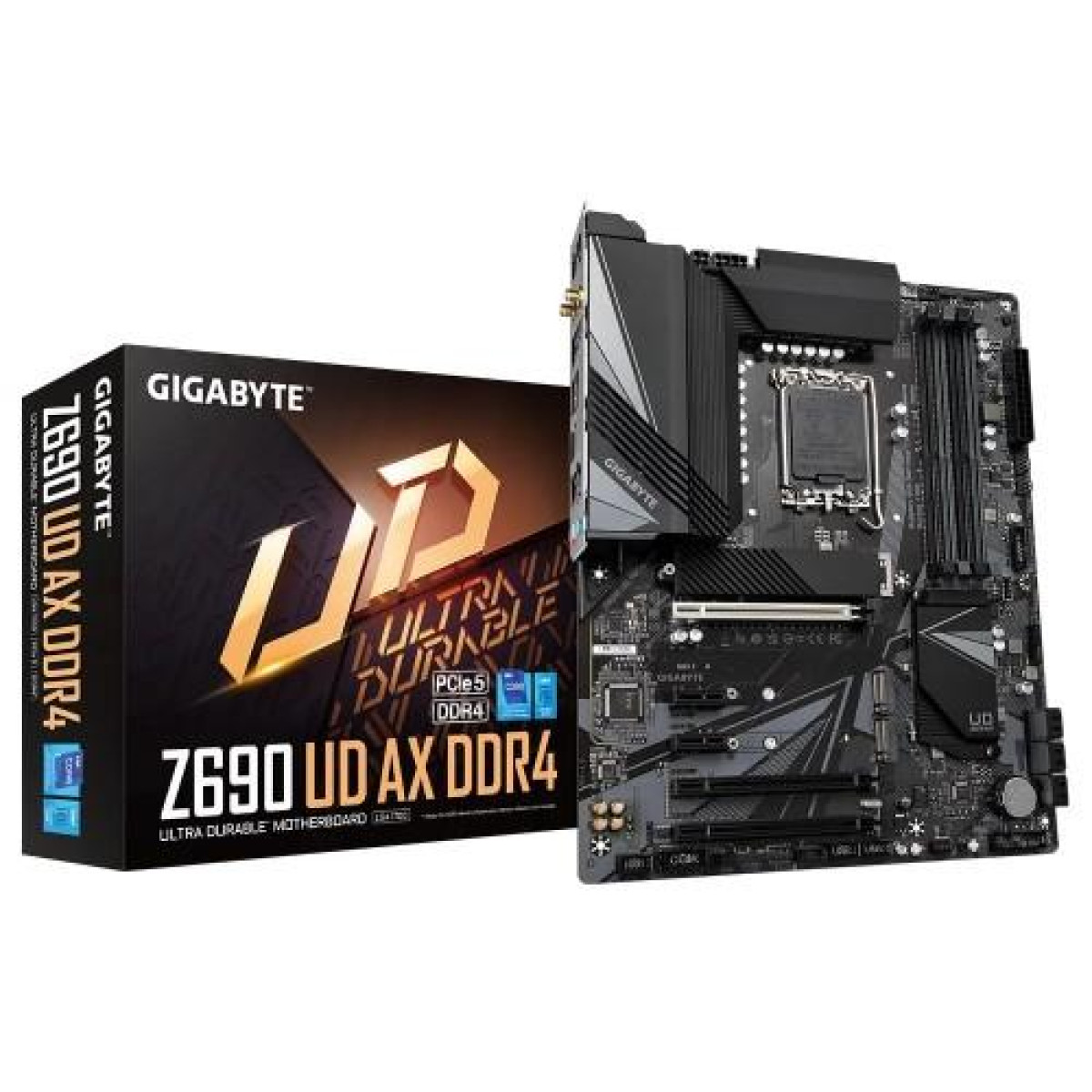

GIGABYTE Z690 UD AX DDR4 ATX Motherboard
- Brand:Gigabyte
- Product Code: GIGABYTE Z690 UD AX DDR4 ATX Motherboard
- Availability:In Stock
- Updated:
৳17,500
Specification
| BASIC INFORMATION | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
|---|---|
| Supported CPU | Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700) L3 cache varies with CPU |
| Chipset | Intel Z690 Express Chipset |
| Slots | 4 x DIMM |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset. |
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x16 slot, running at x1 (PCIEX1_4) 2 x PCI Express x1 slots (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.) |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3. Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) |
| Memory Specifications | |
| Maximum Memory | up to 128 GB (32 GB single DIMM capacity) of system memory |
| Supported Memory | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules 4 x DDR DIMM sockets supporting Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort |
| HDMI | 1 x HDMI port |
| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 2 x Thunderbolt add-in card connectors 1 x reset button 1 x reset jumper 1 x Q-Flash Plus button 1 x Clear CMOS jumper All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. Back Panel Connectors 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset. |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| USB (s) | Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Wireless Communication module | Intel Wi-Fi 6 AX201 (For PCB rev. 1.0) Intel Wi-Fi 6 AX200 (For PCB rev. 1.1/1.2) WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands Intel Wi-Fi 6E AX211 (For PCB rev. 1.3/1.4) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment. |
| Special | |
| Bundled Software | Norton Internet Security (OEM version) Realtek Gaming LAN Bandwidth Control Utility |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
Description
The GIGABYTE Z690 UD AX DDR4 supported 14th, 13th & 12th Gen Intel Core Series Processors. This motherboard featured with Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs, 16+1+2 Twin Hybrid Phases Digital Power Design with 60A Power Stage* and Tantalum Polymer Capacitor, Ultra Performance VRM Heatsinks, Intel WIFI6 802.11ax 2T2R & BT5.2 with AERO Antenna and Fast 2.5 GbE LAN with Bandwidth Management. The motherboard comes with Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs, 16 (8+8 phases parallel power design)+1+2 Twin Hybrid Phases Digital Power Design with 60A Power Stage and Tantalum Polymer Capacitor, Ultra Performance VRM Heatsinks, Intel WIFI6 802.11ax 2T2R & BT5.2 with AERO Antenna and Fast 2.5 GbE LAN with Bandwidth Management. It is supported with LGA1700 socket: Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors. It comes with Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. It has a DDR4 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing. Advanced Thermal Solution with NanoCarbon Fins-Array III Heatsink, Direct-Touch Heatpipe II, and NanoCarbon Baseplate. It comes with Intel WIFI6 802.11ax 2T2R & BT5.2 with AERO Antenna. It has a Fast 2.5GbE LAN with Bandwidth Management. It has 3 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards. The SuperSpeed USB 3.2 Gen2x2 TYPE-C delivers up to 20Gb/s transfer speeds. It features RGB FUSION 2.0 - Addressable LED Headerx 2, RGB LED Header x 2 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips. The Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, and Noise Detection. The GIGABYTE Z690 UD AX DDR4 comes with 3 years of warranty.
The GIGABYTE Z690 UD AX DDR4 ATX Motherboard is a high-performance motherboard designed for gamers and enthusiasts seeking top-of-the-line features and compatibility. This ATX motherboard supports the latest 12th Gen Intel Core processors and DDR4 memory, ensuring lightning-fast speeds and smooth multitasking capabilities.
Key specifications of the GIGABYTE Z690 UD AX DDR4 ATX Motherboard include:
- Socket: LGA 1700
- Chipset: Intel Z690
- Memory: 4x DDR4 DIMM slots, supporting up to 128GB of system memory
- Expansion slots: 1x PCIe 5.0 x16 slot, 1x PCIe 5.0 x16 slot (x8 mode), 3x PCIe 3.0 x1 slots
- Storage: 6x SATA 6Gb/s connectors, 2x M.2 slots
- Networking: Realtek 2.5GbE LAN, Intel Wi-Fi 6E AX210
- Audio: Realtek ALC897 audio codec
- Rear I/O: USB 3.2 Gen 2 Type-C, USB 3.2 Gen 2 Type-A, HDMI, DisplayPort, 2.5GbE LAN port, Wi-Fi antenna connectors
Overall, the GIGABYTE Z690 UD AX DDR4 ATX Motherboard delivers outstanding performance and connectivity options, making it an ideal choice for PC builders looking to create a powerful gaming rig or high-performance workstation.
