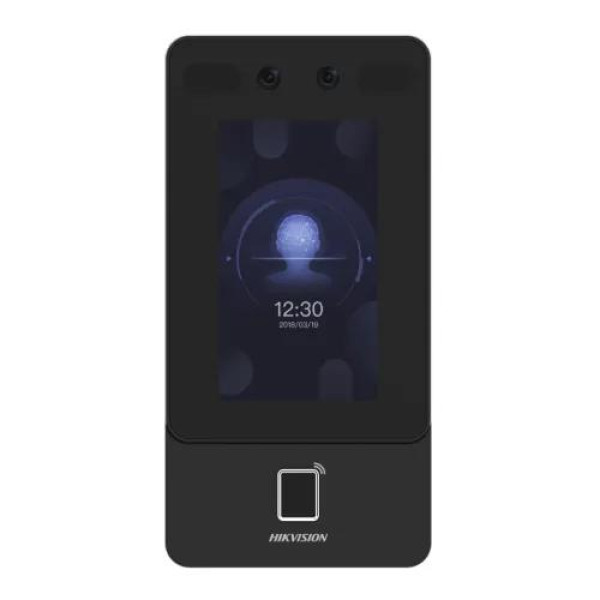

Hikvision DS-K1T342EFWX-E1 Face Recognition Access Control Terminal
- Brand: HikVision
- Product Code: Hikvision DS-K1T342EFWX-E1 Face Recognition Access Control Termi
- Availability: In Stock
- Updated:
Description
The Hikvision DS-K1T342EFWX-E1 Face Recognition Access Control Terminal is a professional biometric access management device designed for offices, commercial buildings, institutions, factories and other controlled-entry environments. It combines face recognition, fingerprint authentication and EM card access in one compact terminal, giving organisations flexibility when managing authorised users and secure entry.
Hikvision DS-K1T342EFWX-E1 Face Recognition Access Control Terminal Price in Bangladesh
The DS-K1T342EFWX-E1 is a practical choice for customers looking for a Hikvision face recognition access control system in Bangladesh. It features a 4.3-inch capacitive touchscreen, 2MP dual-lens imaging system, multiple authentication methods, network connectivity, Wi-Fi and interfaces for door control equipment.
For customers in Jessore and across Bangladesh, Unix Network can provide assistance with product selection, availability, warranty information and access control system planning. The terminal is suitable for both standalone deployments and installations that require integration with a broader Hikvision security management environment.
Hikvision DS-K1T342EFWX-E1 Overview
The terminal uses a deep-learning-based face recognition system designed for fast user verification. Hikvision specifies face recognition within approximately 0.3 to 1.5 metres, with recognition duration below 0.2 seconds per user and an accuracy rate above 99 percent under the manufacturer's stated conditions.
Alongside facial authentication, the device supports fingerprint and EM card authentication. This multi-method approach is useful for organisations that need different access options for employees, visitors or authorised personnel.
Key Features of DS-K1T342EFWX-E1
- Face recognition access control terminal
- 2MP wide-angle dual-lens imaging system
- 4.3-inch LCD capacitive touchscreen
- Face recognition capacity of up to 1,500 users
- Fingerprint capacity of up to 3,000 users
- Card capacity of up to 3,000 cards
- Event capacity of up to 150,000 records
- Face recognition distance of approximately 0.3 to 1.5 metres
- Face recognition duration below 0.2 seconds per user
- Face recognition accuracy rate above 99 percent under specified conditions
- Face, fingerprint and EM card authentication
- Face recognition with mask support
- Face anti-spoofing support
- TCP/IP and Wi-Fi connectivity
- Standard PoE support
- RS-485 and Wiegand interfaces
- Lock output, exit button and door contact interfaces
- Tamper detection interface
- USB interface
- Wall-mount installation
Fast Face Recognition for Controlled Entry
Fast authentication is important in workplaces where many employees enter and leave throughout the day. The DS-K1T342EFWX-E1 is designed to verify registered users quickly, helping reduce unnecessary waiting at controlled entrances.
Hikvision specifies a face recognition duration of less than 0.2 seconds per user. Actual performance can vary depending on lighting, user positioning, network configuration, enrolled image quality and the installation environment.
Multiple Authentication Methods
One of the strongest advantages of this terminal is its support for several authentication methods. Users can be authorised through facial recognition, fingerprint or EM card authentication, allowing organisations to choose an access method according to their operational requirements.
Multiple authentication options can also provide greater flexibility when deploying the terminal across different departments or locations. For example, an organisation may primarily use face recognition while retaining cards or fingerprints as alternative authentication methods.
Face Recognition Capacity
The terminal supports up to 1,500 face records, making it suitable for many small and medium-sized organisations as well as selected larger access control installations. User capacity should always be planned according to the complete access control architecture and the intended management platform.
Fingerprint and Card Authentication
The DS-K1T342EFWX-E1 supports up to 3,000 fingerprint records and 3,000 card records. Its built-in EM card reader operates at 125 kHz, providing another convenient authentication method for users who prefer card-based entry.
Having face, fingerprint and card authentication available in one terminal can simplify access management where different user groups have different requirements.
4.3-Inch Touchscreen Interface
The 4.3-inch LCD capacitive touchscreen provides an interactive interface for users and administrators. Its touch-based operation makes everyday interaction more straightforward while giving the terminal a compact appearance suitable for modern office and commercial entrances.
Network and Wi-Fi Connectivity
The Hikvision DS-K1T342EFWX-E1 supports wired network communication as well as Wi-Fi. This provides flexibility when designing an access control installation and can simplify connectivity where suitable network infrastructure is already available.
The terminal also supports configuration through a web client and can work with Hikvision management platforms. Before installation, network addressing, access permissions and platform compatibility should be planned carefully.
PoE Support for Simplified Installation
Standard PoE support can simplify installation by allowing compatible network infrastructure to provide power and data connectivity through the network connection. The device can also operate from a 12V DC power supply.
PoE availability and the ability to power connected door hardware depend on the power source and installation configuration. Installers should verify the required power budget before connecting a lock or other access control equipment.
Door Control Interfaces
The terminal includes interfaces designed for integration with access control hardware. These include a lock output, exit button input and door contact input, allowing the device to form part of a complete controlled-entry system.
| Interface | Purpose |
|---|---|
| Network | IP network communication |
| RS-485 | Access control peripheral communication |
| Wiegand | Compatible access control interface |
| Lock output | Door lock control |
| Exit button | Exit request connection |
| Door contact | Door status monitoring |
| TAMPER | Tamper detection connection |
| USB | USB connectivity |
Face Anti-Spoofing and Mask Recognition
The terminal supports face anti-spoofing functionality to help distinguish genuine facial presentation from certain attempts to deceive the recognition system. It also supports face recognition with masks, providing additional flexibility for environments where users may wear face coverings.
Biometric security should always be implemented as part of a complete access control strategy. User enrolment, device placement, administrator permissions and system configuration all contribute to overall security.
Two-Way Audio Communication
The DS-K1T342EFWX-E1 supports two-way audio communication with compatible client software, indoor stations and main stations. This can be useful for controlled entrances where communication between visitors and authorised personnel is required.
Technical Specifications
| Specification | Details |
|---|---|
| Model | DS-K1T342EFWX-E1 |
| Display | 4.3-inch LCD capacitive touchscreen |
| Camera | 2MP wide-angle dual-lens |
| Face Capacity | Up to 1,500 |
| Fingerprint Capacity | Up to 3,000 |
| Card Capacity | Up to 3,000 |
| Event Capacity | Up to 150,000 records |
| Face Recognition Distance | 0.3 to 1.5 metres |
| Face Recognition Duration | Less than 0.2 seconds per user |
| Face Recognition Accuracy | Above 99% under specified conditions |
| Card Type | EM card |
| Card Frequency | 125 kHz |
| Network | 10/100/1000 Mbps Ethernet |
| Wi-Fi | 2.4 GHz 802.11b/g/n |
| Power Supply | 12V DC, 1A |
| PoE | IEEE 802.3at standard PoE |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | 0 to 90%, non-condensing |
| Installation | Wall mounting |
| Dimensions | 91.3 × 181.3 × 24.5 mm |
| Net Weight | Approximately 0.36 kg |
Ideal Applications
The Hikvision DS-K1T342EFWX-E1 can be used in a variety of environments where controlled access and user verification are required.
- Corporate offices
- Factories and industrial facilities
- Commercial buildings
- Educational institutions
- Financial organisations
- Retail businesses
- Warehouses
- Residential and apartment buildings
- Restricted staff areas
- Server rooms and controlled facilities
- Attendance and employee management environments
Access Control and Attendance Management
Besides door access, the terminal can be useful in employee attendance environments. Facial authentication provides a convenient method for identifying registered users, while card and fingerprint options can accommodate alternative workflows.
For organisations planning an attendance system, it is important to verify the required software, reporting functions, user capacity and integration requirements before purchase.
Things to Consider Before Buying
- Confirm the required number of face, fingerprint and card users.
- Check compatibility with the intended Hikvision management platform.
- Plan the door lock, exit button and door contact wiring before installation.
- Ensure adequate network connectivity at the installation point.
- Confirm whether wired Ethernet, Wi-Fi or PoE is most appropriate for the site.
- Consider lighting and mounting position for reliable face recognition.
- Verify the required access control and attendance software before deployment.
- Confirm current warranty terms and included accessories with the seller.
Why Buy Hikvision DS-K1T342EFWX-E1 from Unix Network?
Unix Network is a technology retailer in Jessore, Bangladesh, serving customers looking for computers, networking equipment, CCTV products, access control systems and other IT solutions. Customers can discuss their security requirements before selecting suitable access control hardware.
For buyers in Jessore, Jashore and nearby areas, Unix Network can assist with product selection and system planning. Customers from Jhenaidah, Magura, Narail, Satkhira, Khulna, Kushtia, Chuadanga and other parts of Bangladesh can also enquire about nationwide delivery, availability and warranty support.
Buying Guide for Face Recognition Access Control
Before purchasing the DS-K1T342EFWX-E1, identify how many users need access and decide which authentication methods are required. For a workplace, facial recognition may provide convenient daily entry, while cards or fingerprints can serve as alternatives.
Next, consider the door hardware, network connection, power arrangement and management software. A complete access control system should be planned as one integrated solution rather than selecting the terminal separately from the lock, networking equipment and management platform.
Warranty and After-Sales Support
Warranty coverage can depend on the supplier and purchase channel. Buyers should confirm the applicable warranty period, service conditions and included accessories with Unix Network before ordering. Proper configuration and installation can also help ensure dependable long-term operation.
Frequently Asked Questions
What is the Hikvision DS-K1T342EFWX-E1?
It is a face recognition access control terminal that supports facial recognition, fingerprint and EM card authentication for controlled-entry applications.
How many faces can the terminal store?
The terminal supports up to 1,500 face records.
Does the DS-K1T342EFWX-E1 support fingerprints?
Yes. It supports fingerprint authentication with a capacity of up to 3,000 fingerprint records.
Does it support access cards?
Yes. The built-in EM card reader supports 125 kHz cards, with capacity for up to 3,000 card records.
How fast is the face recognition?
Hikvision specifies a face recognition duration of less than 0.2 seconds per user under the manufacturer's stated conditions.
Does it support Wi-Fi?
Yes. The terminal supports 2.4 GHz Wi-Fi as well as wired Ethernet networking.
Can it control a door lock?
Yes. The terminal provides a lock output and interfaces for an exit button and door contact, allowing it to form part of a complete access control installation.
Does it support PoE?
Yes. The device supports standard IEEE 802.3at PoE, subject to the requirements of the connected network and access control hardware.
Is the Hikvision DS-K1T342EFWX-E1 suitable for offices?
Yes. Its biometric authentication, card support, networking and door control interfaces make it suitable for many office and commercial access control applications.
Where can I buy the DS-K1T342EFWX-E1 in Bangladesh?
You can enquire about the Hikvision DS-K1T342EFWX-E1 from Unix Network in Jessore. Current availability, price, warranty and delivery arrangements should be confirmed before ordering.
Conclusion
The Hikvision DS-K1T342EFWX-E1 Face Recognition Access Control Terminal combines fast biometric identification with fingerprint and EM card authentication, making it a versatile option for modern access management. Its 4.3-inch touchscreen, 2MP dual-lens system, network connectivity, Wi-Fi, PoE support and door control interfaces make it suitable for offices, commercial premises, institutions and other controlled-entry environments. For customers seeking a flexible Hikvision access control solution in Bangladesh, the DS-K1T342EFWX-E1 offers a strong combination of authentication options and system integration features.
