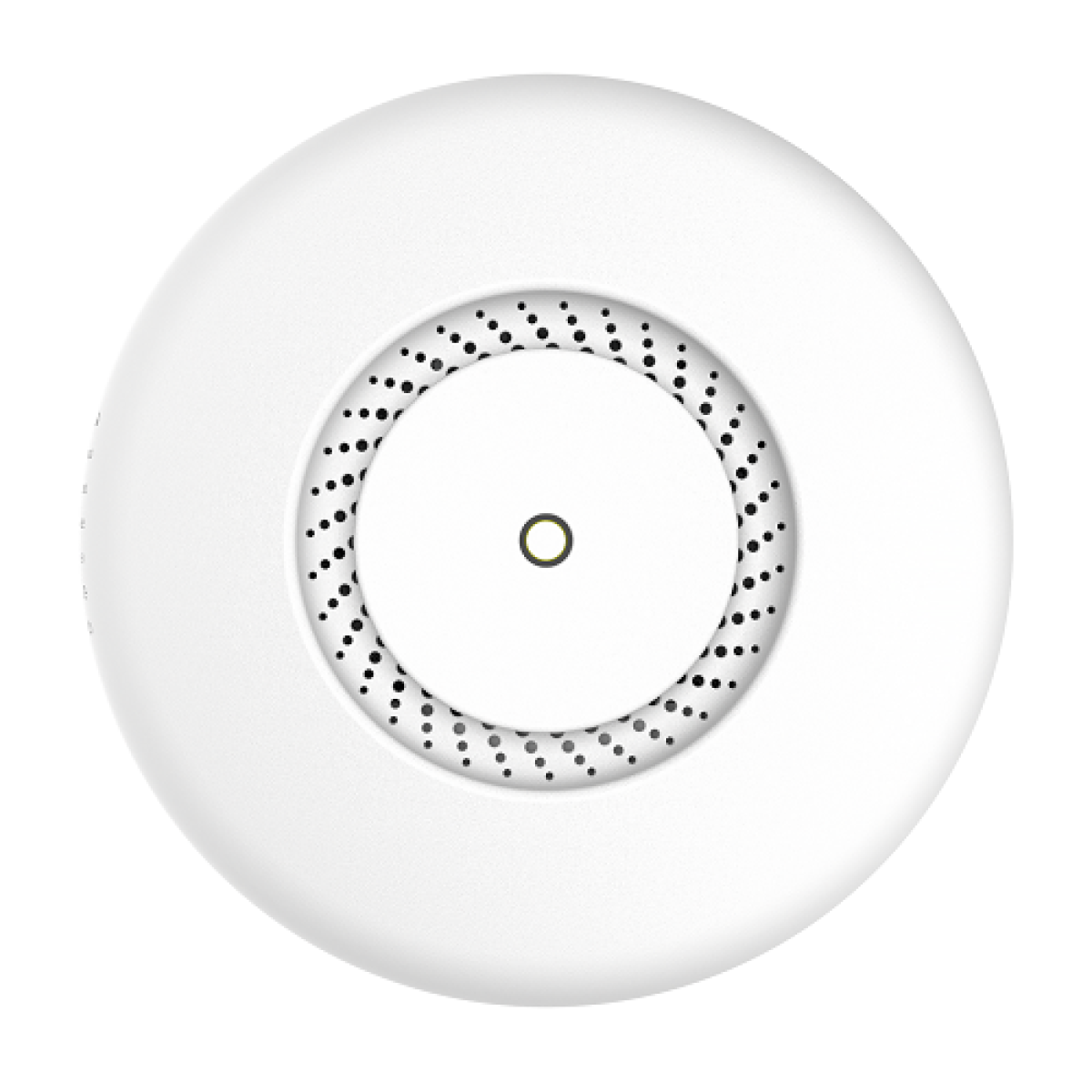

Mikrotik cAP ac Dual Band Ceiling & Wall Mounting Access Point/Repeater Router
- Brand:Mikrotik
- Product Code: cAP ac
- Availability:Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Frequency | 716 MHz |
|---|---|
| Interface | Architecture ARM 32bit CPU IPQ-4018 CPU core count 4 CPU nominal frequency 716 MHz RouterOS license 4 Size of RAM 128 MB Storage size 16 MB Storage type FLASH MTBF Approximately 100'000 hours at 25C Tested ambient temperature -40°C to 50°C |
| Network Standard | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac |
| Wireless | Wireless 2.4 GHz Max data rate 300 Mbit/s Wireless 2.4 GHz number of chains 2 Wireless 2.4 GHz standards 802.11b/g/n Antenna gain dBi for 2.4 GHz 2 Wireless 2.4 GHz chip model IPQ-4018 Wireless 2.4 GHz generation Wi-Fi 4 Wireless 5 GHz Max data rate 867 Mbit/s Wireless 5 GHz number of chains 2 Wireless 5 GHz standards 802.11a/n/ac Antenna gain dBi for 5 GHz 2.5 Wireless 5 GHz chip model IPQ-4018 Wireless 5 GHz generation Wi-Fi 5 AC speed AC1200 |
| Antenna | Antenna gained Under 10dbi Antenna type Integrated |
| Button | Yes |
| Key Features | |
| Operating system support | RouterOS |
| Main Features | |
| Data Rate | Wireless 2.4 GHz Max data rate 300 Mbit/s Wireless 5 GHz Max data rate 867 Mbit/s |
| PHYSICAL SPECIFICATION | |
| Dimensions (W x D x H) | Round case: ⌀ 136 mm, height: 30 mm; Square case: 145 mm x 145 mm x 30 mm |
| POWER SOURCE | |
| Power mode | PoE-out ports Ether2 PoE out Passive PoE up to 57V Max out per port output (input 18-30 V) 500 mA Max out per port output (input 30-57 V) 400 mA Max total out (A) 500 mA |
| WARRANTY | |
| Manufacturing Warranty | 01-year warranty. |
Description
Comprehensive Overview of Mikrotik cAP ac Dual Band Access Point
The Mikrotik cAP ac is a cutting-edge dual-band ceiling and wall mounting access point/repeater router that is designed to provide high-speed wireless connectivity in various environments. Ideal for both residential and commercial applications, this powerful device enhances the wireless performance of your network, ensuring seamless connectivity for all your devices.
Key Benefits:
One of the standout features of the Mikrotik cAP ac is its dual-band capability, offering both 2.4GHz and 5GHz frequencies. This dual-band functionality allows users to connect multiple devices without experiencing lag or interference, making it perfect for high-density environments such as offices, schools, and cafes. Additionally, with a maximum wireless throughput of 1300 Mbps on the 5GHz band and 400 Mbps on the 2.4GHz band, users can enjoy high-speed internet for streaming, gaming, and video conferencing.
Use Cases: The cAP ac is particularly effective in environments where traditional routers may struggle to provide adequate coverage. Its stylish design allows for discreet installation on ceilings or walls, making it an attractive option for public spaces. Furthermore, it is PoE (Power over Ethernet) capable, simplifying installation and reducing the need for additional power outlets.
Choosing the Mikrotik cAP ac means opting for a reliable, high-performance access point that is easy to manage and configure. With its robust hardware and user-friendly interface, customers can set up their network in minutes, ensuring that everyone can connect without hassle. Whether you are a small business owner looking to improve your network or a tech-savvy individual wanting to upgrade your home setup, the cAP ac is the perfect solution.
