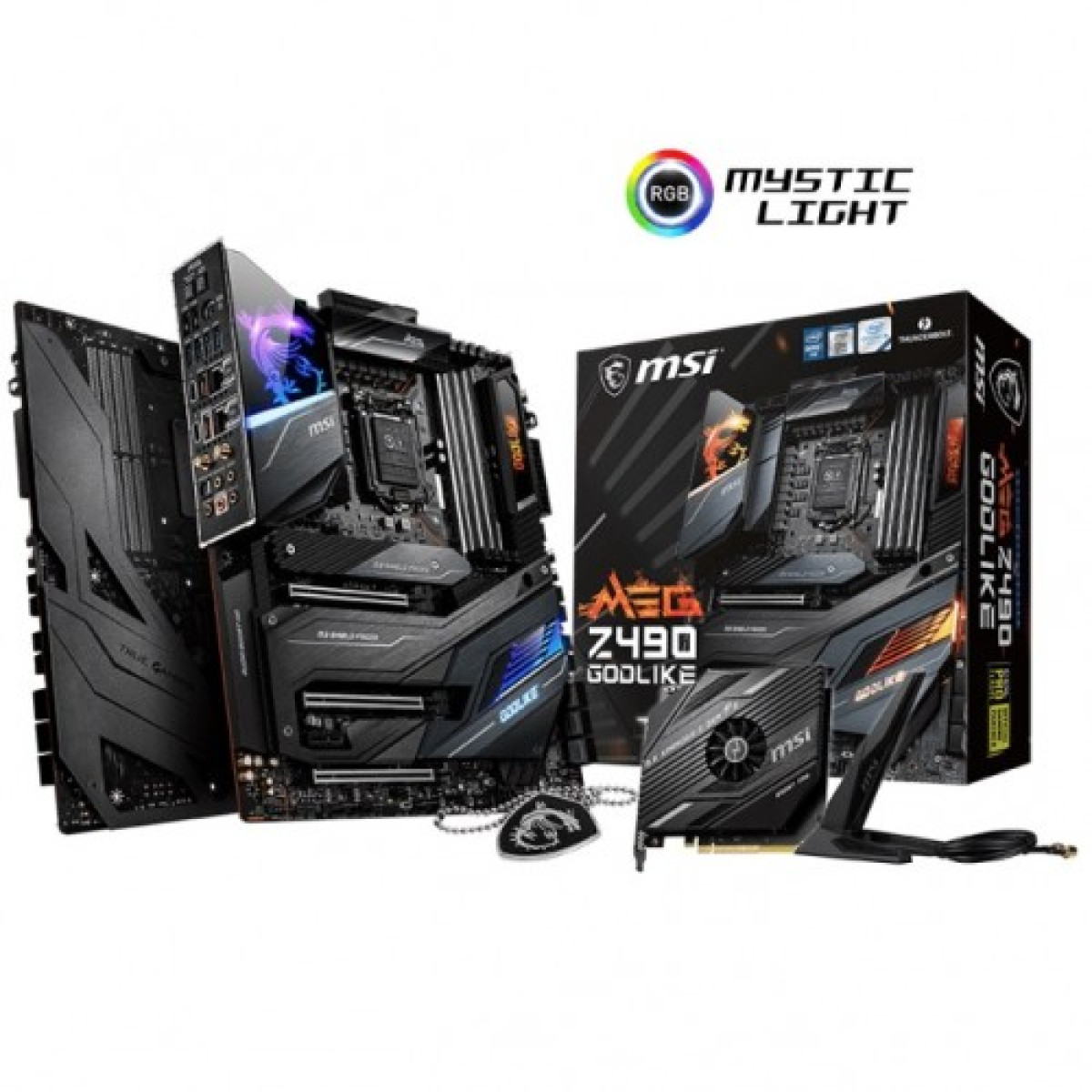

MSI MEG Z490 GODLIKE Motherboard for Ultimate Gaming
৳32,500
Key highlights
- Form Factor: 12 in. x 10.9 in. (30.5 cm x 27.7 cm) E-ATX Form Factor
- Supported CPU: Supports 10th Gen Intel Core and Pentium Gold /Celeron processors for LGA 1200 socket
- Chipset: Intel Z490 Chipset
- Audio: Realtek ALC1220 Codec + ESS E9018 combo DAC 7.1-Channel High Definition Audio Supports Optical S/PDIF output
- M.2 Socket: M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
Description
Explore MSI MEG Z490 GODLIKE Features and Benefits
Unleash Your Gaming Potential with the MSI MEG Z490 GODLIKE
The MSI MEG Z490 GODLIKE is a premium E-ATX gaming motherboard designed for serious gamers who demand the best in performance and features. With support for Intel's 10th Gen processors, this motherboard provides an exceptional platform for high-end gaming setups. Featuring advanced thermal solutions, including a robust heatpipe design and thermal pads, it ensures optimal heat dissipation for prolonged gaming sessions.
Equipped with Lightning Gen 4 PCIe slots, the MEG Z490 GODLIKE delivers unmatched speed and bandwidth for your gaming graphics cards and NVMe storage devices. The onboard Wi-Fi 6 technology offers faster wireless connectivity, which is essential for competitive gaming.
This motherboard also includes customizable RGB lighting through MSI Mystic Light, allowing gamers to personalize their builds for a unique look. With its extensive connectivity options, including USB 3.2 Gen 2 and multiple M.2 slots, the MSI MEG Z490 GODLIKE is the perfect choice for anyone looking to build a high-performance gaming rig.
Unleash Gaming Power with 10th Gen E-ATX Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | 12 in. x 10.9 in. (30.5 cm x 27.7 cm) E-ATX Form Factor |
| Supported CPU | Supports 10th Gen Intel Core and Pentium Gold /Celeron processors for LGA 1200 socket |
| Chipset | Intel Z490 Chipset |
| Audio | Realtek ALC1220 Codec + ESS E9018 combo DAC 7.1-Channel High Definition Audio Supports Optical S/PDIF output |
| Expansion Slots | |
| M.2 Socket | M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices |
| PCI | 3x PCIe 3.0 x16 slots, support x16/ x0/ x4 or x8/ x8/ x4 mode 1x PCIe 3.0 x1 slot |
| Graphics Specifications | |
| Max Shared Memory | Maximum shared memory is 1GB |
| Graphics | Intel JHL7540 Thunderbolt 3 Controller 2x Thunderbolt 3 (Type-C) ports on the back panel Supports Thunderbolt 3 with a maximum resolution of 5120x2880 @60 Hz Supports DisplayPort 1.4 with a maximum resolution of 4096x2304 @60 Hz |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Slots | 4 |
| Supported Memory | Supports 1R 2133/2666/2933 MHz 1DPC 1R Max speed up to 5000+ MHz 1DPC 2R Max speed up to 4400+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz |
| Type | Dual-Channel Architecture |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x Display Port 1.4 (4096x2304 @60 Hz) |
| LAN Port (s) | 1x Aquantia AQC107 10G LAN controller 1x Realtek RTL8125B 2.5G LAN controller |
| Supported Storage | Intel Z490 Chipset 6x SATA 6Gb/s ports 3x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors |
| USB (s) | Intel Z490 Chipset 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) ASMedia ASM1074 Chipset 8x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 4 ports through the internal USB 3.2 Gen 1 5Gbps connectors) Intel JHL7540 Thunderbolt 3 Controller 2x USB 3.2 Gen 2 10Gbps Type-C ports on the back panel Intel JHL7540 Thunderbolt 3 Controller 2x Thunderbolt 3 (USB Type-C) ports on the back panel Supports up to 40 Gbps transfer rate with Thunderbolt 3 devices Supports up to 10 Gbps transfer rate with USB 3.2 Gen 2 10Gbps devices Supports up to 5V/3A , 15W power charging Supports Daisy-chain up to six ThunderboltTM 3 devices |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin ATX PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 8x 4-pin system fan connectors 1x 3-pin Water Flow connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 2-pin Thermal Sensors connectors 1x TPM module connector 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR LED connector |
| Special | |
| Special Feature | WIFI & BLUETOOTH Intel AX201 Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps WiFi 6 Pre-Certified Supports Bluetooth® 5.1 , FIPS, FISMA The Wireless module is pre-install in the M2 (Key-E) slot |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
