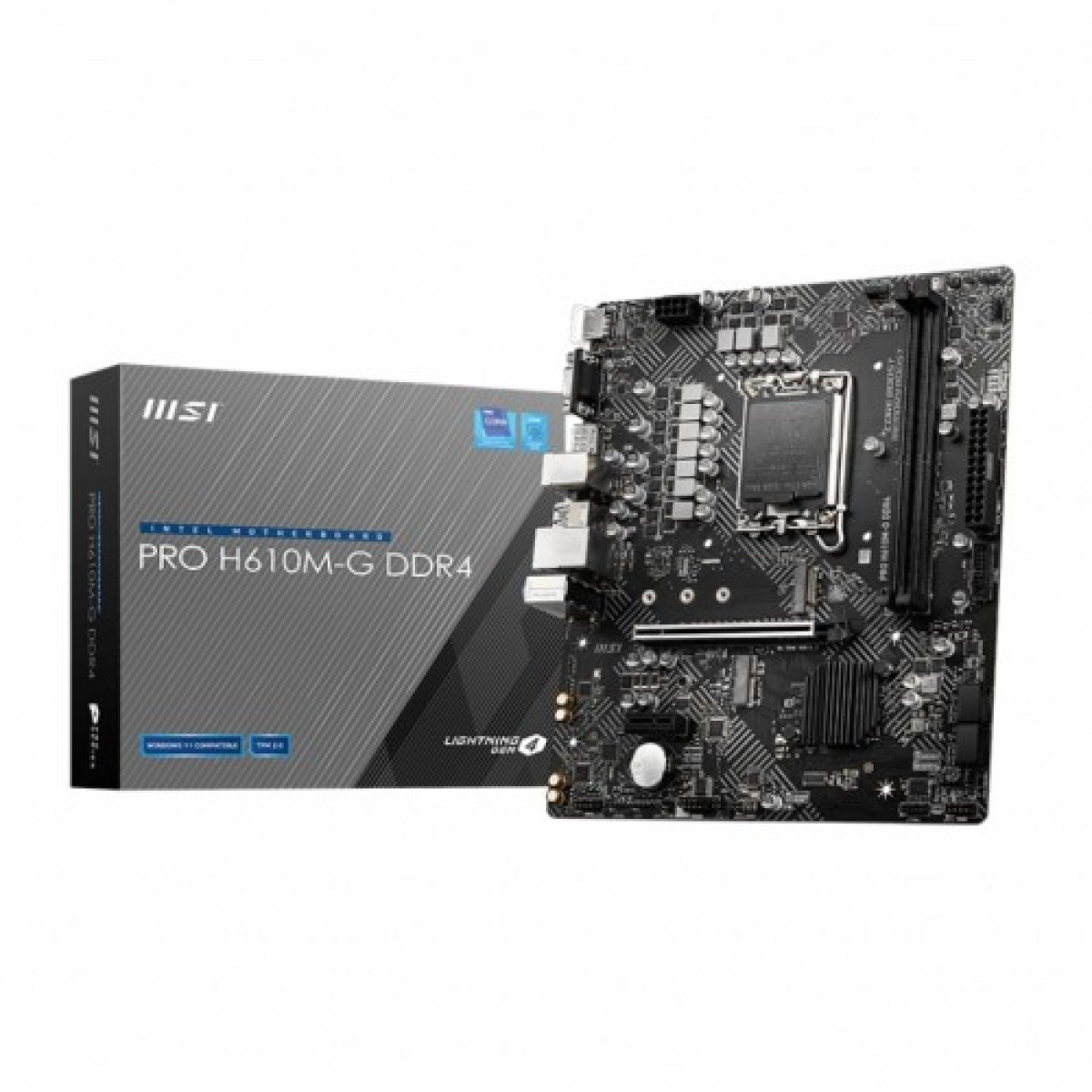

MSI PRO H610M-G DDR4 Micro-ATX Motherboard
Key highlights
- Chipset Model: Intel H610 Chipset
- Form Factor: mATX Form Factor 9.29 x 7.95 in. (23.6 cm x 20.2 cm)
- Slots: 2x DDR4 memory slots
- Audio: Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio
- Type: DDR4
Description
Shop High-Performance MSI Micro-ATX Motherboard Today
Experience Unmatched Performance with the MSI PRO H610M-G DDR4 Micro-ATX Motherboard
The MSI PRO H610M-G DDR4 Micro-ATX Motherboard is engineered for exceptional performance and reliability, making it the perfect choice for both gamers and professionals alike. This motherboard is designed to support the latest Intel processors, allowing for seamless multitasking and efficient power consumption. With its Micro-ATX form factor, it fits perfectly into compact cases while still providing a wealth of expansion options.
Enhanced Connectivity is a key feature of the MSI PRO H610M-G, boasting multiple USB ports, HDMI output, and support for high-speed networking. Whether you're building a new system or upgrading an existing one, this motherboard ensures that you have the connectivity you need for all your devices. With MSI’s proprietary software, you can also optimize your system's performance and cooling, ensuring that your PC runs efficiently even under heavy loads.
This motherboard also features robust build quality, with military-grade components that enhance durability and longevity. With a 24-hour continuous usage, you can rely on the MSI PRO H610M-G to deliver consistent performance. Invest in your future with a motherboard that not only meets your current needs but is also designed to grow with you.
MSI PRO H610M-G Features and Specifications Overview
Specification
| BASIC INFORMATION | |
|---|---|
| Chipset Model | Intel H610 Chipset |
| Form Factor | mATX Form Factor 9.29 x 7.95 in. (23.6 cm x 20.2 cm) |
| Slots | 2x DDR4 memory slots |
| Audio | Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio |
| Type | DDR4 |
| Memory Specifications | |
| Supported Memory | Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1x HDMI 2.1 |
| Internal I/O Ports | POWER CONNECTORS: 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector FAN CONNECTORS: 1x 4-pin CPU fan connector 1x 4-pin system fan connector SYSTEM CONNECTORS: 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector JUMPERS: 1x Clear CMOS jumper LED FEATURES: 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED |
| LAN Port (s) | 1x Intel I219V 1Gbps LAN controller |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
