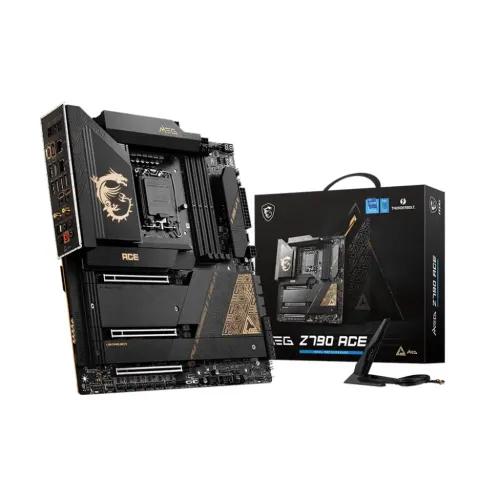

MSI MEG Z790 ACE E-ATX Motherboard
- Brand: MSI
- Product Code: MSI MEG Z790 ACE E-ATX Motherboard
- Availability: Out of Stock
- Updated:
৳76,499
Out of Stock
Specification
| BASIC INFORMATION | |
| Form Factor | E-ATX 277mmx304.8mm |
|---|---|
| Supported CPU | Supports 14th/12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
| Chipset | INTEL Z790 |
| Slots | 4 x DIMM |
| Audio | Audio Connectors |
| Expansion Slots | |
| PCI | 3x PCI-E x16 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 5.0 supports up to x8 (From CPU) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
| Graphics Specifications | |
| Graphics | 1x Type-C DisplayPort Supports a maximum resolution of 4K 60Hz |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x Type-C DisplayPort |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 2x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 2x USB 3.2 Gen 2x2 Type C V-check point |
| LAN Port (s) | 2x Intel 2.5Gbps LAN |
| Supported Storage | 5x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_4 (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_5 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices 6x SATA 6G port |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| USB (s) | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Front) 7x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 2x USB 3.2 Gen2x2 Type C (Front) |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
Description
Introduction
The MSI MEG Z790 ACE E-ATX Motherboard is a high-performance motherboard designed to support Intel's 12th and 13th generation Core processors, offering exceptional power and versatility for both gamers and PC enthusiasts. Built on the advanced Intel Z790 chipset, this motherboard is packed with the latest technologies, including PCIe 5.0 support, Wi-Fi 6E, and DDR5 memory compatibility, making it an excellent choice for users who demand top-tier performance and future-proofing. The MEG Z790 ACE features a robust VRM (Voltage Regulator Module) design, ensuring stable power delivery, especially for high-end CPUs during overclocking. Its E-ATX form factor provides ample room for expansion, with support for multiple GPUs, high-speed storage solutions, and advanced cooling configurations. Whether you're building a powerful gaming rig or a content creation workstation, the MSI MEG Z790 ACE offers premium features, durability, and a sleek aesthetic with its black and gold color scheme, designed to elevate the overall look of your setup.
People Also Ask (PAA)
What makes the MSI MEG Z790 ACE E-ATX motherboard special?
The MSI MEG Z790 ACE stands out due to its exceptional power delivery system, designed for stable overclocking, and support for the latest Intel Core processors. It boasts cutting-edge features such as PCIe 5.0, Wi-Fi 6E, DDR5 memory compatibility, and multiple M.2 slots for high-speed storage. The motherboard’s E-ATX form factor provides additional space for advanced configurations and upgrades. With premium capacitors and a robust VRM design, the MEG Z790 ACE ensures high performance even under heavy loads, making it ideal for gamers and power users.
Is the MSI MEG Z790 ACE good for gaming?
Yes, the MSI MEG Z790 ACE is an excellent choice for gaming. With PCIe 5.0 support for next-gen graphics cards, DDR5 memory compatibility, and the ability to handle the latest Intel Core processors, it offers lightning-fast performance for gaming. The motherboard is also equipped with Wi-Fi 6E for high-speed wireless connections and supports multiple GPUs for a more immersive experience. The superior power delivery system ensures that your system runs smoothly even during intense gaming sessions.
What are the key features of the MSI MEG Z790 ACE E-ATX motherboard?
Key features of the MSI MEG Z790 ACE include:
PCIe 5.0 support for next-gen graphics and storage devices.
Wi-Fi 6E for faster wireless speeds and reduced latency.
DDR5 memory compatibility, providing faster speeds and better performance.
Multiple M.2 and PCIe slots for high-speed storage and expansion.
Robust VRM design for stable power delivery during overclocking.
Premium capacitors and advanced cooling solutions for durability and efficiency.
Sleek, black and gold aesthetics for a premium look in custom builds.
Can the MSI MEG Z790 ACE support overclocking?
Yes, the MSI MEG Z790 ACE is built for overclocking, featuring a premium VRM design with high-quality capacitors and thermal pads to ensure stable power delivery under heavy loads. This makes it an ideal motherboard for enthusiasts who want to push their Intel Core processors beyond the factory clock speeds. With robust cooling solutions and comprehensive BIOS settings, the Z790 ACE provides a stable and reliable platform for overclocking both the CPU and memory.
What storage options are available on the MSI MEG Z790 ACE motherboard?
The MSI MEG Z790 ACE offers multiple high-speed storage options, including:
Four M.2 slots supporting PCIe 4.0 and PCIe 5.0 for ultra-fast SSDs.
Six SATA 6Gb/s ports for traditional hard drives or SATA SSDs.
RAID support for enhanced storage performance and redundancy. These options ensure that users can take full advantage of the latest high-speed storage technologies for faster load times and better overall performance.
Use Cases and Benefits
High-End Gaming Builds
The MSI MEG Z790 ACE is ideal for high-end gaming builds, supporting the latest Intel Core processors, DDR5 memory, and PCIe 5.0 graphics cards. The motherboard’s advanced features ensure that gamers can experience smooth, lag-free gameplay even in demanding titles. With multiple GPU support, users can also create multi-card setups for an even more immersive experience. Whether you’re playing AAA games or engaging in competitive esports, this motherboard has the power to handle it.
Content Creation Workstations
For content creators—whether they’re working on video editing, 3D rendering, or animation—the MSI MEG Z790 ACE provides a solid foundation. With PCIe 5.0, DDR5 support, and Wi-Fi 6E, the motherboard enables faster data transfers and network speeds, essential for large media files. The support for multiple M.2 SSDs means you can store and work with large files at lightning speeds, while the advanced cooling and power delivery system ensures stable performance during intense workloads.
Overclocking Enthusiasts
The MSI MEG Z790 ACE is perfect for overclocking enthusiasts who want to maximize their system’s performance. The high-end VRM design and premium capacitors ensure that the motherboard can handle the extra power requirements during overclocking. The advanced cooling solutions help maintain low temperatures during high loads, and the BIOS offers detailed control over clock speeds and voltages, allowing users to fine-tune their system for optimal performance.
Competitive Advantages
The MSI MEG Z790 ACE distinguishes itself from other Z790 motherboards by offering a perfect balance of performance, expansion options, and aesthetic appeal. Unlike some competitors, the MEG Z790 ACE includes PCIe 5.0 and Wi-Fi 6E, both of which future-proof your system for the next generation of gaming and computing technologies. Its robust VRM design and high-quality capacitors make it an excellent choice for overclockers, while the E-ATX form factor allows for more flexibility in build options. The sleek black and gold design gives your custom PC a premium look, setting it apart from other motherboards in terms of both performance and style.
The MSI MEG Z790 ACE E-ATX Motherboard is a high-performance motherboard designed for gaming and content creation. With support for Intel's 12th generation processors, this motherboard offers lightning-fast processing speeds and unparalleled performance.
This motherboard features an extended ATX form factor, allowing for plenty of room for expansion and connectivity options. It boasts four DDR5 memory slots, supporting up to 128GB of RAM, ideal for multitasking and running resource-heavy applications.
Equipped with dual PCIe 5.0 x16 slots and M.2 slots for ultra-fast storage capabilities, the MSI MEG Z790 ACE E-ATX Motherboard is perfect for gamers and professionals who require speedy data access and transfer rates. Additionally, it includes USB 3.2 Gen 2 ports, USB-C connectivity, and built-in Wi-Fi 6E for seamless networking.
The motherboard is designed with an aesthetic appeal, featuring RGB lighting zones and customisable lighting effects to enhance your build's appearance. The MSI MEG Z790 ACE E-ATX Motherboard is the perfect choice for those seeking a high-end, feature-rich motherboard for their next PC build.
