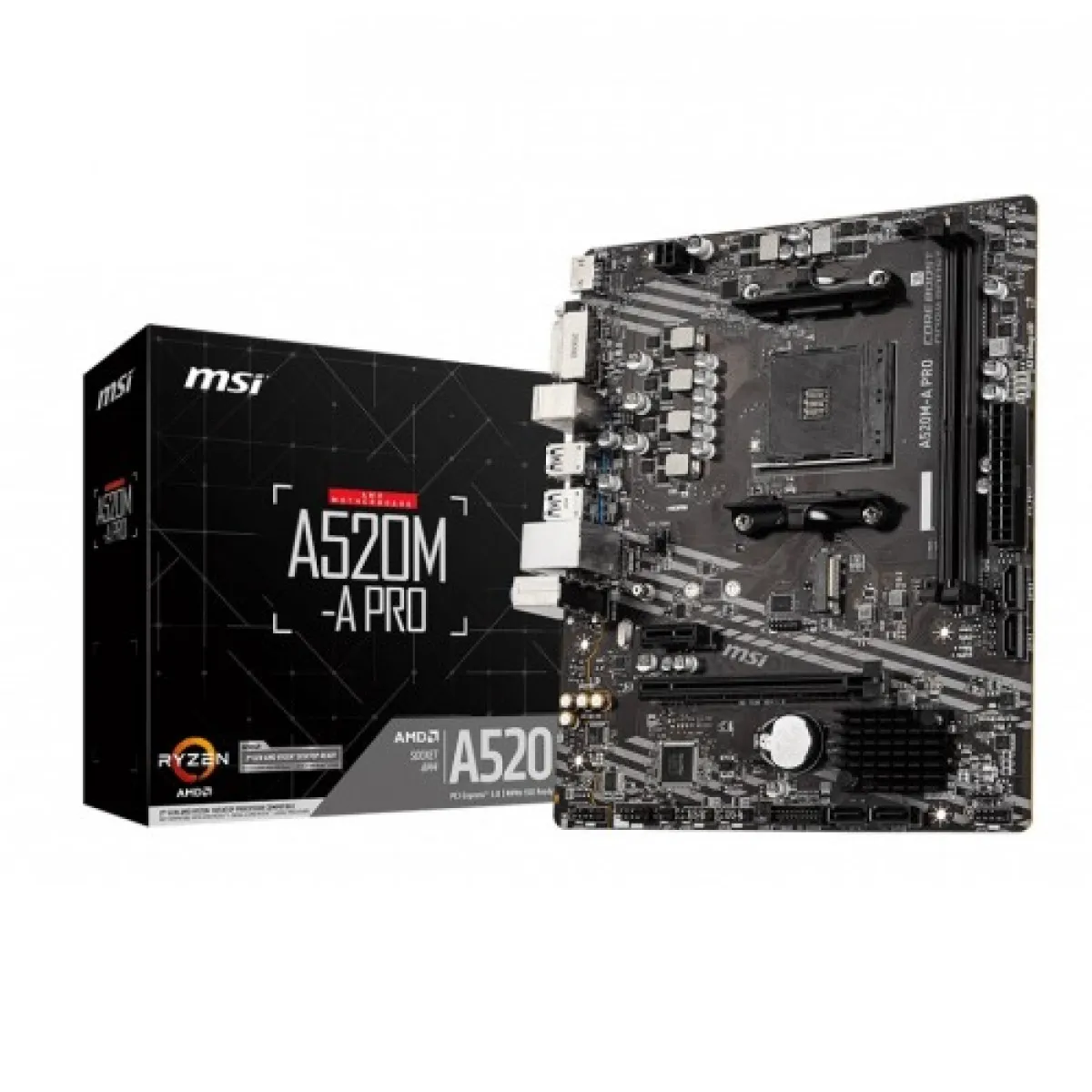

MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard
You save ৳200
was ৳8,300
Key highlights
- Form Factor: Micro-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
- Supported CPU: Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update.
- Chipset: AMD B520
- M.2 Socket: 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
- PCI: 1x PCIe 3.0 x1 slot 1x PCIe x16 slot
Description
Affordable Micro-ATX Motherboard for AMD Processors
Discover the MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard
The MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard is designed for gamers and professionals alike, offering a robust platform for building your dream PC. This motherboard supports the latest AMD Ryzen processors, ensuring you have the power you need for gaming, content creation, and multitasking. With its Micro-ATX form factor, it fits perfectly in mid-tower cases, providing an excellent balance of size and performance.
Enhanced Connectivity: Featuring multiple USB ports, HDMI, and DisplayPort outputs, the A520M-A Pro allows you to connect a wide range of peripherals and display options. This is ideal for users who require high-resolution displays or multiple monitors for productivity.
Reliable Performance: Equipped with advanced thermal solutions and military-grade components, this motherboard promises durability and stability. The optimized layout allows for better airflow and heat dissipation, ensuring that your system runs cool even under heavy loads.
Upgrade Your Experience: With support for up to 64GB of DDR4 RAM, you can enjoy smooth multitasking and improved performance in applications that demand high memory bandwidth. The MSI A520M-A Pro is the perfect choice for anyone looking to build a reliable and powerful system.
High Performance MSI A520M-A Pro for Your PC Build
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20 cm) |
| Supported CPU | Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update. |
| Chipset | AMD B520 |
| Expansion Slots | |
| M.2 Socket | 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
| PCI | 1x PCIe 3.0 x1 slot 1x PCIe x16 slot |
| Graphics Specifications | |
| Max Shared Memory | 16GB |
| Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz |
| Memory Specifications | |
| Maximum Size | 64GB |
| Slots | 2x DDR4 memory slots |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Type | Dual-channel memory architecture |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | Realtek ALC892 Codec 7.1-Channel High Definition Audio |
| DVI-D (s) | 1x DVI-D port, maximum resolution of 1920x1200@60Hz |
| HDMI | 1x HDMI 2.1 port, maximum resolution of 4096x2160 @60Hz |
| LAN Port (s) | 1x Realtek RTL8111H Gigabit LAN controller |
| Supported Storage | AMD A520 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
| USB (s) | AMD A520 Chipset 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1xTPM module connector 1x Clear CMOS jumper |
| Special | |
| Special Feature | RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
