Key highlights
- Form Factor: 8.9 in. x 7.4 in. (22.6 cm x 18.7 cm) m-ATX Form Factor
- Supported CPU: Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
- Chipset: AMD A320 Chipset
- PCI: 1 x PCIe 3.0 x16 slot Supports x16 speed with 1st, 2nd, and 3rd Gen AMD Ryzen processors Supports x8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors 1 x PCIe 2.0 x1 slots
- Max Shared Memory: GraphicssMaximum shared memory of 2048 MB
Description

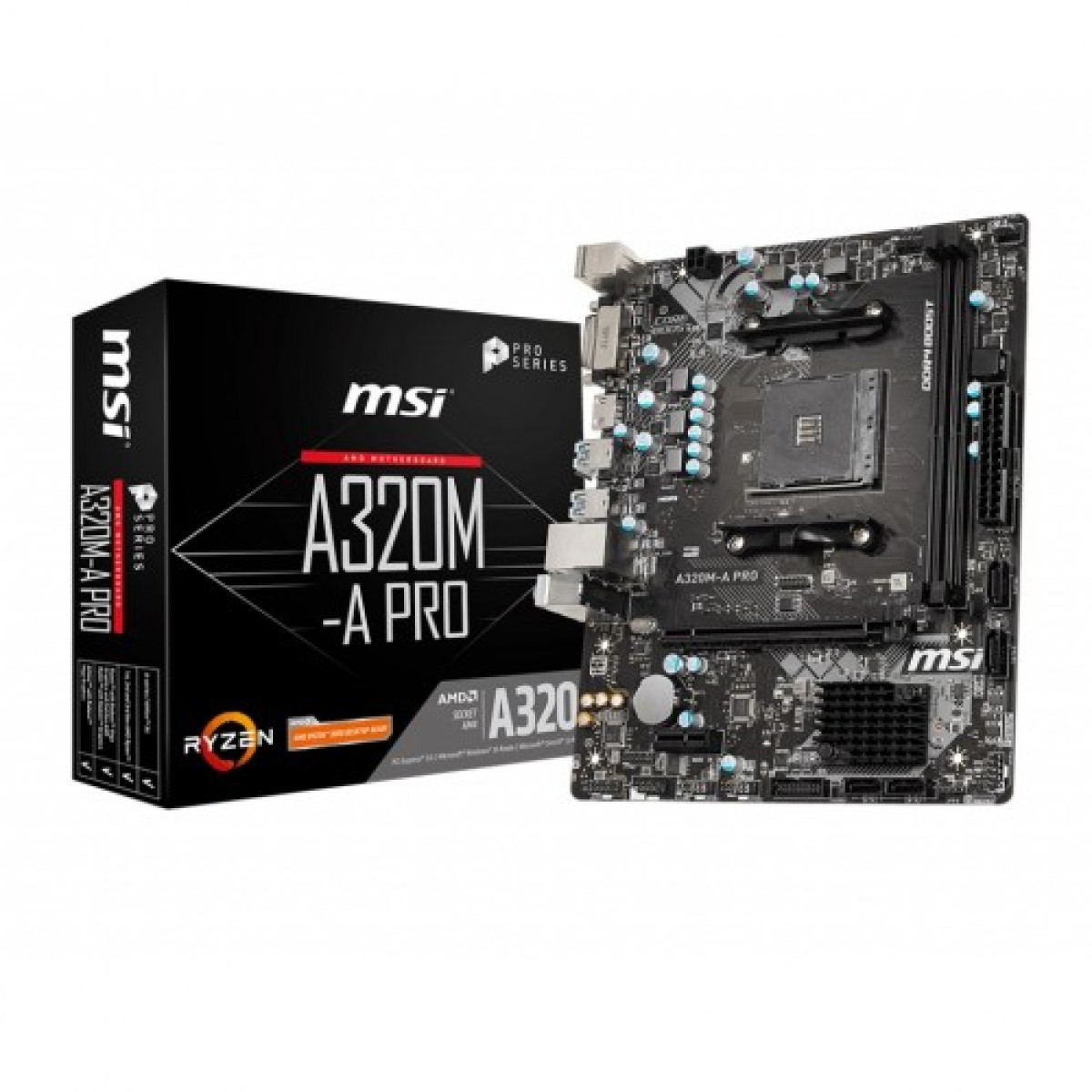

Reliable Performance with MSI A320M-A Pro Motherboard
Unleash Your PC's Potential with MSI A320M-A Pro
The MSI A320M-A Pro AMD Micro-ATX Motherboard is engineered to provide a reliable and high-performance foundation for your computing needs. Designed for AMD Ryzen processors, this motherboard offers exceptional compatibility, ensuring that you can build a powerful system tailored to your requirements. With support for Dual Channel DDR4 memory, you can enjoy faster data transfer rates and improved system performance. The motherboard features an efficient layout, with multiple fan headers and USB ports that enhance connectivity and cooling solutions.
Ideal for gamers, content creators, and everyday users, the MSI A320M-A Pro boasts a rich set of features, including HDMI and DVI outputs for diverse display options. Its robust build quality ensures durability, while the Click BIOS 5 provides an intuitive interface for easy overclocking and system tuning. Experience seamless multitasking and enhance your productivity with this versatile motherboard.
Affordable Micro-ATX Motherboard for AMD Processors
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | 8.9 in. x 7.4 in. (22.6 cm x 18.7 cm) m-ATX Form Factor |
| Supported CPU | Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4 |
| Chipset | AMD A320 Chipset |
| Expansion Slots | |
| PCI | 1 x PCIe 3.0 x16 slot Supports x16 speed with 1st, 2nd, and 3rd Gen AMD Ryzen processors Supports x8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors 1 x PCIe 2.0 x1 slots |
| Graphics Specifications | |
| Max Shared Memory | GraphicssMaximum shared memory of 2048 MB |
| Graphics | 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1 x HDMI port 1.4, supports a maximum resolution of 4096x2160@30Hz |
| Memory Specifications | |
| Maximum Size | 64GB |
| Slots | 2 x DDR4 memory slots |
| Supported Memory | upport 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ MHz |
| Type | Dual channel memory architecture |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | Realtek ALC892 Codec 7.1-Channel High Definition Audio |
| DVI-D (s) | 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz |
| HDMI | 1 x HDMI port 1.4, supports a maximum resolution of 4096x2160@30Hz |
| LAN Port (s) | 1 x Realtek 8111H Gigabit LAN controller |
| Supported Storage | AMD A320 Chipset 4 x SATA 6Gb/s ports Supports RAID 0, RAID 1 and RAID 10 |
| USB (s) | AMD A320 Chipset 6 x USB 3.2 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal connectors) 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal connectors |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 1 x Serial port connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
