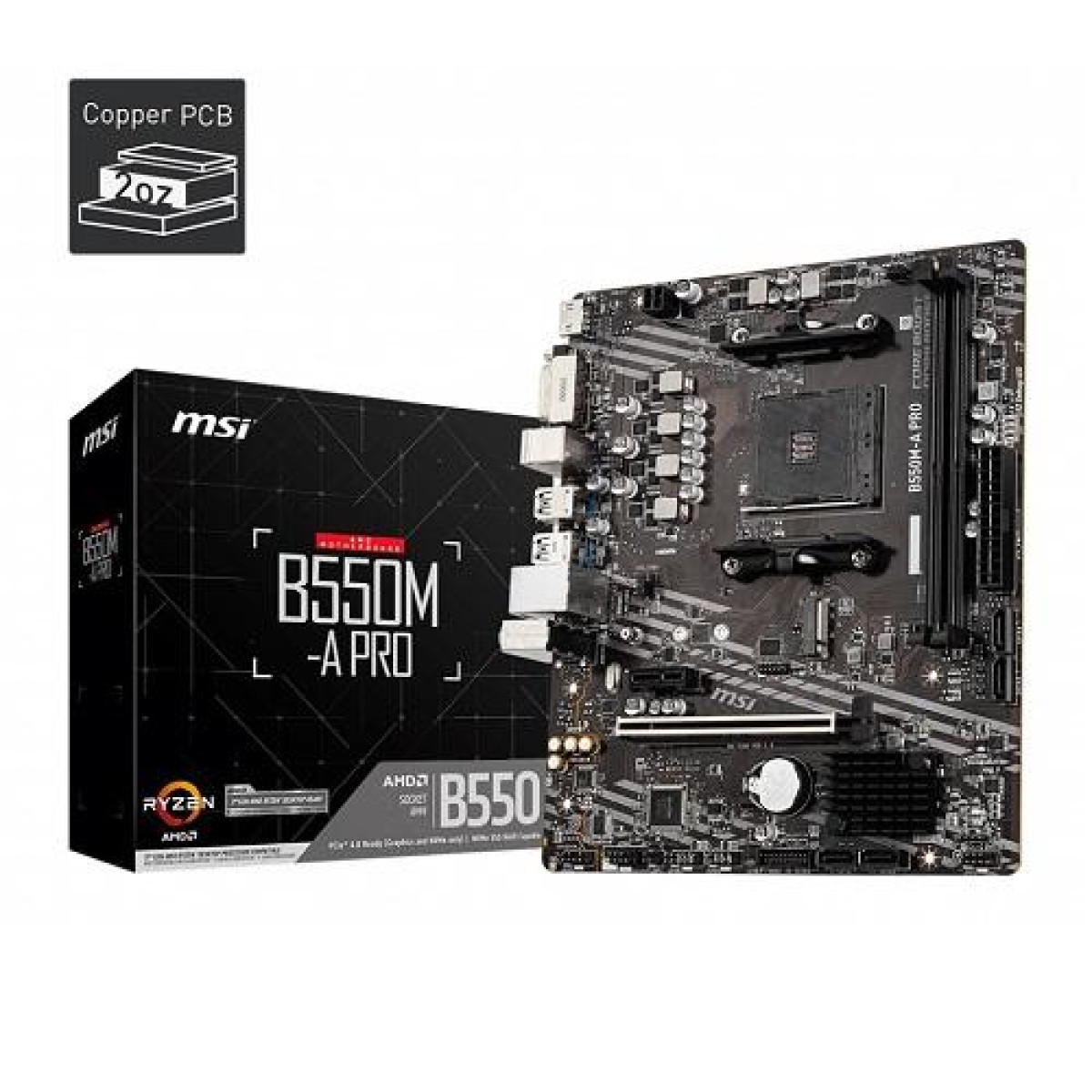

MSI B550M-A PRO DDR4 AMD AM4 Micro ATX Motherboard
Key highlights
- Supported CPU: Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
- Chipset: AMD B550 Chipset
- Slots: 1x PCIe 3.0 x1 slot 1 1x PCIe 4.0/3.0 x16 slot The supported specification depends on the installed processor.
- Audio: 7.1-Channel High Definition Audio
- M.2 Socket: 1 x M.2 Socket
Description
MSI B550M-A PRO DDR4 AMD AM4 Micro ATX Motherboard
The MSI B550M A PRO AM4 Micro ATX AMD Motherboard Supports AMD Ryzen 5000 3000 Series desktop processors not compatible with AMD Ryzen 5 3400G Ryzen 3 3200G and AMD Ryzen 4000 G Series desktop processors Supports DDR4 Memory up to 4600 OC MHz It has a premium layout and digital power design to support more cores and provide better performance Made with 2oz Thickened Copper PCB An enhanced PCB design improves heat dissipation and performance reliability For the superior sound quality it has studio-grade sound quality All new dragon center software which integrates all MSI exclusive tools with the user-friendly user interface.The MSI B550M-A PRO DDR4 AMD AM4 Micro ATX Motherboard is the perfect solution for computer users and students looking for a high-quality, high-performance motherboard at a great price. Designed for speed and reliability, this motherboard offers everything you need to build a powerful and efficient computer system.
The B550M-A PRO is equipped with the latest DDR4 memory technology, ensuring fast and seamless multitasking capabilities. Whether you're a student working on complex projects or a computer user who demands top-notch performance, this motherboard has you covered.
Featuring an AMD AM4 socket, this Micro ATX motherboard is compatible with a wide range of AMD processors, allowing you to choose the perfect CPU for your needs. The high-quality components used in the construction of this motherboard ensure long-lasting durability and reliability, so you can trust that your system will run smoothly for years to come.
With support for high-speed PCIe 4.0 graphics cards, the B550M-A PRO is ideal for gaming enthusiasts and creative professionals who demand the best graphics performance. Plus, the Micro ATX form factor makes this motherboard perfect for small form factor builds, saving you valuable space without sacrificing performance.
At Unix Network in Jashore, Bangladesh, we are proud to offer the MSI B550M-A PRO DDR4 AMD AM4 Micro ATX Motherboard to our customers. With its impressive features, top-notch quality, and high-speed performance, this motherboard is sure to meet all of your computing needs. Upgrade your system today and experience the power and reliability of the MSI B550M-A PRO.
MSI B550M-A PRO DDR4 AMD AM4 Micro ATX Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Supported CPU | Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors |
| Chipset | AMD B550 Chipset |
| Slots | 1x PCIe 3.0 x1 slot 1 1x PCIe 4.0/3.0 x16 slot The supported specification depends on the installed processor. |
| Audio | 7.1-Channel High Definition Audio |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 Socket |
| PCI | PCI-E X16 x 1 PCI-E (Gen4 / Gen3) |
| Graphics Specifications | |
| Max Shared Memory | 16 GB |
| Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz Available for the processor with integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Memory Specifications | |
| Maximum Memory | 64GB |
| Supported Memory | 2x DDR4 memory slots, support up to 64GB 1 Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Dual-channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper |
| LAN Port (s) | 1x Realtek RTL8111H Gigabit LAN |
| Supported Storage | AMD B550 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 4.0/ 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices The supported specification depends on the installed processor. Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| TPM (Trusted Platform Module ) | 1 x TPM module connector |
| USB (s) | AMD B550 Chipset 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| WARRANTY | |
| Manufacturing Warranty | 3 Years Warranty |
