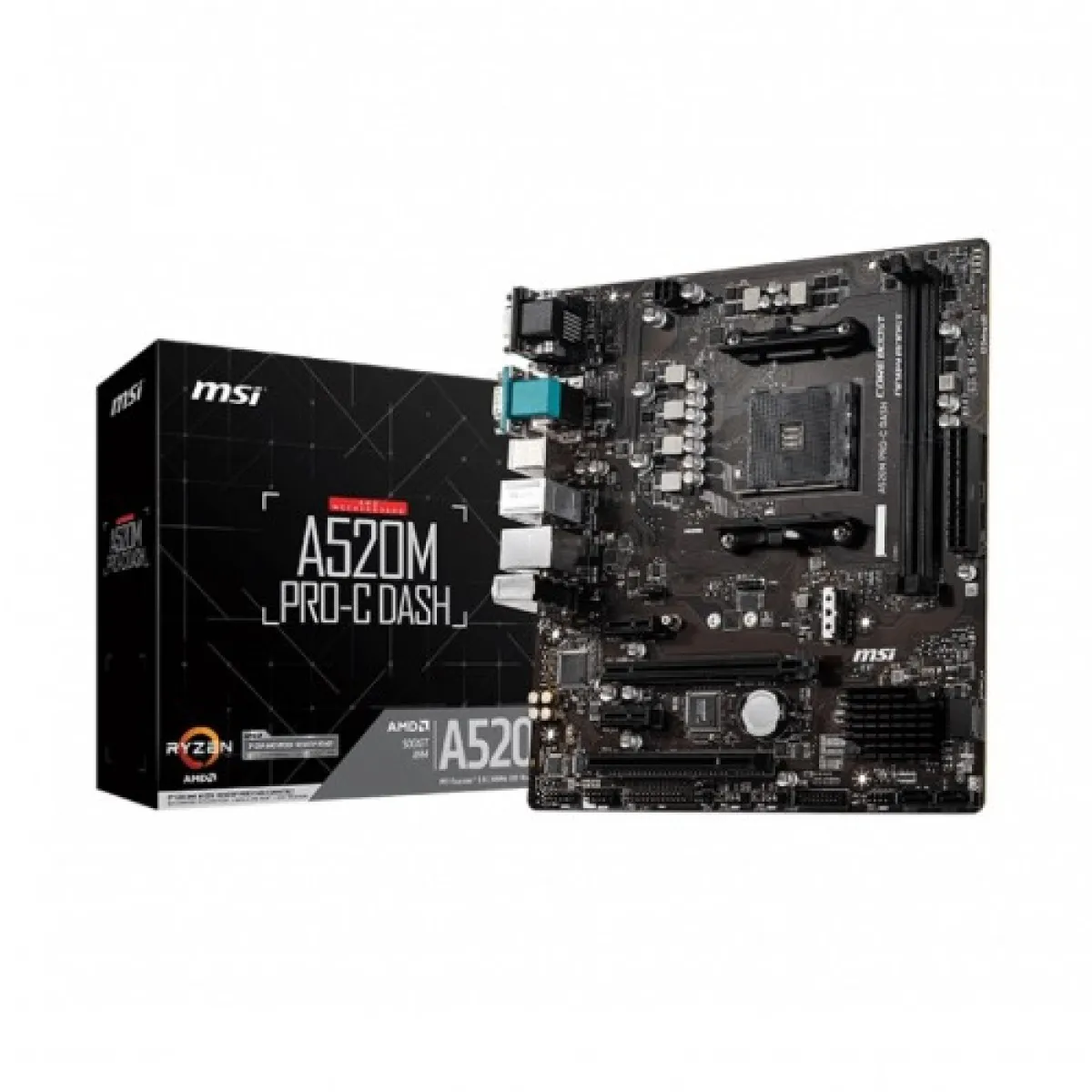

MSI A520M PRO-C DASH AMD AM4 Micro-ATX Motherboard showcasing its features and design

Buy MSI A520M PRO-C DASH AMD AM4 Micro-ATX Motherboard in Jashore

Brand: MSI
Product Code: A520M PROPRO-C DASH
Availability: Out Of Stock

৳0

Out Of Stock

Specification

BASIC INFORMATION
Form Factor	Micro-ATX Form Factor 9.6 in. x 8.7 in. (24.4 cm x 22.0 cm)
Graphics	1x VGA port, supports a maximum resolution of 2048x1280 @60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @60Hz Support for HDMI™ 1.4 version, HDCP 1.4 & 2.3
Supported CPU	Supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors
Chipset	AMD A520 Chipset
Audio	Realtek ALC892/ALC897 Codec 7.1-Channel High Definition Audio
Type	Dual-channel memory architecture
Expansion Slots
M.2 Socket	1x M.2 slot (From AMD processor, Key M)
PCI	1x PCIe 3.0 x16 slot (From AMD processor, PCI_E2) 2x PCIe 3.0 x1 slots(From chipset, PCI_E1 & PCI_E3) 1x PCI slot
Graphics Specifications
Max Shared Memory	16GB
Memory Specifications
Maximum Memory	64GB
PORTS, CONNECTORS & SLOTS
HDMI	1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @60Hz
Internal I/O Ports	1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slot (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Serial port connector 1x Parallel port connector 1x Clear CMOS jumper
LAN Port (s)	1x Realtek RTL8111EPV 1Gbps LAN controller
Supported Storage	AMD A520 Chipset: 4x SATA 6Gb/s ports 1x M.2 slot (From AMD processor, Key M) Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
TPM (Trusted Platform Module )	1x TPM module connector
USB (s)	AMD A520 Chipset: 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor: 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
WARRANTY
Manufacturing Warranty	03 Years Warranty

Description

Experience Unmatched Performance with MSI A520M PRO-C DASH

The MSI A520M PRO-C DASH AMD AM4 Micro-ATX Motherboard is designed to deliver exceptional performance and reliability for your computing needs. With its advanced features, this motherboard is perfect for both gamers and professionals in Bangladesh looking to build a powerful and efficient system. The AM4 socket supports the latest AMD Ryzen processors, ensuring seamless multitasking and high-speed processing.

Featuring DDR4 memory support with speeds of up to 4400 MHz, this motherboard allows for smooth and lag-free operation. The PCIe 4.0 slots provide lightning-fast data transfer rates, making it ideal for high-performance graphics cards and storage devices. Additionally, the multiple USB ports offer extensive connectivity options for peripherals and devices.

Built with MSI's signature quality, the A520M PRO-C DASH ensures durability and longevity. Its compact Micro-ATX form factor allows for easy installation in a variety of cases, making it a versatile choice for any setup. Whether you're into gaming, content creation, or everyday computing, this motherboard has the features you need to take your performance to the next level.
