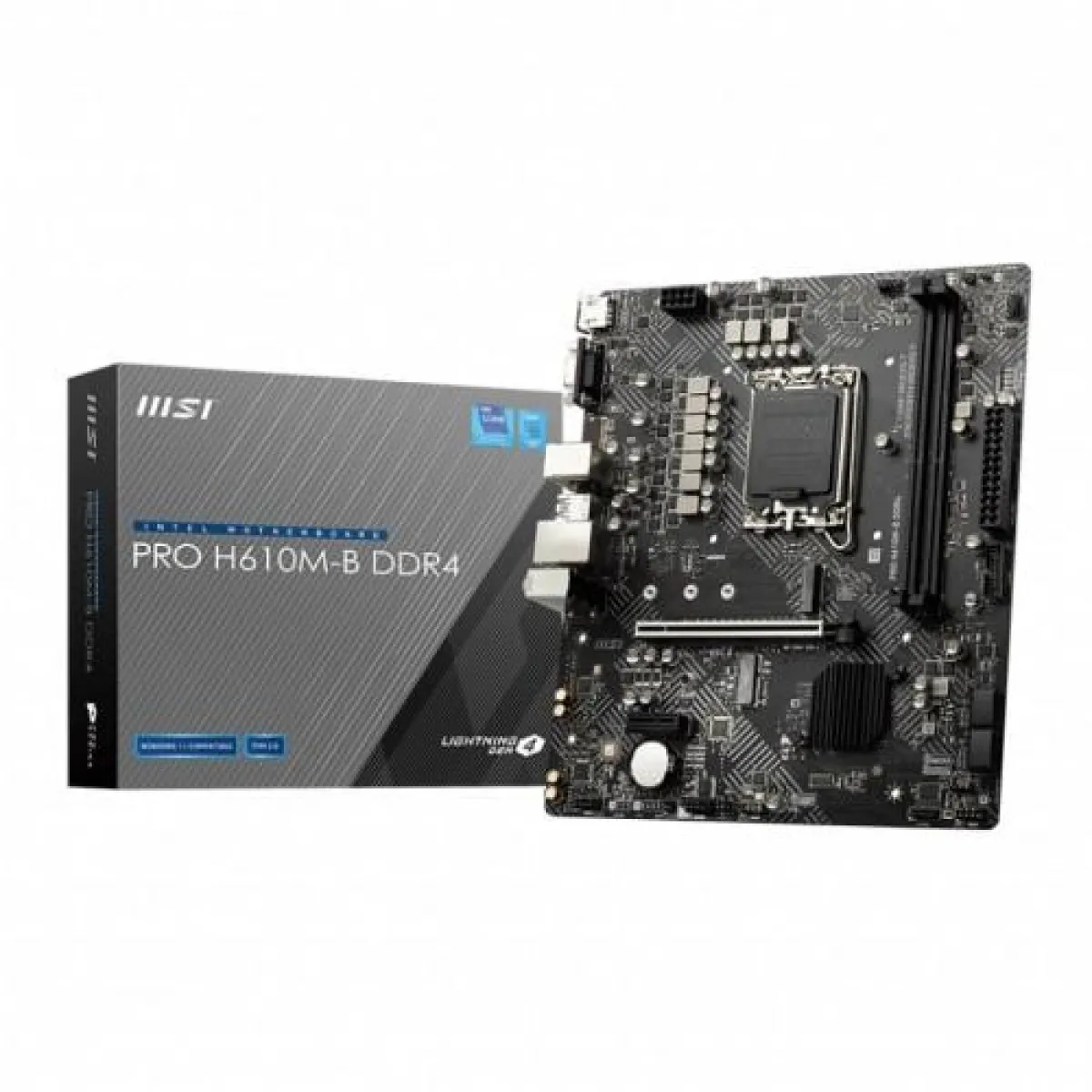

MSI PRO H610M-B DDR4 Micro-ATX Motherboard
- Brand: MSI
- Product Code: MSI PRO H610M-B DDR4 Micro-ATX Motherboard
- Availability: Out Of Stock
Specification
| BASIC INFORMATION | |
| Form Factor | M-ATX Form Factor 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm) |
| Supported CPU | Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package |
| Chipset | Intel H610 Chipset |
| Slots | 2x DDR4 memory slots |
| Audio | Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio |
| Expansion Slots | |
| PCI | 1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot Supports PCIe 3.0 x1 1x M.2 slot with E-key for PCIe WiFi module only (M2_WIFI1) |
| Graphics Specifications | |
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed. |
| Memory Specifications | |
| Maximum Memory | Support up to 64GB |
| Supported Memory | 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1x HDMI 2.1 |
| Internal I/O Ports | POWER CONNECTORS: 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector FAN CONNECTORS: 1x 4-pin CPU fan connector 1x 4-pin system fan connector SYSTEM CONNECTORS: 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector JUMPERS: 1x Clear CMOS jumper LED FEATURES: 4x EZ Debug LED |
| LAN Port (s) | 1x Intel I219V 1Gbps LAN controller |
| Supported Storage | 1x M.2 slot (Key M, from chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core processors |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| USB (s) | Intel H610 Chipset: 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
Description
The MSI PRO H610M-B DDR4 Micro-ATX Motherboard is a budget-friendly and reliable motherboard designed for users who want to build entry-level or mid-range systems without compromising on essential features. Built on the Intel H610 chipset, this motherboard supports 12th Gen Intel Core processors, offering excellent performance for office work, home use, and basic gaming systems. Its micro-ATX form factor makes it a perfect choice for those looking to build compact PCs or small-form-factor systems, without sacrificing connectivity or storage options.
The MSI PRO H610M-B DDR4 offers solid support for DDR4 memory, with speeds of up to 3200 MHz, making it an excellent choice for users who need a stable, cost-effective solution for multitasking or light productivity tasks. The motherboard also supports NVMe M.2 storage and SATA III SSDs for fast storage, while its USB 3.2 Gen 1 ports provide fast data transfer capabilities. The HDMI port and PCIe 4.0 x16 slot add flexibility for future upgrades, allowing users to customize their system based on their needs.
With MSI’s PRO series branding, this motherboard is optimized for stability and reliability, making it a strong choice for users looking for a solid foundation in a compact build.
People Also Ask (PAA) Section
1. What are the key features of the MSI PRO H610M-B DDR4 Micro-ATX Motherboard?
The MSI PRO H610M-B DDR4 offers 12th Gen Intel CPU support, DDR4 memory up to 3200MHz, NVMe M.2 SSD support, USB 3.2 Gen 1 ports, HDMI output, and a PCIe 4.0 x16 slot. Its micro-ATX form factor allows for compact builds, making it ideal for entry-level PCs, home office systems, or budget gaming rigs.
2. Can I use an Intel 12th Gen processor with the MSI PRO H610M-B DDR4?
Yes, the MSI PRO H610M-B DDR4 supports Intel 12th Gen Core processors. This includes a wide range of CPUs, from Intel i3 to i7 models, giving you flexibility in terms of performance for both basic and more demanding tasks.
3. Does the MSI PRO H610M-B DDR4 support overclocking?
No, the MSI PRO H610M-B DDR4 does not support overclocking. It is built for stable, everyday computing, focusing on reliable performance for entry-level builds and business applications. Overclocking is typically supported by higher-end motherboards with Z-series chipsets.
4. Is the MSI PRO H610M-B DDR4 a good option for gaming?
While the MSI PRO H610M-B DDR4 is not specifically designed for high-end gaming, it can handle casual gaming with the appropriate entry-level graphics card. It supports a PCIe 4.0 x16 slot, which is compatible with most mid-range GPUs, allowing you to build a budget gaming PC.
5. How many storage devices can I install on the MSI PRO H610M-B DDR4?
The MSI PRO H610M-B DDR4 supports one NVMe M.2 SSD and up to four SATA III storage devices. This offers plenty of flexibility for users who need both fast storage and large capacity drives for games, videos, or work files.
6. What is the maximum RAM capacity supported by the MSI PRO H610M-B DDR4?
The MSI PRO H610M-B DDR4 can support up to 64GB of DDR4 RAM across two DIMM slots. This is ideal for light to moderate multitasking and gives you the flexibility to expand your system’s memory for more demanding applications in the future.
Use Cases and Benefits
For Office and Home Use: The MSI PRO H610M-B DDR4 is a great option for home office systems or workstations. With support for Intel’s 12th Gen CPUs, it provides reliable performance for everyday tasks like word processing, email, web browsing, and light multitasking. The fast storage options (NVMe M.2 SSD) ensure quick boot times and smooth performance.
For Budget Gaming Systems: If you're looking to build a budget gaming PC, the MSI PRO H610M-B DDR4 can support entry-level gaming with a compatible GPU. It provides a PCIe 4.0 x16 slot for a dedicated graphics card and offers enough performance for casual gaming and older titles at moderate settings.
For Compact PC Builds: With its micro-ATX form factor, the MSI PRO H610M-B DDR4 is ideal for those looking to build a compact and space-efficient system. It fits into smaller cases, making it suitable for users who want a small desktop that still offers expandability for storage and future upgrades.
For Entry-Level PC Builders: The MSI PRO H610M-B DDR4 offers a cost-effective solution for first-time builders. With its user-friendly design and reliable performance, it’s an excellent choice for building an affordable yet functional PC that meets basic computing needs.
Competitive Advantages
The MSI PRO H610M-B DDR4 stands out in the budget motherboard category with its solid feature set, including Intel 12th Gen CPU support, fast storage options (NVMe M.2), and PCIe 4.0 support for future-proofing. While some competitors in the same price range may lack support for 12th Gen Intel CPUs or offer slower storage solutions, the MSI PRO H610M-B delivers a great balance of performance and expandability for entry-level builds and budget-friendly systems.
The MSI PRO H610M-B DDR4 Micro-ATX Motherboard is a high-quality, reliable motherboard designed for users seeking a balance of performance and affordability. It supports 10th generation Intel Core processors, providing powerful computing capabilities for both work and play.
Featuring DDR4 memory support, this Micro-ATX motherboard allows for faster data transfer speeds and smoother multitasking performance. It also includes four DIMM slots, supporting up to 64GB of RAM for enhanced system responsiveness.
Equipped with PCIe 3.0 x16 slot, PCIe 3.0 x1 slots, and M.2 slot, this motherboard offers versatile expansion options for adding additional components such as graphics cards, sound cards, and SSDs. Additionally, it includes USB 3.2 Gen 1 and USB 2.0 ports for connecting a wide range of peripherals.
The MSI PRO H610M-B motherboard is built with high-quality components for durability and stability. It features a solid power delivery system, ensuring reliable performance even under heavy workloads. The motherboard also includes comprehensive cooling solutions to prevent overheating and maintain optimal operating temperatures.
Overall, the MSI PRO H610M-B DDR4 Micro-ATX Motherboard is an excellent choice for users looking for a dependable motherboard with solid performance and expandability options. It is suitable for a wide range of computing tasks, from casual browsing to gaming and content creation.
