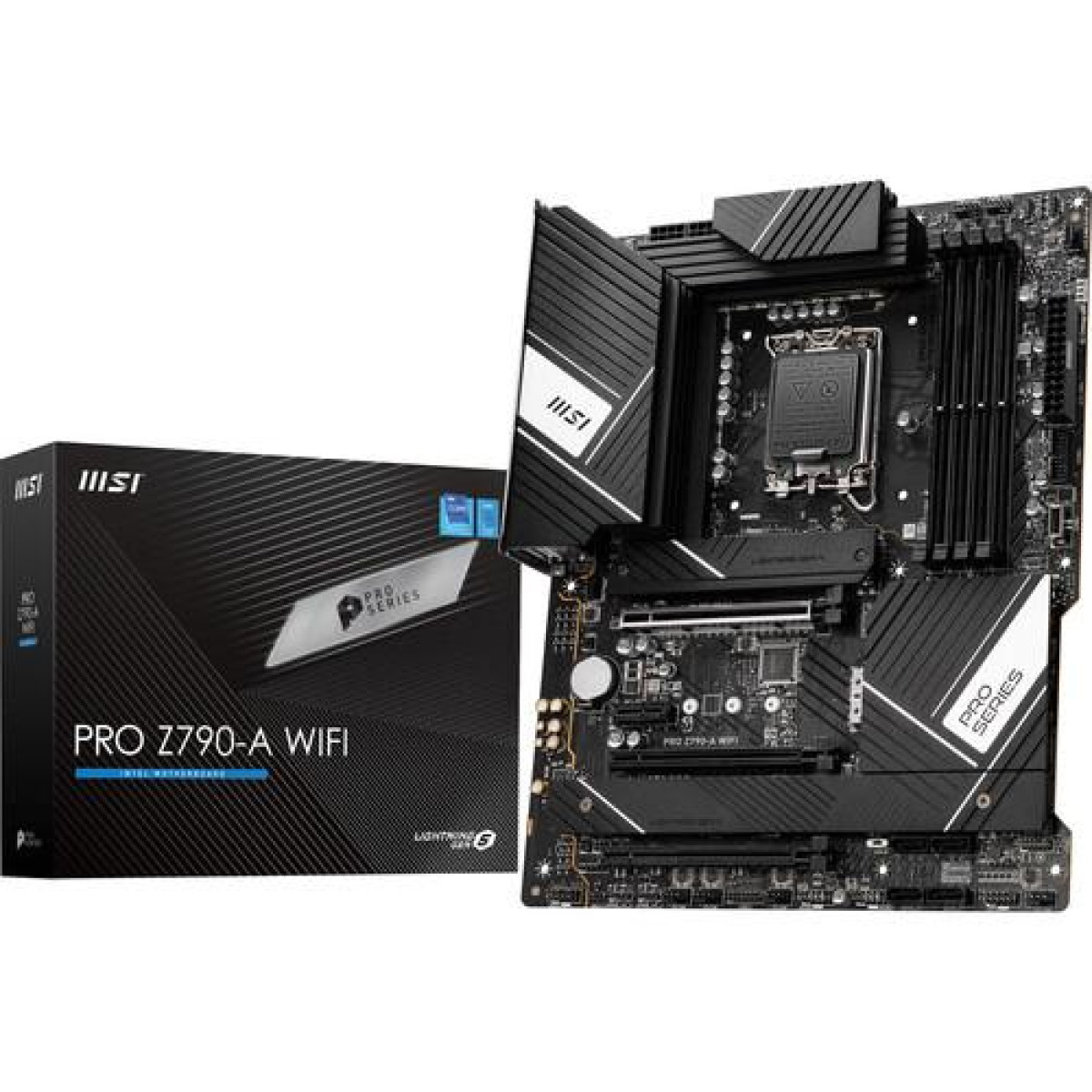

MSI PRO Z790-A WIFI DDR5 ATX Motherboard
- Brand: MSI
- Product Code: MSI PRO Z790-A WIFI DDR5 ATX Motherboard
- Availability: Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | ATX 243.84mmx304.8mm |
|---|---|
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA1700 |
| Chipset | INTEL Z790 |
| Slots | 4 x DIMM |
| Audio | 1x Front Audio (JAUD) |
| Expansion Slots | |
| M.2 Socket | 4x M.2 slots |
| PCI | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 PCIe 3.0 supports up to x1 (From Chipset) |
| Graphics Specifications | |
| Graphics | 1x HDMI 1x DisplayPort Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, the maximum resolution of 4K 60Hz |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | 4x DDR4, Maximum Memory Capacity 128GB Max. overclocking frequency: 1DPC 1R Max speed up to 7200+ MHz 1DPC 2R Max speed up to 6600+ MHz 2DPC 1R Max speed up to 6400+ MHz 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort 1.4 |
| HDMI | 1x HDMI 2.1 |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
| LAN Port (s) | Intel 2.5Gbps LAN |
| Supported Storage | 4x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G port |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) = |
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
Description
The MSI PRO Z790-A WIFI DDR5 ATX Motherboard is an advanced and feature-rich motherboard designed to provide high-performance and future-proofing for gaming enthusiasts, content creators, and power users. Built with the Intel Z790 chipset, this motherboard is optimized for the latest 12th and 13th generation Intel Core processors (LGA 1700 socket) and supports the cutting-edge DDR5 memory technology for faster data transfer and improved system responsiveness. With support for PCIe 5.0, it ensures compatibility with the **latest high-speed graphics cards and storage devices, ensuring top-tier performance for demanding applications.
One of the standout features of the MSI PRO Z790-A WIFI is its built-in Wi-Fi 6 support, which provides high-speed wireless connectivity for smooth online gaming, content streaming, and file transfers. The advanced power delivery system and premium components provide a stable and robust foundation for building high-performance systems. Whether you're assembling a gaming rig, video editing workstation, or work-from-home setup, this motherboard ensures smooth performance across a variety of workloads and future-proofing for the latest technologies.
People Also Ask (PAA) Section
1. What is the MSI PRO Z790-A WIFI DDR5 ATX motherboard compatible with?
The MSI PRO Z790-A WIFI DDR5 motherboard is compatible with 12th and 13th generation Intel Core processors (LGA 1700 socket). It supports DDR5 memory, offering faster speeds and greater bandwidth compared to DDR4. This motherboard also features PCIe 5.0 support, ensuring compatibility with the latest graphics cards, storage devices, and other expansion cards. It’s an excellent choice for users looking for high-performance, future-proofing, and advanced features.
2. What are the key features of the MSI PRO Z790-A WIFI DDR5 motherboard?
The key features of the MSI PRO Z790-A WIFI DDR5 motherboard include:
- Support for 12th and 13th Gen Intel Core processors (LGA 1700 socket).
- DDR5 memory support, with speeds up to 6400MHz and beyond.
- PCIe 5.0 support for faster GPU and storage performance.
- Wi-Fi 6 for high-speed wireless connectivity.
- Enhanced power delivery for stability during heavy workloads.
- Premium components and robust cooling solutions for reliable performance.
3. Does the MSI PRO Z790-A WIFI support DDR4 memory?
No, the MSI PRO Z790-A WIFI motherboard is designed to support DDR5 memory only. DDR5 offers higher speeds and greater bandwidth compared to DDR4, making it an excellent choice for users who want to maximize the performance of next-gen applications and games. If you need support for DDR4, you would need to choose a different motherboard model.
4. What are the cooling options for the MSI PRO Z790-A WIFI motherboard?
The MSI PRO Z790-A WIFI motherboard comes with a range of cooling options to ensure optimal performance under heavy loads. It includes multiple fan headers for both case fans and CPU coolers, enabling users to customize their cooling setup based on their needs. The motherboard also features M.2 Shield Frozr technology, which helps cool M.2 storage devices during intensive use. Its premium build quality ensures efficient heat dissipation to maintain system stability even during demanding tasks.
5. Does the MSI PRO Z790-A WIFI motherboard come with built-in Wi-Fi?
Yes, the MSI PRO Z790-A WIFI motherboard includes built-in Wi-Fi 6 support. This feature provides faster, more reliable wireless connectivity, making it ideal for users who need fast internet speeds for online gaming, streaming, or file transfers. Wi-Fi 6 ensures higher bandwidth, lower latency, and improved network efficiency compared to previous Wi-Fi standards, ensuring a seamless and stable online experience.
Use Cases and Benefits
For Gamers: The MSI PRO Z790-A WIFI DDR5 motherboard is an excellent choice for gamers who want cutting-edge technology at an affordable price. With PCIe 5.0 and DDR5 memory support, the motherboard ensures your gaming system is equipped to handle next-gen graphics cards and provide smooth gameplay at high settings. The inclusion of Wi-Fi 6 also ensures seamless online gaming with low latency and high-speed connectivity.
For Content Creators: For video editors, graphic designers, or 3D animators, the MSI PRO Z790-A WIFI DDR5 offers a powerful and stable platform for demanding workloads. The motherboard’s support for DDR5 memory and PCIe 5.0 provides the bandwidth needed to work with large video files, run intensive rendering tasks, and handle multitasking without bottlenecks. Its robust cooling solutions also ensure that the system remains stable under heavy use.
For Professional Workstations: If you’re building a workstation for software development, data science, or machine learning, the MSI PRO Z790-A WIFI motherboard provides the power and stability you need. With its enhanced power delivery and Wi-Fi 6, you’ll be able to work efficiently without worrying about performance issues. The motherboard's future-proofing capabilities make it an excellent choice for long-term use in a professional environment.
Competitive Advantages
The MSI PRO Z790-A WIFI DDR5 motherboard stands out in its class due to its support for DDR5 memory, offering superior performance over DDR4-based motherboards. The inclusion of PCIe 5.0 ensures compatibility with the latest GPUs and storage solutions, making it future-proof for next-gen components. Wi-Fi 6 further enhances the motherboard’s appeal by providing faster wireless connectivity, an essential feature for users who prioritize high-speed internet. This motherboard offers excellent value for money compared to other Z790 boards with DDR5 support, making it a solid choice for those building a high-performance system.
The MSI PRO Z790-A WIFI DDR5 ATX Motherboard is a high-performance motherboard designed for gamers and PC enthusiasts. Featuring support for the latest DDR5 memory technology, this motherboard provides ultra-fast data transfer speeds for seamless gaming and multitasking.
Equipped with built-in WiFi connectivity, users can easily connect to their network without the need for additional adapters. The ATX form factor ensures compatibility with a wide range of PC cases, while the robust build quality ensures long-lasting durability.
Specifications:
- Supports DDR5 memory technology for faster data transfer speeds
- Built-in WiFi connectivity for seamless network access
- ATX form factor for compatibility with a wide range of PC cases
- Durable construction for long-lasting performance
- Designed for gamers and PC enthusiasts seeking high performance.
