Key highlights
- Form Factor: mATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
- Graphics: 1x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @60Hz Support for HDMI 1.4 version, HDCP 1.4 & 2.3 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1 x VGA port, supporting a maximum resolution of 2048x1280 @60Hz
- Supported CPU: Supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors
- Chipset: AMD A520 Chipset
- Audio: Realtek ALC897 Codec 7.1-Channel High Definition Audio
Description
Get the Best Deals on MSI A520M Motherboard Online

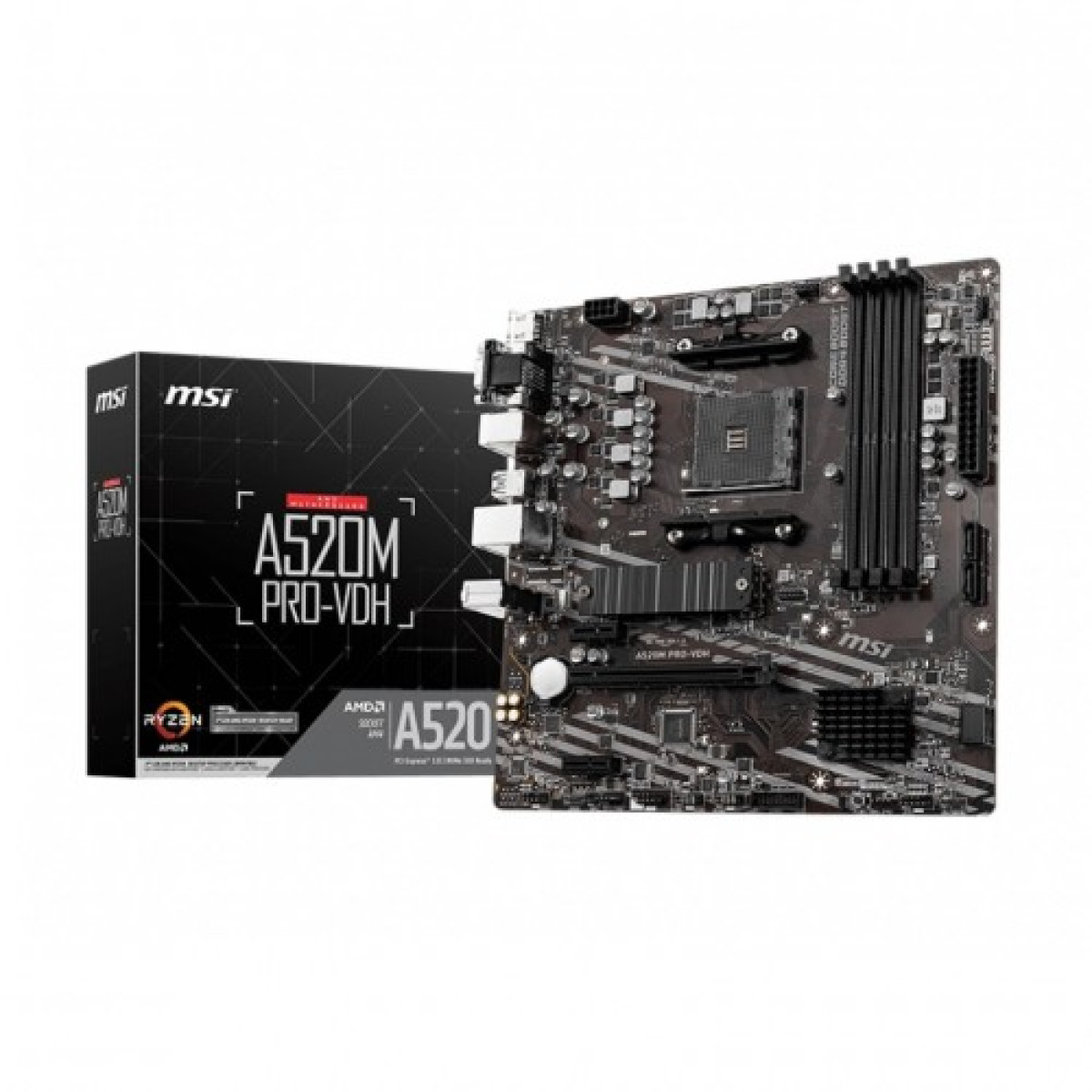

Empower Your Build with the MSI A520M PRO-VDH Motherboard
The MSI A520M PRO-VDH is a micro-ATX motherboard designed for AMD AM4 processors, making it an excellent choice for those looking to build a powerful yet budget-friendly PC. With its robust features and thoughtful design, this motherboard caters to both gamers and professionals seeking reliability and performance.
Equipped with DDR4 memory support up to 3200MHz, you can expect faster load times and smoother multitasking. The inclusion of PCIe 3.0 slots allows for future upgrades, ensuring your system remains competitive. Additionally, the USB 3.2 Gen 1 ports provide high-speed connectivity for peripherals, enhancing your overall user experience.
One of the standout features is the Lightning USB 3.2 technology, which offers faster data transfer rates. The motherboard also features a Multi-GPU setup support, making it ideal for users aiming to enhance their gaming or graphic design capabilities.
Built with durability in mind, the MSI A520M PRO-VDH includes military-grade components and a reinforced PCB, ensuring longevity and reliability. Whether you are a gamer, content creator, or just need a solid workstation, this motherboard is tailored to meet your needs.
Affordable AMD AM4 Motherboard for Your PC Build
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | mATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Graphics | 1x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @60Hz Support for HDMI 1.4 version, HDCP 1.4 & 2.3 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1 x VGA port, supporting a maximum resolution of 2048x1280 @60Hz |
| Supported CPU | Supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors |
| Chipset | AMD A520 Chipset |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Type | Dual-channel memory architecture |
| Expansion Slots | |
| M.2 Socket | 1x M.2 slot (Key M) (from AMD Processor) |
| PCI | 2x PCIe 3.0 x16 slots 1x PCIe 3.0 x1 slot |
| Graphics Specifications | |
| Max Shared Memory | 16GB |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Slots | 4x DDR4 memory slots |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHz 1DPC 2R max speed 3866 MHz Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz |
| HDMI | 1x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @60Hz |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x Serial port connector 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 2x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x Clear CMOS jumper 1x Flash BIOS button |
| LAN Port (s) | 1x Realtek RTL8111H 1Gbps LAN controller |
| Supported Storage | AMD A520 Chipset: 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.01 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| USB (s) | AMD A520 Chipset: 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors AMD Processor: 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
