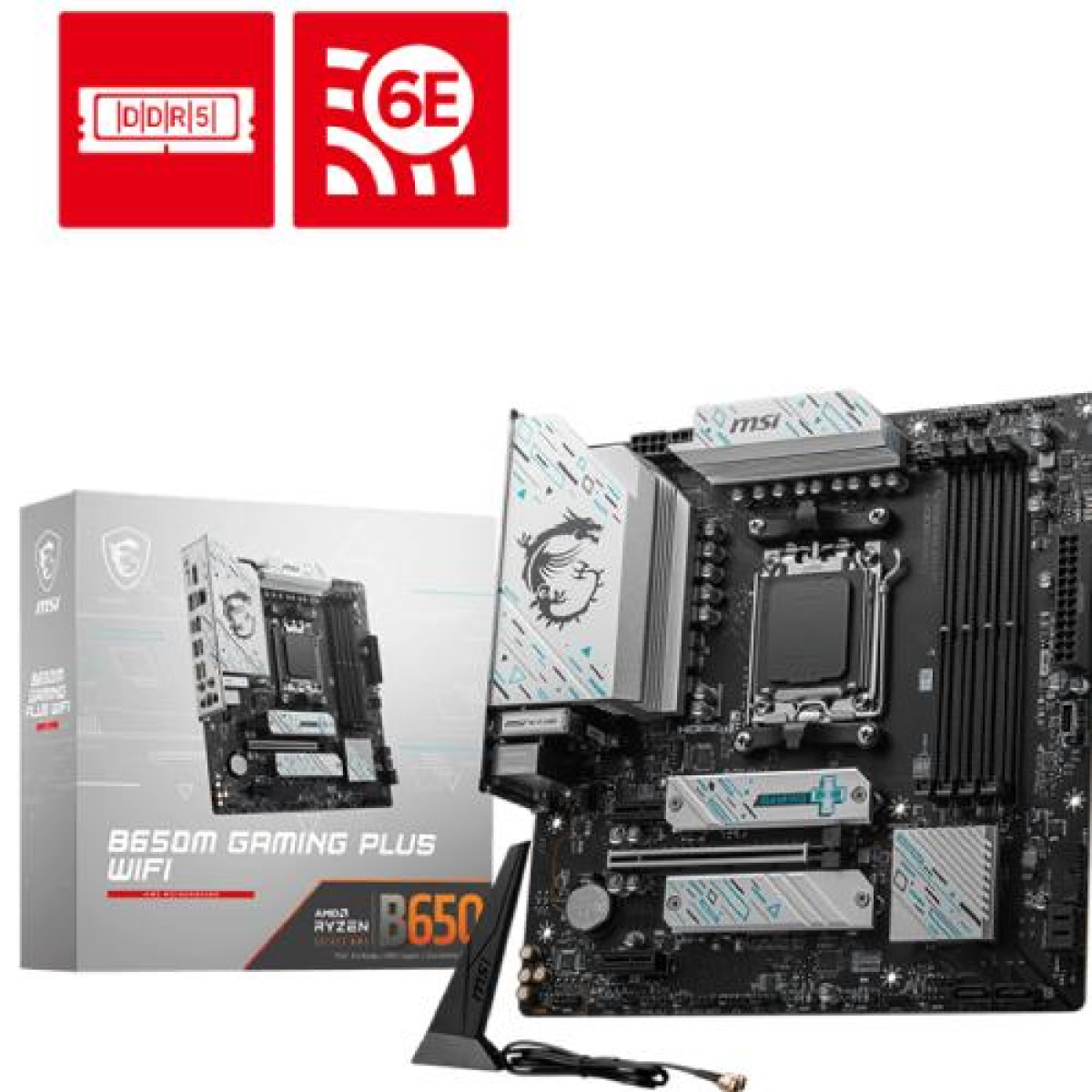

MSI B650M GAMING PLUS WIFI AM5 Motherboard Price in BD

Specification

BASIC INFORMATION
Form Factor	mATX 243.84mmx243.84mm
Supported CPU	Supports AMD Ryzen 8000/ 7000 Series Desktop Processors Socket AM5
Chipset	AMD B650
Slots	4x UDIMM
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI	1x PCI-E x16 slot • Supports x16 (For Ryzen 7000 Series processors) • Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors) • Supports x4 (For Ryzen 5 8500G processor) 2x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Graphics Specifications
Graphics	Support HDMI 2.1, maximum resolution of 4K 60Hz Support DP 1.4, the maximum resolution of 4K 60Hz
Memory Specifications
Maximum Memory	256GB
Supported Memory	Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™ Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz
Type	DDR5
PORTS, CONNECTORS & SLOTS
Display Port (s)	1x DisplayPort
HDMI	1x HDMI
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
LAN Port (s)	Realtek RTL8125BG 2.5Gbps LAN
Supported Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G • M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
USB (s)	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front)
Wireless Communication module	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3
WARRANTY
Manufacturing Warranty	3 Years

Description

Introduction (150-200 words)

The MSI B650M GAMING PLUS WIFI AM5 Motherboard is a feature-rich, high-performance motherboard designed for gamers, content creators, and PC enthusiasts who want to build a powerful and future-proof system with AMD’s latest AM5 platform. Supporting AMD Ryzen 7000 series processors, this motherboard provides exceptional performance, stability, and expandability, making it ideal for high-demand applications such as gaming, video editing, and 3D rendering. With integrated Wi-Fi 6 for fast and reliable wireless connectivity, PCIe 4.0 support for ultra-fast storage and graphics, and DDR5 memory compatibility, the B650M GAMING PLUS WIFI motherboard is built to meet the needs of modern users. Its micro ATX form factor strikes a perfect balance between compactness and expandability, fitting into smaller cases without compromising on performance. The board also features premium capacitors and robust cooling solutions, ensuring long-lasting reliability even under heavy load. Whether you're building a high-end gaming PC or a productivity machine, the MSI B650M GAMING PLUS WIFI offers everything you need for a top-tier system.

People Also Ask (PAA) Section (300-400 words)

1. What CPUs are compatible with the MSI B650M GAMING PLUS WIFI motherboard? The MSI B650M GAMING PLUS WIFI motherboard supports AMD Ryzen 7000 series processors with the AM5 socket. This includes the latest Ryzen 9, Ryzen 7, Ryzen 5, and Ryzen 3 chips, offering users a wide range of options for different performance levels. Whether you're aiming for a budget-friendly build or a high-end gaming rig, the B650M GAMING PLUS WIFI provides excellent support for these cutting-edge processors.

2. Does the MSI B650M GAMING PLUS WIFI support PCIe Gen 4.0? Yes, the MSI B650M GAMING PLUS WIFI motherboard supports PCIe 4.0, providing faster speeds for both storage drives and graphics cards. This means faster read/write speeds for NVMe SSDs and better performance with the latest PCIe 4.0-enabled GPUs. With PCIe 4.0 support, users can maximize their system’s capabilities for demanding applications such as gaming, video editing, and rendering.

3. Can I use DDR4 memory with the MSI B650M GAMING PLUS WIFI motherboard? No, the MSI B650M GAMING PLUS WIFI motherboard only supports DDR5 memory. It is designed to work with DDR5 RAM, providing higher bandwidth and faster speeds compared to DDR4, which is ideal for modern gaming and productivity workloads. The board supports up to 128GB of DDR5 memory at speeds of up to 6400MHz (OC), making it future-proof and able to handle the most demanding tasks.

4. Does the MSI B650M GAMING PLUS WIFI have Wi-Fi support? Yes, the MSI B650M GAMING PLUS WIFI motherboard comes with integrated Wi-Fi 6 (802.11ax), ensuring fast, stable, and low-latency wireless connectivity. Whether you're streaming, gaming online, or working remotely, Wi-Fi 6 provides enhanced speeds and more reliable connections compared to previous generations, making it an excellent choice for those who prefer wireless setups.

5. What are the storage options available on the MSI B650M GAMING PLUS WIFI motherboard? The MSI B650M GAMING PLUS WIFI motherboard offers a variety of storage options, including two M.2 slots (one of which supports PCIe 4.0 for ultra-fast NVMe SSDs) and four SATA III ports for traditional hard drives and SSDs. This allows for flexible storage configurations, whether you need high-speed storage for games and applications or larger drives for data storage.

Use Cases and Benefits (200-300 words)

For Gamers: The MSI B650M GAMING PLUS WIFI AM5 motherboard is an excellent choice for gamers looking to build a next-gen gaming rig. It supports PCIe 4.0 for fast SSDs and powerful GPUs, ensuring smooth gameplay and quick load times. The DDR5 memory support provides additional bandwidth, allowing for faster processing and multitasking in modern games. The motherboard also includes Wi-Fi 6, which offers low-latency, high-speed wireless connections, ideal for online gaming without interruptions or delays.

For Content Creators and Professionals: Content creators, including video editors and 3D artists, will appreciate the MSI B650M GAMING PLUS WIFI's robust performance for demanding tasks. The motherboard's PCIe 4.0 slots allow for high-speed storage and the latest GPU technology, while DDR5 RAM support ensures smooth multitasking and quick rendering times. With its Wi-Fi 6 connectivity, content creators can also upload large files or stream content without worrying about slow network speeds.

For DIY Builders and Enthusiasts: The micro ATX form factor of the MSI B650M GAMING PLUS WIFI is perfect for those looking to build a compact yet powerful PC. Whether you’re building your first PC or upgrading your existing system, the board offers plenty of expansion slots and connectivity options, including multiple USB ports, PCIe slots, and M.2 storage options. The ability to support DDR5 memory ensures that your build will be future-proof and capable of handling next-gen applications and games.

Competitive Advantages (100-150 words)

The MSI B650M GAMING PLUS WIFI AM5 motherboard offers several advantages over competitors in its price range. First, it features PCIe 4.0 support, ensuring future-proofing with fast data transfer speeds, ideal for gaming and content creation. Additionally, the motherboard supports DDR5 RAM, providing faster speeds and higher bandwidth than the DDR4-compatible motherboards found in similar products. The integrated Wi-Fi 6 is another standout feature, offering enhanced wireless performance for smooth gaming and content sharing. Combined with its micro ATX form factor, this motherboard strikes an excellent balance between performance, space efficiency, and expandability. Its overall value makes it one of the best options for building a high-performance yet budget-conscious system.

Introducing the MSI B650M GAMING PLUS WIFI AM5 Motherboard, the ultimate choice for avid gamers looking to enhance their gaming experience. This motherboard supports the latest AM5 processors, allowing for unparalleled performance and efficiency.

Equipped with built-in WiFi capabilities, you can now enjoy seamless online gameplay without the hassle of messy cables. The high-quality components ensure stable power delivery, reducing the risk of system crashes and ensuring a smooth gaming experience.

The MSI B650M GAMING PLUS WIFI AM5 Motherboard features an ATX form factor, making it suitable for a wide range of gaming PC builds. It also boasts multiple PCIe slots for expandability, allowing you to upgrade your system with ease.

With support for RGB lighting and MSI Mystic Light software, you can customise the look of your gaming rig to suit your preferences. Additionally, the motherboard comes with MSI Audio Boost technology, delivering crystal clear audio for immersive gaming sessions.

Overall, the MSI B650M GAMING PLUS WIFI AM5 Motherboard is a top-of-the-line choice for gamers who demand the best performance and features from their gaming rig. Upgrade your setup today and take your gaming experience to the next level.

Introducing the MSI B650M GAMING PLUS WIFI AM5 Motherboard, the perfect choice for gamers and PC enthusiasts looking to upgrade their system. This high-performance motherboard supports AMD AM5 processors, providing you with lightning-fast processing power for all your gaming and multitasking needs.

Equipped with built-in WiFi capabilities, you can enjoy seamless connectivity without the need for additional adapters. The MSI B650M GAMING PLUS also features dual DDR4 memory slots, allowing you to maximise your system's performance by adding up to 128GB of RAM.

Featuring a sleek black design with red accents, this motherboard not only looks great but also offers exceptional durability and reliability. With a range of connectivity options including USB 3.2 ports, HDMI, and LAN, you can easily connect all your peripherals and devices with ease.

Upgrade your gaming experience with the MSI B650M GAMING PLUS WIFI AM5 Motherboard and unleash the full potential of your system.

The MSI B650M GAMING PLUS WIFI AM5 Motherboard is a high-performance motherboard designed for gaming enthusiasts. This motherboard features an AM5 socket, perfect for the latest AMD processors, allowing for seamless performance and increased processing power. With integrated WiFi functionality, you can easily connect to the internet without the need for additional adapters.

Equipped with advanced gaming features, such as PCIe 4.0 support and multiple M.2 slots for fast storage, this motherboard ensures a smooth and responsive gaming experience. The MSI B650M GAMING PLUS WIFI also boasts RGB lighting for a stylish and customisable look to match your gaming setup.

Overall, this motherboard is the perfect choice for gamers looking to build a powerful and reliable gaming rig.
