MSI MPG Z790I EDGE WIFI Mini-ITX Motherboard Features

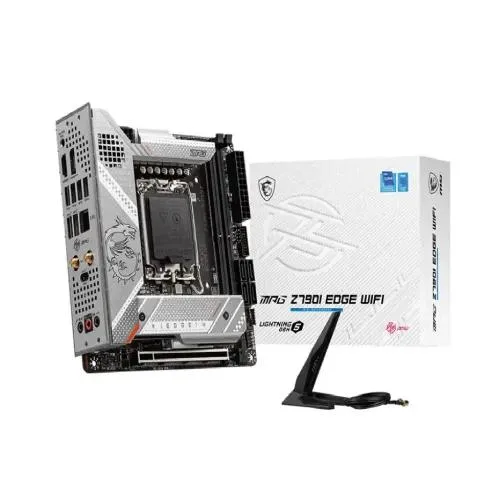

MSI MPG Z790I EDGE WIFI Mini-ITX Motherboard

The MSI MPG Z790I EDGE WIFI is a premium Mini-ITX motherboard designed for compact gaming PCs, high-performance workstations and enthusiast small-form-factor builds. Powered by the Intel Z790 chipset and equipped with an LGA 1700 socket, it supports Intel Core processors from the 12th, 13th and 14th generations, along with selected Pentium Gold and Celeron processors.

Despite its compact 170 × 170mm Mini-ITX footprint, the MPG Z790I EDGE WIFI delivers an impressive collection of enthusiast features, including DDR5 memory support up to 8000+MHz through overclocking, PCIe 5.0 graphics connectivity, three M.2 slots, 2.5Gbps LAN, Intel Wi-Fi 6E, Bluetooth 5.3 and high-speed USB connectivity. Its 12-layer PCB, direct 10+1+1 phase power design and enhanced cooling system make it particularly suitable for demanding compact gaming systems.

MSI Z790I EDGE WIFI for High-Performance Mini-ITX PCs

This motherboard is aimed at users who want desktop-class performance without building a large ATX computer. The Mini-ITX form factor allows powerful components to be installed inside compact cases, making it an excellent platform for space-conscious gaming PCs, portable workstations and premium small-form-factor builds.

The Z790 chipset provides an enthusiast-oriented platform for compatible Intel processors, while MSI's Core Boost and Memory Boost technologies are designed to support stable power delivery and high-speed memory operation.

Intel LGA 1700 Processor Support

The MSI MPG Z790I EDGE WIFI uses the LGA 1700 socket and supports Intel Core processors from the 12th, 13th and 14th generations. It also supports compatible Intel Pentium Gold and Celeron processors.

The direct 10+1+1 phase digital power design uses 105A Smart Power Stages to provide a robust foundation for high-performance CPUs. This makes the motherboard well suited to demanding gaming and productivity workloads when paired with an appropriate processor and cooling solution.

High-Speed DDR5 Memory

Two DDR5 DIMM slots support dual-channel memory operation, with a maximum supported capacity of 128GB. The motherboard supports Intel XMP 3.0 and memory frequencies up to 8000+MHz through overclocking, depending on the installed memory kit, processor and system configuration.

• 2 × DDR5 DIMM slots
• Dual-channel memory architecture
• Maximum memory capacity up to 128GB
• Intel XMP 3.0 support
• Memory speeds up to 8000+MHz OC
• Non-ECC unbuffered memory support

PCIe 5.0 Graphics Support

The motherboard includes one reinforced PCIe x16 expansion slot connected directly to the processor. It supports PCIe 5.0 at up to x16, providing substantial bandwidth for modern graphics cards.

MSI's PCIe Steel Armor construction helps reinforce the expansion slot, which is particularly useful when installing a large and heavy graphics card inside a compact gaming system.

Triple M.2 Storage Configuration

Storage flexibility is one of the major strengths of the MPG Z790I EDGE WIFI. The motherboard provides three M.2 connectors, allowing multiple NVMe drives to be installed without consuming the primary PCIe expansion slot.

• 2 × M.2 PCIe 4.0 x4 slots
• 1 × M.2 PCIe 3.0 x4 / SATA mode slot
• Support for 2280 M.2 devices
• 4 × SATA 6Gb/s ports
• RAID support for compatible SATA and M.2 storage configurations
• M.2 Shield Frozr thermal protection

This arrangement makes the board suitable for gaming systems that require fast operating-system storage, large game libraries and additional high-speed drives while maintaining a compact internal layout.

Fast 2.5Gbps Networking

An integrated Intel 2.5Gbps LAN controller provides high-speed wired networking for gaming, large file transfers, streaming and other bandwidth-intensive applications. Compared with conventional Gigabit Ethernet, the 2.5Gbps connection offers considerably more network bandwidth when paired with compatible networking equipment.

Intel Wi-Fi 6E and Bluetooth 5.3

The integrated Intel Wi-Fi 6E solution adds high-speed wireless connectivity across compatible 2.4GHz, 5GHz and 6GHz networks. The wireless system supports up to 2.4Gbps under supported conditions and includes MU-MIMO functionality.

Bluetooth 5.3 provides convenient wireless connectivity for compatible keyboards, mice, headphones, controllers and other peripherals. Availability of the 6GHz Wi-Fi band can depend on local regulatory requirements and compatible devices.

Lightning-Fast USB Connectivity

The MSI MPG Z790I EDGE WIFI provides a broad selection of high-speed USB connections despite its compact dimensions. Its USB 20Gbps Type-C connectivity is suitable for compatible external storage and other high-bandwidth peripherals.

Premium Audio with Audio Boost 5

The motherboard uses the Realtek ALC4080 audio codec with MSI Audio Boost 5 technology. Its 7.1-channel USB high-performance audio implementation supports up to 32-bit/384kHz playback through the front-panel audio connection, making it a strong option for gaming, entertainment and multimedia-focused builds.

Enhanced VRM and Thermal Design

Compact Mini-ITX boards have limited physical space, so effective power and thermal management is particularly important. MSI equips the MPG Z790I EDGE WIFI with a direct 10+1+1 phase power design, 105A Smart Power Stages, enlarged heatsinks, a heat-pipe and thermal pads designed for the MOSFET and choke areas.

The M.2 Shield Frozr system also helps manage heat around compatible NVMe storage devices, helping maintain consistent performance during demanding workloads.

12-Layer High-Quality PCB

The motherboard uses a 12-layer PCB constructed with server-grade materials and 2oz thickened copper. This design supports signal integrity and high-speed connectivity while providing a solid foundation for the board's PCIe, memory and storage interfaces.

MSI MPG Z790I EDGE WIFI Specifications

Ideal for Compact Gaming PCs

The MSI MPG Z790I EDGE WIFI is especially attractive for enthusiasts building a small-form-factor gaming computer. Its PCIe 5.0 x16 slot allows a powerful discrete GPU to be installed, while DDR5 memory and multiple NVMe connections provide the bandwidth needed for modern gaming platforms.

The combination of 2.5Gbps Ethernet, Wi-Fi 6E, Bluetooth 5.3 and high-speed USB also reduces the need for additional expansion hardware, helping preserve valuable space inside a compact chassis.

Suitable for Workstations and Creator Builds

Beyond gaming, the board can serve as the foundation for compact productivity systems used for software development, content creation, photo editing, video production and other demanding applications. Multiple M.2 connections make it possible to separate operating-system, application and project storage while retaining the Mini-ITX footprint.

What to Check Before Buying

• Confirm that your processor uses the LGA 1700 socket and is supported by the motherboard BIOS.
• Choose DDR5 memory rather than DDR4 because this motherboard uses DDR5 DIMM slots.
• Check Mini-ITX case compatibility before purchasing.
• Verify CPU cooler clearance because compact cases can have strict height limitations.
• Check graphics card length, thickness and power requirements when planning a small-form-factor build.
• For Wi-Fi 6E, ensure your router and region support the 6GHz band.
• Use a suitable power supply for the selected CPU and graphics card.

Why Buy MSI MPG Z790I EDGE WIFI from Unix Network?

Unix Network is a computer store in Jessore offering motherboards, processors, graphics cards, memory, storage and other PC components for gaming and professional systems. The MSI MPG Z790I EDGE WIFI is a suitable choice for customers who want a premium Mini-ITX platform without compromising high-speed connectivity or enthusiast-level features.

Customers in Jessore and surrounding areas can seek assistance with component selection and PC compatibility. Nationwide delivery is also available for customers across Bangladesh, subject to applicable delivery arrangements.

Frequently Asked Questions

Does the MSI MPG Z790I EDGE WIFI support 14th Gen Intel processors?

Yes. MSI lists support for Intel Core 14th, 13th and 12th Gen processors using the LGA 1700 platform.

How much RAM does the motherboard support?

The board has two DDR5 DIMM slots and supports up to 128GB of system memory.

Does this motherboard support DDR4 RAM?

No. The MPG Z790I EDGE WIFI is designed for DDR5 memory.

Does it have PCIe 5.0?

Yes. The primary PCIe x16 expansion slot supports PCIe 5.0 at up to x16.

How many M.2 SSDs can be installed?

The motherboard provides three M.2 connectors, including two PCIe 4.0 x4 connections and one PCIe 3.0 x4/SATA-mode connection.

Does the MSI Z790I EDGE WIFI have Wi-Fi?

Yes. It includes Intel Wi-Fi 6E with support for 2.4GHz, 5GHz and compatible 6GHz networks.

Does it support Bluetooth?

Yes. Bluetooth 5.3 is integrated into the wireless networking solution.

Is the MSI MPG Z790I EDGE WIFI suitable for gaming?

Yes. Its Z790 chipset, high-speed DDR5 support, PCIe 5.0 graphics slot, fast networking and enthusiast-oriented power design make it well suited to high-performance gaming PCs.

What type of case should be used with this motherboard?

It uses the Mini-ITX form factor with dimensions of 170 × 170mm, so it should be paired with a case that specifically supports Mini-ITX motherboards.

MSI MPG Z790I EDGE WIFI: Compact Size, Enthusiast Performance

The MSI MPG Z790I EDGE WIFI brings a powerful combination of Intel Z790 platform features into a compact Mini-ITX design. With DDR5 support up to 8000+MHz OC, PCIe 5.0 graphics connectivity, triple M.2 storage, 2.5Gbps Ethernet, Wi-Fi 6E, Bluetooth 5.3, USB 20Gbps and a robust 10+1+1 phase power design, it is built for premium small-form-factor computers.

For gamers, enthusiasts and professionals who want a compact PC without sacrificing modern connectivity and performance potential, the MPG Z790I EDGE WIFI is a strong Mini-ITX motherboard platform for a high-end Intel-based build.
