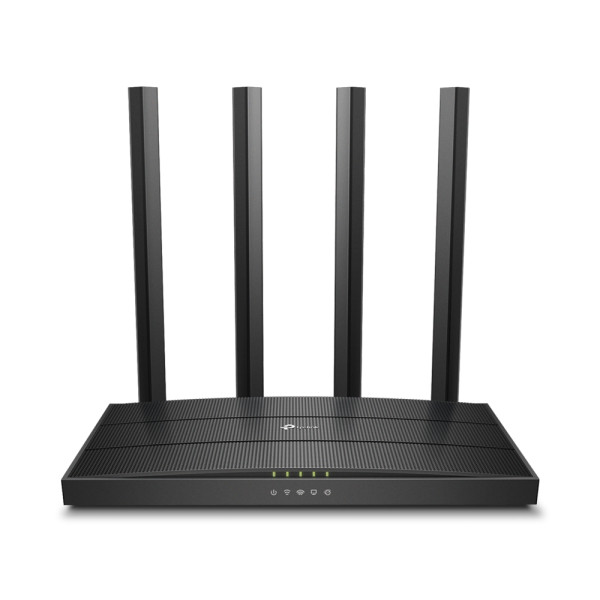

TP-Link Archer C6 AC1200 Wireless MU-MIMO Gigabit Route

BASIC INFORMATION
Dimensions	9.1 × 5.7 × 1.4 in (230 × 144 × 35 mm)
Encryption	WPA / WPA2,WPA-PSK/ WPA2-PSK encryption
Frequency	2.4GHz and 5GHz
Interface	4*10/100/1000Mbps LAN Ports, 1*10/100/1000Mbps WAN Port
Network Standard	2.4GHz guest network, 5GHz guest network
Wireless	Wireless Standards : IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz Wireless Functions : Enable/Disable Wireless Radio, WDS Bridge, WMM,Wireless Statistics Wireless Security : 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption
Button	Reset Button, Power On/Off Button, WPS/Wi-Fi On/Off Button
Physical Specification
Color	Black
POWER SOURCE
Power mode	12V/1A
WARRANTY
Manufacturing Warranty	01 year warranty

The TP-Link Archer C6 AC1200 Wireless MU-MIMO Gigabit Router is a dual-band Wi-Fi 5 router designed for homes, small offices and users who need dependable wireless connectivity alongside high-speed wired networking. It combines 2.4GHz and 5GHz Wi-Fi, MU-MIMO technology, Beamforming, Gigabit Ethernet ports and convenient network management through the TP-Link Tether app. The 5GHz band provides wireless speeds of up to 867Mbps, while the 2.4GHz band supports speeds of up to 300Mbps on the commonly listed Archer C6 configuration.

TP-Link Archer C6 AC1200 Wireless Gigabit Router

The Archer C6 is designed as an all-round networking solution for customers who want more than a basic single-band wireless router. Its dual-band design allows compatible devices to connect through either the 2.4GHz or 5GHz network according to their requirements. The 2.4GHz band is useful for broader coverage and everyday internet activities, while the faster 5GHz band is well suited to HD streaming, online gaming, large downloads and other bandwidth-intensive applications.

With AC1200-class wireless networking, the Archer C6 combines up to 867Mbps on 5GHz with up to 300Mbps on 2.4GHz. These are theoretical wireless link rates rather than guaranteed internet speeds. Actual performance depends on the connected device, distance, obstacles, wireless interference, ISP package, network traffic and other environmental factors.

Dual-Band Wi-Fi for Everyday and High-Bandwidth Use

One of the main advantages of the Archer C6 is its simultaneous dual-band capability. Instead of placing every wireless device on one frequency, users can distribute devices between the 2.4GHz and 5GHz networks.

The 2.4GHz band offers better penetration through walls and is suitable for general browsing, messaging, smart devices and other everyday connections. The 5GHz band normally offers higher wireless throughput over shorter distances and is particularly useful for compatible smartphones, laptops, smart TVs and gaming devices that need faster local wireless connectivity.

This makes the Archer C6 a practical choice for households where several different types of devices need internet access at the same time. Older 2.4GHz-only devices can continue using the 2.4GHz network while newer compatible devices take advantage of the 5GHz band.

MU-MIMO Technology

The Archer C6 supports MU-MIMO technology, allowing the router to communicate with multiple compatible clients more efficiently rather than treating every connected device as if it must wait for a single sequential transmission opportunity. TP-Link states that MU-MIMO can achieve up to twice the efficiency when communicating with supported devices.

This feature can be particularly useful in a busy home network. A typical household may have phones, laptops, televisions, gaming consoles, tablets and other connected equipment operating simultaneously. MU-MIMO can help the router use available wireless capacity more efficiently when the client devices also support the technology.

MU-MIMO should not be interpreted as automatically doubling the internet package speed. The benefit is related to wireless network efficiency and simultaneous communication, while actual performance depends on the entire network environment.

Beamforming for Better Wireless Coverage

TP-Link equips the Archer C6 with Beamforming technology. Instead of distributing wireless energy without considering where connected devices are located, Beamforming helps concentrate wireless signal towards compatible client devices.

The router uses four external antennas and Beamforming to improve the way wireless coverage is directed around the home. This can help provide a more useful connection across different rooms, although the real coverage area depends heavily on building construction, walls, floors, interference, router placement and client device capability.

For best results, the router should generally be placed in a reasonably central and open location rather than hidden inside a cabinet or positioned immediately beside large electrical appliances.

Gigabit Ethernet Connectivity

The Archer C6 provides one Gigabit WAN port and four Gigabit LAN ports. This allows compatible wired devices to communicate with the router at Gigabit Ethernet link speeds and makes the router suitable for internet connections and local networking where Gigabit Ethernet is beneficial.

The WAN port is used for the incoming connection from a modem, ONT or other upstream networking equipment, while the four LAN ports can connect desktop computers, gaming consoles, smart TVs, network storage devices and other wired equipment.

Gigabit Ethernet is particularly useful when transferring files across a local network or when an internet service package is fast enough to benefit from a Gigabit-class WAN connection. Actual internet speed remains dependent on the ISP and the equipment connected to the network.

Wi-Fi 5 AC1200 Performance

The Archer C6 uses the IEEE 802.11ac Wi-Fi standard on the 5GHz band and IEEE 802.11n/b/g standards on 2.4GHz. The AC1200 classification represents the combined theoretical wireless link capacity of the two bands rather than the speed available to one individual device.

For customers upgrading from an older single-band router, the move to dual-band Wi-Fi can provide a noticeable improvement in network flexibility. Compatible devices can use the 5GHz band when higher wireless throughput is required, while 2.4GHz remains available for devices that prioritise range or compatibility.

Access Point Mode

The Archer C6 can also operate in Access Point mode. This allows it to take an existing wired network connection and provide wireless connectivity for nearby devices.

Access Point mode can be useful when another router is already handling the main internet connection but additional Wi-Fi coverage is required elsewhere in a home, office, shop or other premises. It provides an alternative to replacing the existing primary router simply to improve wireless access in another area.

EasyMesh Compatibility

Current Archer C6 versions listed by TP-Link Bangladesh include EasyMesh compatibility, allowing the router to participate in an EasyMesh network with compatible devices. This can be useful for expanding Wi-Fi coverage into areas where a single router cannot provide satisfactory signal strength.

In a suitable EasyMesh setup, compatible networking devices can work together to provide broader coverage and roaming under a unified wireless network. Compatibility can depend on the specific hardware version and firmware, so users should check the exact Archer C6 hardware revision before planning a mesh installation.

TP-Link Tether App

Network management is made easier through the TP-Link Tether app. The app is designed to help users configure and manage supported TP-Link networking products from a compatible Android or iOS device.

This can be convenient for home users who do not want to rely exclusively on a computer for routine router configuration. Depending on the supported firmware and router version, users can manage network settings and monitor important aspects of their home network through the management interface.

Network Security

Security is an important consideration when choosing a wireless router because the router is the main gateway between local devices and the internet. The Archer C6 provides features including SPI firewall, access control and IP & MAC binding. Current V6 specifications also list WPA, WPA2 and WPA3 wireless encryption support.

WPA3 can provide stronger wireless security when supported by both the router and client devices. Older devices that do not support newer encryption standards may require compatible security settings. Users should also create a strong, unique Wi-Fi password and keep the router firmware updated where appropriate.

Guest Network

The Archer C6 supports separate guest networking on both 2.4GHz and 5GHz bands in current specifications. A guest network is useful when visitors need internet access but should not be given the same wireless network used by the household's primary devices.

For small offices and shops, guest Wi-Fi can also be useful for customers or visitors while keeping staff computers and other important devices on a separate network. The exact level of network isolation depends on the router configuration and the connected network design.

VPN Features

Current Archer C6 V6 specifications list VPN server support for OpenVPN, PPTP and WireGuard, as well as VPN client support for these protocols. VPN functionality can vary between hardware revisions and firmware versions, so buyers should confirm the capabilities of their specific version when VPN support is a primary requirement.

VPN features can be useful for users who need secure remote access or want to route network traffic through a VPN service. However, VPN performance is influenced by encryption workload, internet speed, server location, protocol and the capabilities of the connected devices.

Parental Controls and Access Management

The Archer C6 provides parental-control features including URL filtering and time controls. These options can help households manage when certain devices are permitted to access the network or restrict access to selected web destinations.

These features can be useful for parents managing children's internet access, as well as for basic network-use policies in small environments. More advanced business networks may require dedicated firewall, content-filtering or network-management equipment.

Quality of Service

The router supports Quality of Service by device. QoS can be useful when several devices are sharing a connection and one or more activities are consuming substantial bandwidth.

For example, a household may have a television streaming video, a computer downloading files and several smartphones connected simultaneously. Device-based QoS can help users prioritise important devices or applications according to their network requirements, although it cannot increase the total bandwidth provided by the ISP.

IPTV and Network Features

The Archer C6 supports features including IGMP Proxy, IGMP Snooping, Bridge and Tag VLAN according to TP-Link's specifications. These capabilities can be relevant to certain ISP and IPTV configurations.

ISP requirements vary significantly, so users should confirm the required WAN type, VLAN configuration and IPTV settings with their internet service provider before installation. The router supports common WAN types including Dynamic IP, Static IP and PPPoE, with additional PPTP and L2TP options listed by TP-Link.

Reliable Wired Networking for PCs and Smart Devices

Although the Archer C6 is primarily a wireless router, its four Gigabit LAN ports make it suitable for wired networking as well. A desktop PC, smart TV, game console or network storage device can be connected directly to the router through Ethernet when a stable wired connection is preferred.

Wired Ethernet can be particularly useful for stationary devices. Gaming PCs and desktop workstations, for example, can benefit from a direct LAN connection where running an Ethernet cable is practical. This can reduce dependence on wireless signal strength and interference.

Suitable for Home Internet Connections

The Archer C6 is a strong fit for households that use several internet-connected devices. A typical modern home may have smartphones, laptops, televisions, tablets, gaming consoles, printers and smart devices all connected to the same network.

Its dual-band design gives users greater flexibility when distributing these devices. Less demanding devices can remain on 2.4GHz, while compatible high-throughput devices can use 5GHz.

Suitable for Small Offices and Shops

Small offices, retail shops and home-based businesses can also use the Archer C6 as a basic wireless networking solution. Gigabit LAN ports are useful for wired computers and other fixed equipment, while dual-band Wi-Fi provides connectivity for mobile devices.

Businesses with more demanding requirements, many users, multiple departments or advanced security policies may eventually require a dedicated business-class networking solution. For a straightforward small network, however, the Archer C6 provides a useful combination of wireless and wired features.

Gaming and Streaming

The 5GHz wireless band and Gigabit Ethernet connectivity make the Archer C6 suitable for gaming and streaming when paired with a suitable internet connection and compatible client devices. TP-Link specifically positions the 5GHz band for HD streaming and online gaming.

For competitive gaming, Ethernet is generally preferable where possible because a wired connection avoids many of the variables associated with wireless interference. When wireless gaming is necessary, using the 5GHz network within a reasonable range of the router can provide a suitable connection for many home environments.

Streaming performance also depends on the streaming service, internet subscription, client device and network congestion. The router itself cannot guarantee a particular streaming quality or latency.

Important Things to Consider Before Buying

• Check the exact Archer C6 hardware version because specifications and supported features can vary between revisions.
• AC1200 is a theoretical combined wireless classification, not a guaranteed internet speed.
• Actual Wi-Fi coverage depends on walls, interference, placement and connected devices.
• 5GHz normally offers higher throughput but generally has shorter practical range than 2.4GHz.
• MU-MIMO benefits are most useful when compatible client devices also support MU-MIMO.
• For the best gaming latency on stationary devices, consider using Gigabit Ethernet.
• Confirm your ISP's required WAN type and VLAN settings before installation.
• Check EasyMesh or OneMesh support for the specific hardware revision if you plan to expand the network.

TP-Link Archer C6 Specifications

Specification	Details
Brand	TP-Link
Model	Archer C6
Wireless Standard	Wi-Fi 5, IEEE 802.11ac/n/a 5GHz, IEEE 802.11n/b/g 2.4GHz
Wireless Class	AC1200
5GHz Speed	Up to 867Mbps
2.4GHz Speed	Up to 300Mbps on the listed Bangladesh configuration
Antennas	4 fixed external high-performance antennas
Beamforming	Supported
MU-MIMO	Supported
Working Modes	Router Mode, Access Point Mode
WAN Port	1 x Gigabit WAN
LAN Ports	4 x Gigabit LAN
Guest Network	2.4GHz and 5GHz
Security	SPI Firewall, Access Control, IP & MAC Binding
Wi-Fi Encryption	WPA, WPA2, WPA3 depending on hardware/firmware version
VPN Server	OpenVPN, PPTP, WireGuard on supported current versions
VPN Client	OpenVPN, PPTP, WireGuard on supported current versions
Parental Controls	URL Filtering, Time Controls
QoS	QoS by Device
Management	TP-Link Tether App and Web Interface
WAN Types	Dynamic IP, Static IP, PPPoE, PPTP, L2TP
IP Protocol	IPv4, IPv6
Power	12V / 1A
Dimensions	215 × 117 × 32mm on the current V6 specification

Wi-Fi Router Placement Tips

Correct placement can make a significant difference to the performance of any wireless router. The Archer C6 should ideally be positioned in a central location relative to the areas where Wi-Fi is needed. Keeping the router elevated and away from unnecessary physical obstructions can also help.

Large concrete walls, metal objects, multiple floors and electrical interference can reduce wireless performance. If a property has several floors or difficult dead zones, an EasyMesh-compatible expansion setup may be worth considering where the exact Archer C6 hardware revision supports the required feature.

Why Buy TP-Link Archer C6 from Unix Network?

Unix Network is a computer and networking equipment retailer in Jessore, Jashore, Bangladesh, serving customers who need routers, networking products, computers, laptops, accessories and other technology solutions.

Choosing the right router is not only about comparing the AC1200 label. The correct solution depends on your internet package, number of connected devices, house or office size, wired networking requirements and whether you need features such as Access Point operation, mesh expansion or VPN functionality.

Unix Network can help customers select suitable networking equipment according to their practical requirements. Customers in Jessore can visit the local showroom for product guidance, while customers across Bangladesh can order networking equipment for nationwide delivery subject to applicable delivery terms.

After-Sales Technical Support

Router installation can involve several configuration steps, including WAN settings, Wi-Fi security, network names, passwords and ISP-specific requirements. Proper configuration can help ensure that the available hardware is used effectively.

Unix Network provides technical guidance and after-sales support for networking products, helping customers understand basic setup and compatibility requirements. For more complex networks involving multiple routers, VLANs, mesh systems or business-grade security, the network design should be planned according to the specific environment.

Frequently Asked Questions

What is the TP-Link Archer C6?

The TP-Link Archer C6 is an AC1200 dual-band Wi-Fi 5 wireless router with MU-MIMO, Beamforming, Gigabit WAN/LAN connectivity and support for Router and Access Point modes.

What Wi-Fi speed does the Archer C6 provide?

The commonly listed Archer C6 configuration provides up to 867Mbps on 5GHz and up to 300Mbps on 2.4GHz. These are theoretical wireless link speeds and actual performance will vary according to network conditions and client devices.

Does TP-Link Archer C6 have Gigabit ports?

Yes. It provides one Gigabit WAN port and four Gigabit LAN ports, allowing compatible wired devices to connect through Gigabit Ethernet.

Does Archer C6 support MU-MIMO?

Yes. MU-MIMO is one of the Archer C6's key wireless features and is designed to improve efficiency when communicating with multiple compatible devices.

Does Archer C6 support 5GHz Wi-Fi?

Yes. The router supports a 5GHz Wi-Fi band with a theoretical wireless speed of up to 867Mbps on the listed configuration.

Can Archer C6 be used as an Access Point?

Yes. Access Point mode allows the Archer C6 to provide Wi-Fi connectivity from an existing wired network.

Does Archer C6 support mesh networking?

Current TP-Link Bangladesh specifications list EasyMesh compatibility for the Archer C6 V6. Other hardware revisions may have different mesh features, so the exact version should be checked before purchase.

Is Archer C6 good for gaming?

It can be suitable for home gaming networks, particularly when gaming devices use the 5GHz band or a direct Gigabit Ethernet connection. Actual ping and gaming performance depend heavily on the ISP, server location, network congestion and connection method.

Is Archer C6 suitable for a home?

Yes. Its dual-band wireless connectivity, multiple Gigabit LAN ports, MU-MIMO and Beamforming make it suitable for many homes with multiple connected devices.

Can I use Archer C6 with a fibre internet connection?

Yes, when the fibre connection is provided through an ONT or other Ethernet-capable upstream device. The Archer C6's WAN port can accept a compatible Ethernet connection, while the required internet configuration depends on the ISP.

Conclusion

The TP-Link Archer C6 AC1200 Wireless MU-MIMO Gigabit Router is a versatile dual-band networking solution for homes, small offices and everyday internet users. Its combination of 5GHz and 2.4GHz Wi-Fi, MU-MIMO, Beamforming, four Gigabit LAN ports, a Gigabit WAN port and Access Point functionality makes it suitable for a wide range of networking requirements.

For customers in Jessore and throughout Bangladesh looking for a dependable AC1200 router with both wireless and wired connectivity, the Archer C6 is a practical option. Before purchasing, confirm the exact hardware version and the features required for your network, particularly if EasyMesh, WPA3 or VPN functionality is important to your setup.
