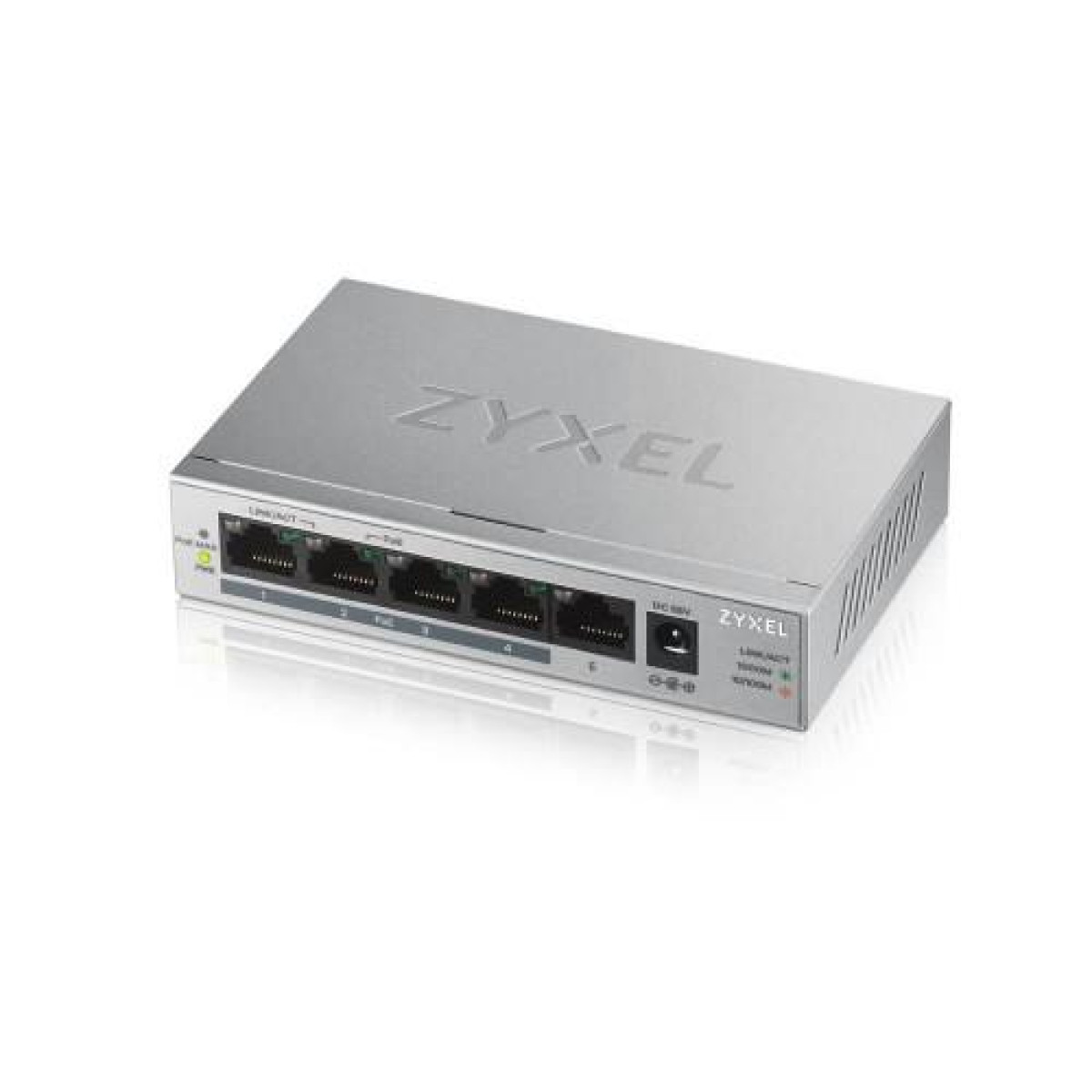

Zyxel GS1005HP 5 Port GbE Unmanaged Gigabit PoE Switch (60W)
- Brand:Zyxel
- Product Code: Zyxel GS1005HP 5 Port GbE Unmanaged Gigabit PoE Switch (60W)
- Availability:In Stock
- Updated:
৳6,500
Specification
| BASIC INFORMATION | |
| Interface | 5 RJ-45 10/100/1000 Mbps Ethernet ports with auto MDI/MDIX support |
|---|---|
| Network Standard | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3 Nway auto-negotiation IEEE 802.3x full duplex operation and flow control IEEE 802.3az Energy Efficient Ethernet |
| Power Supply | AC-to-DC external power adapter Input: 100-240 V AC Output: 55V DC/1.3A |
| LED | LED Indicator PWR: Power PoE MAX: Amber: PoE power output over 50W (total budget 60W) Per-port: Link/Activity Amber: 10/100 Mbps Green: 1000 Mbps Port1- Port4: PoE+ Green: PoE supported |
| Environment | Operating Environment -Temperature: 0°C to 40°C (32°F to 104°F) -Humidity: 10% to 90% (Non-condensing) Storage Environment -Temperature: -40°C to 70°C (-40°F to 158°F) -Humidity: 10% to 90% (Non-condensing) |
| MAC Address Table | 2 K |
| Main Features | |
| Port | 5 x 10/100/1000 (PoE+) |
| Memory Specifications | |
| Type | Unmanaged PoE Switch |
| PHYSICAL SPECIFICATION | |
| Weight | 235g (0.52 lb.) |
Description
Introduction
The Zyxel GS1005HP 5 Port GbE Unmanaged Gigabit PoE Switch (60W) is an ideal choice for small to medium-sized businesses and home office environments seeking a reliable, plug-and-play network expansion solution. This unmanaged switch provides five gigabit Ethernet (GbE) ports, four of which offer Power over Ethernet (PoE+) capabilities. With a total PoE budget of 60 watts, it efficiently powers devices such as IP cameras, VoIP phones, and wireless access points without additional cabling or electrical outlets. Offering a robust yet straightforward network solution, the GS1005HP ensures optimal data transfer speeds, minimal latency, and easy scalability for growing networks.
People Also Ask (PAA) Section
What is the Zyxel GS1005HP switch used for?
The Zyxel GS1005HP is used to connect multiple Ethernet devices in a local network while providing power to PoE-enabled devices, like IP cameras and VoIP phones, through the Ethernet cable. This makes it perfect for small business offices, retail spaces, and home setups where network expansion and device management are key.
How much power does each PoE port on the GS1005HP supply?
Each PoE+ port on the GS1005HP switch can supply up to 30W of power. With four PoE+ ports available and a total power budget of 60W, it can handle multiple devices simultaneously, depending on their power needs.
Is the Zyxel GS1005HP managed or unmanaged?
The GS1005HP is an unmanaged switch, meaning it’s designed for simple, plug-and-play operation without the need for configuration. This is ideal for users who need straightforward network expansion without the complexity of management software.
Does the Zyxel GS1005HP support Gigabit speeds?
Yes, the GS1005HP switch supports gigabit Ethernet speeds on all five ports. This allows for high-speed data transfer, which is essential for applications that require a stable and fast connection, like HD video streaming and online gaming.
Can the GS1005HP handle multiple PoE devices at once?
Yes, the Zyxel GS1005HP can power multiple PoE devices at the same time, provided that the total power consumption doesn’t exceed its 60W PoE budget. This feature is ideal for offices and security setups where multiple powered devices are necessary.
Use Cases and Benefits
Small Business Network Expansion: Small offices and retail environments benefit from the GS1005HP’s reliable network expansion and PoE+ capabilities. Employees can connect workstations, IP phones, and security cameras without overloading power outlets or investing in separate PoE injectors.
Home Office Setup: For professionals working remotely, the GS1005HP allows for a quick and organized home network setup, reducing clutter and centralizing devices like VoIP phones, Wi-Fi access points, and smart home cameras.
IP Surveillance Solutions: The switch is well-suited for surveillance setups with multiple IP cameras. Since each port supports gigabit speeds, video feeds are transferred smoothly, reducing the risk of lag or delays in live security monitoring.
Flexible Wi-Fi Coverage: For businesses or homes needing extended Wi-Fi coverage, the GS1005HP can connect multiple access points. Its PoE+ capability eliminates the need for additional power sources, simplifying installation and allowing for flexible positioning of access points.
Competitive Advantages
The Zyxel GS1005HP 5 Port GbE Unmanaged Gigabit PoE Switch (60W) stands out in the market with its combination of PoE+ support, high gigabit speed, and a compact, fanless design. Compared to competitors, the GS1005HP provides a balanced PoE power budget of 60W, which is often sufficient for typical small-business needs, unlike some switches with higher budgets that may go unused. Its silent operation and ease of installation give it an edge for users prioritizing low-maintenance, cost-effective network solutions.
