Key highlights
- Form Factor: mATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
- Raid controller: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
- Supported CPU: Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Chipset: Intel B760 Chipset
- Slots: 2 x DIMM
Description

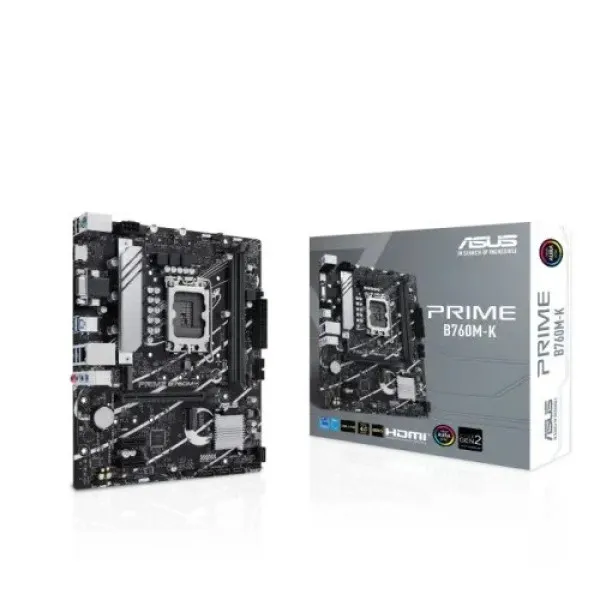

Upgrade Your PC with Asus PRIME B760M-K Motherboard
Asus PRIME B760M-K mATX Motherboard: Elevate Your Computing Experience
The Asus PRIME B760M-K mATX Motherboard is engineered for the modern user, combining cutting-edge technology with user-friendly features that cater to both casual and professional computing needs. This motherboard is designed to support Intel's latest processors, making it an ideal choice for gamers, content creators, and general users seeking reliable performance and stability. With its robust features and expansion capabilities, the PRIME B760M-K provides a seamless experience for all your computing tasks.
Key Features: The motherboard boasts an LGA 1700 socket compatible with Intel 12th and 13th Gen processors, delivering exceptional performance with enhanced power delivery systems and optimized thermal management. Its Micro ATX form factor allows for easy installation in compact cases, making it perfect for users with space constraints. Additionally, the motherboard supports up to 128GB of DDR4 RAM, enabling multitasking and smooth operation of demanding applications.
One of the standout features of the PRIME B760M-K is its extensive connectivity options. Users can enjoy multiple USB 3.2 Gen 1 and Gen 2 ports, HDMI and DisplayPort outputs for high-resolution displays, and M.2 slots for ultra-fast SSD performance. This versatility ensures that whether you're gaming, streaming, or working on intensive projects, your motherboard can handle it all.
Benefits and Use Cases: The Asus PRIME B760M-K is perfect for gamers looking to build a budget-friendly yet powerful gaming rig, content creators who need reliable performance for video editing and graphic design, and general users seeking a dependable platform for daily tasks. Its exceptional build quality and performance metrics make it a wise investment for anyone looking to future-proof their system.
Choosing the PRIME B760M-K means opting for a motherboard that not only meets your current needs but also adapts to future technological advancements. With Asus' commitment to quality and innovation, you can rest assured that this motherboard will deliver reliable performance for years to come.
Explore the Features of Asus PRIME B760M-K Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | mATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm) |
| Raid controller | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Supported CPU | Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel B760 Chipset |
| Slots | 2 x DIMM |
| Audio | 3 x Audio jacks |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Connectivity | |
| VGA | 1 x VGA port |
| Expansion Slots | |
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel B760 Chipset 2 x PCIe 4.0 x1 slots |
| Graphics Specifications | |
| Graphics | 1 x VGA port 1 x HDMI port |
| Memory Specifications | |
| Maximum Memory | Max. 64GB |
| Supported Memory | DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI port |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| USB (s) | Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A） Front USB (Total 5 ports) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports |
| Special | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert - Power Saving AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Special Feature | Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - VRM heatsink design Aura Sync - Aura RGB header - Addressable Gen 2 headers |
| WARRANTY | |
| Manufacturing Warranty | 3 years warranty |
